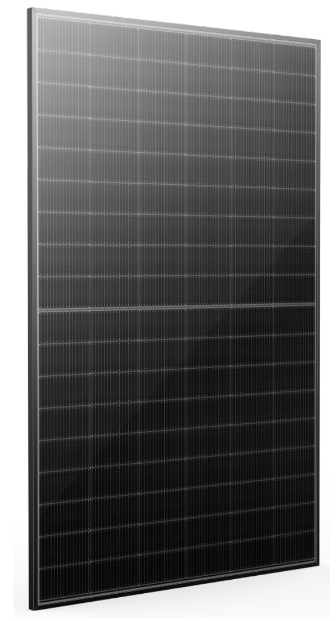

Risen Energy RSM108-9-435BNDG 435W N-Type TOPCon Dual-Glass Solar Panel
The RSM108-9-435BNDG is a high-efficiency 435W n-type TOPCon solar module engineered for residential and light commercial applications where performance, durability, and long-term energy yield matter. Built with dual-glass construction and advanced TOPCon cell technology, this module delivers strong output, excellent weak-light performance, and enhanced resistance to common degradation mechanisms.
With a compact 108-cell format and up to 22.5% module efficiency, the RSM108-9-435BNDG is well-suited for space-constrained rooftops while supporting modern high-voltage system designs up to 1500 VDC.
Key Benefits
High-Efficiency Output
Delivers 435W rated power with up to 22.3–22.5% efficiency, helping maximize energy production per square foot.
N-Type TOPCon Cell Technology
N-type TOPCon cells offer improved performance stability, reduced degradation, and strong long-term energy yield compared to traditional p-type modules.
Dual-Glass Construction
Heat-strengthened front and rear glass enhance mechanical strength, moisture resistance, and long-term durability.
Excellent Temperature Performance
A low temperature coefficient of -0.29%/°C (Pmax) helps maintain output in hot operating conditions.
Positive Power Tolerance
Rated at 0 to +3%, ensuring modules meet or exceed nameplate output at installation.
Electrical Specifications (STC)
| Specification | Value |
|---|---|
| Rated Power | 435 W |
| Module Efficiency | ~22.3–22.5% |
| Open Circuit Voltage (Voc) | 39.46 V |
| Short Circuit Current (Isc) | 13.12 A |
| Voltage at Max Power (Vmpp) | 33.18 V |
| Current at Max Power (Impp) | 14.01 A |
| Maximum System Voltage | 1500 VDC |
| Power Tolerance | 0 ~ +3% |
Mechanical Specifications
| Specification | Value |
|---|---|
| Cell Technology | N-Type TOPCon |
| Cell Configuration | 108 cells (6×9 + 6×9) |
| Module Dimensions | 1722 × 1134 × 30 mm |
| Frame | Anodized Aluminum Alloy (Black) |
| Glass | Dual Heat-Strengthened Glass |
| Junction Box | IP68, 1500VDC, 3 bypass diodes |
| Connector | Risen Twinsel PV-SY02, IP68 |
| Cables | 4.0 mm², ±1200 mm |
Temperature & Operating Ratings
| Specification | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.046% / °C |
| Nominal Module Operating Temp (NMOT) | 44°C ±2°C |
| Max Series Fuse Rating | 30 A |
Applications
-
Residential rooftop solar
-
High-efficiency home solar systems
-
Light commercial installations
-
Projects requiring dual-glass durability
Why We Like It
This panel strikes a strong balance between high efficiency, compact form factor, dual-glass durability, and modern n-type technology, making it a solid option for customers focused on long-term performance and reliability.
