Solis 10.0kW 1P10K-HVES-5G-SPRT Single Phase Dual MPPT Inverter
RHI-1P10K-HVES-5G-SPRT
Specifications

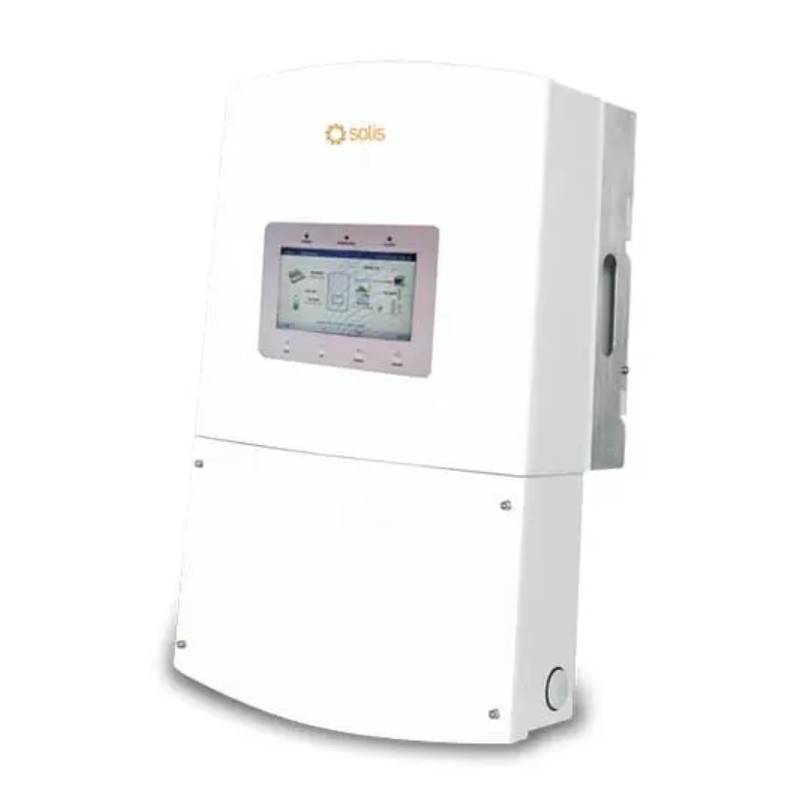

Solis RHI-1P10K-HVES-5G-SPRT 10.0kW Single Phase Dual MPPT Inverter
Key Features
- 10kW Hybrid Inverter – Provides grid-tied and off-grid functionality with high efficiency.
- 98.0% Maximum Efficiency – Delivers 97.5% CEC efficiency for superior performance.
- Dual MPPTs with 4 DC Inputs – Supports multiple PV string configurations for better optimization.
- 3 Operating Modes – Self-consumption, time-of-use, and off-grid backup for flexible energy management.
- High DC-to-AC Ratio (1.4) – Enables higher solar power generation than conventional inverters.
- Rapid Shutdown Integration – Compliant with NEC 2017-2020 with built-in SunSpec MLRSD or Tigo transmitter.
- Battery Compatibility – Works with BYD B-Box H and LG Energy Solutions RESU10H high-voltage Li-Ion batteries.
- Sealed Enclosure (Type 4X) – Ensures protection against dust, water, and harsh environments.
- AFCI Protection – Reduces fire risk by detecting and mitigating DC arc faults.
- Integrated ATS (Automatic Transfer Switch) – Ensures seamless transition to backup power in less than 10ms.
- 24-Hour Intelligent Energy Management – Monitors power usage and optimizes system performance.
Best Applications
Residential Energy Storage – Ideal for homeowners seeking solar power backup and self-consumption.
Time-of-Use Optimization – Maximizes savings by storing excess solar energy for peak-hour usage.
Off-Grid & Backup Power – Provides reliable backup during grid outages with fast switching.
Special Technology
The Solis RHI-1P10K-HVES-5G-SPRT integrates dynamic MPPT tracking and intelligent energy management, allowing it to maximize solar energy utilization. It features built-in communication options (RS485, Wi-Fi, and cellular connectivity) for remote monitoring and real-time performance tracking.
About Solis
Solis is a global leader in solar inverter technology, providing high-performance hybrid and grid-tied inverters with advanced energy management solutions. Known for high efficiency, reliability, and compliance with international safety standards, Solis products are trusted worldwide for residential and commercial applications.
Specifications
| Parameter | Value |
|---|---|
| Model Number | RHI-1P10K-HVES-5G-SPRT |
| Recommended PV Power | 14 kW |
| Max Input Voltage (DC) | 500V |
| Rated Voltage | 330V |
| MPPT Voltage Range | 90-450V |
| Max Input Current | 26A / 26A |
| Battery Type | Li-Ion (BYD, LG Energy Solutions) |
| Battery Voltage Range | 120-500V |
| Max Charge/Discharge Power | 7 kW |
| Max Charge/Discharge Current | 20A |
| AC Output (Backup) | 6 kW (Rated), 7 kW (Surge) |
| Backup Switch Time | <10ms (with ATR: <300ms) |
| Grid Voltage | 208V / 240V |
| Grid Frequency | 60Hz |
| Max Efficiency | 98.0% |
| CEC Efficiency | 97.5% |
| Power Factor | >0.99 (0.8 leading to 0.8 lagging) |
| THD (Total Harmonic Distortion) | <3% |
| Dimensions (W × H × D) | 21.3 × 28.3 × 9.8 in |
| Weight | 62.6 lbs |
| Ingress Protection | TYPE 4X (Sealed Enclosure) |
| Cooling Concept | Natural Convection |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
