REGITEC 550W (Pallet of 31) Monocrystalline 182mm 144 Cells Solar Panel RMH72-550S1
REGITEC 550W (Pallet of 31) Monocrystalline 182mm 144 Cells Solar Panel RMH72-550S1
REGITEC 550W (Pallet of 31) Monocrystalline 182mm 144 Cells Solar Panel RMH72-550S1
REGITEC 550W (Pallet of 31) Monocrystalline 182mm 144 Cells Solar Panel RMH72-550S1
We offer multiple secure payment options for your convenience
REGITEC 550W (Pallet of 31) Monocrystalline 182mm 144 Cells Solar Panel RMH72-550S1
RMH72-550S1
REGITEC 550W (Pallet of 31) Monocrystalline 182mm 144 Cells Solar Panel RMH72-550S1

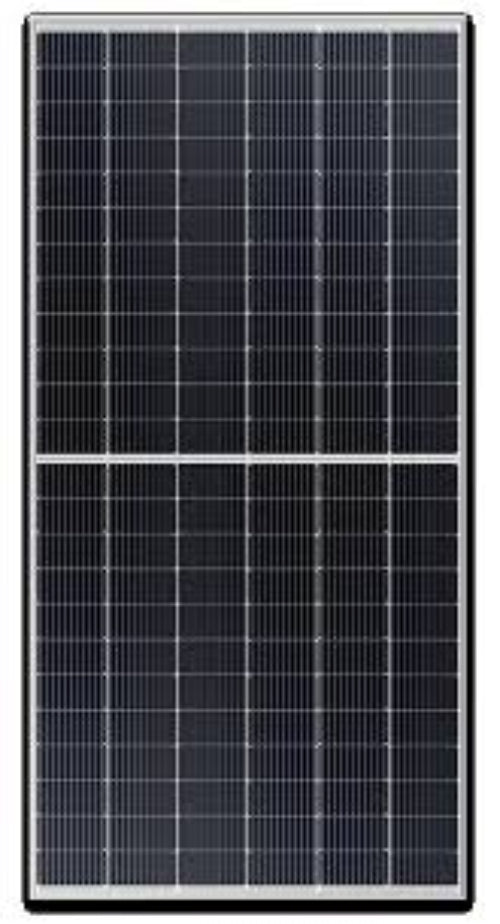

The REGITEC RMH72-550S1 is a 550 W mono PERC 144 half-cell module built on 182 mm wafers. With a high 21.3% module efficiency, 1500 V DC system rating, and robust 3.2 mm tempered glass with an anodized aluminum alloy frame, it’s engineered for dependable energy yield and long service life in commercial and large residential arrays.
Key Benefits
High Output: 550 W STC with 21.3% module efficiency for dense layouts.
Quality & Reliability: 100% inspection, Anti-PID/Anti-LID, IP68 junction box, and MC4-compatible connectors.
Lower BOS Costs: 1500 V DC system voltage enables longer strings.
Extended Warranty: 25-year product and 30-year linear power warranty.
Special Technology
182 mm Half-Cell Design: 144 (2×72) mono half-cells reduce resistive losses and enhance shade tolerance.
AR-Coated Glass: 3.2 mm low-iron tempered glass with anti-reflective coating improves low-light performance.
Warranty
25-Year Product Warranty · 30-Year Linear Performance Warranty.
Best Uses
Commercial & Utility DG: Carports, flat roofs, and ground mounts seeking low LCOE.
Large Residential: High-power module where roof area is limited.
Specifications Table
| Specification | Data |
|---|---|
| Model | RMH72-550S1 |
| Cell / Layout | Monocrystalline 182 mm · 144 half-cells (2×72) |
| Rated Power (STC) | 550 W |
| Module Efficiency | 21.3% |
| Open-Circuit Voltage (Voc) | 49.90 V |
| Short-Circuit Current (Isc) | 14.00 A |
| Voltage at Pmax (Vmp) | 41.96 V |
| Current at Pmax (Imp) | 13.11 A |
| Power Tolerance | 0 to +4.99 W |
| Max System Voltage | 1500 Vdc (IEC/UL) |
| Max Series Fuse | 25 A |
| Front Glass | 3.2 mm low-iron tempered, AR-coated |
| Frame | Anodized aluminum alloy (black frame option available) |
| Backsheet | Polymer backsheet (black backsheet option available) |
| Junction Box / Connector | IP68 / MC4-compatible |
| Leads | 4.0 mm²; 1200 mm (+) / 1200 mm (−) (customizable) |
| Mechanical Load | Front 5400 Pa; Rear 2400 Pa |
| Dimensions (L × W × H) | 89.72 × 44.65 × 1.38 in |
| Weight | 63.05 lb |
| Operating Temperature | −40 to +85 °C |
| NOCT | 45 ± 2 °C |
| Temp. Coef. (Pmax / Voc / Isc) | −0.350%/°C · −0.275%/°C · +0.045%/°C |
| Packing | 31 pcs/pallet; 620 pcs/40'HQ |
| Certifications | ISO 9001, ISO 14001, OHSAS 18001 |
| Warranty | 25-Year Product · 30-Year Linear Power |
About REGITEC:
REGITEC specializes in advanced energy and technology solutions, delivering reliable products for solar, storage, and power management. Focused on quality and innovation, REGITEC supports sustainable growth by providing efficient, durable, and cost-effective solutions for residential, commercial, and industrial applications.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the RMH72-550S1 panel?
The RMH72-550S1 panel produces 550 watts of power, making it a highly efficient choice for both residential and commercial installations.
Q: Are RMH72-550S1 panels suitable for areas with low sunlight?
Yes, RMH72-550S1 panels are designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and early mornings or late afternoons.
Q: What kind of warranty does JinkoSolar offer for the RMH72-550S1 panel?
JinkoSolar offers a 25-year product warranty and a 30-year linear power output warranty, ensuring the panel delivers reliable performance over time.
Q: Are these panels compatible with different mounting systems?
Yes, RMH72-550S1 panels are compatible with a wide variety of standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted systems.
Q: How durable are RMH72-550S1 panels in harsh weather conditions?
The RMH72-550S1 panels are built to withstand extreme weather, including heavy snow, strong winds, and high heat. Their design also includes anti-reflective glass, which enhances their durability and efficiency.
Q: Can RMH72-550S1 panels help me save on energy costs?
Absolutely! The high efficiency of the RMH72-550S1 panel allows you to generate more electricity per square foot, which can reduce your energy bills and shorten the payback period on your solar investment.
Q: How many panels do I need for my home?
This depends on your energy usage and available space. As a general guide, for a residence or business using about 10,000 kWh/year, you would need approximately 18–20 RMH72-550S1 panels. Consult with a certified installer to get a precise estimate.
Q: How many panels are in each pallet?
Each pallet includes 31 high-efficiency RMH72-550S1 panels. By purchasing full pallets, you ensure both value and convenience for larger installations.
