REGITEC 430W (Pallet of 31) TOPCon All Black Glass Bifacial RMHT54-430AB2 BOB
RMHT54-430AB2 BOB
REGITEC 430W (Pallet of 31) TOPCon All Black Glass Bifacial RMHT54-430AB2 BOB

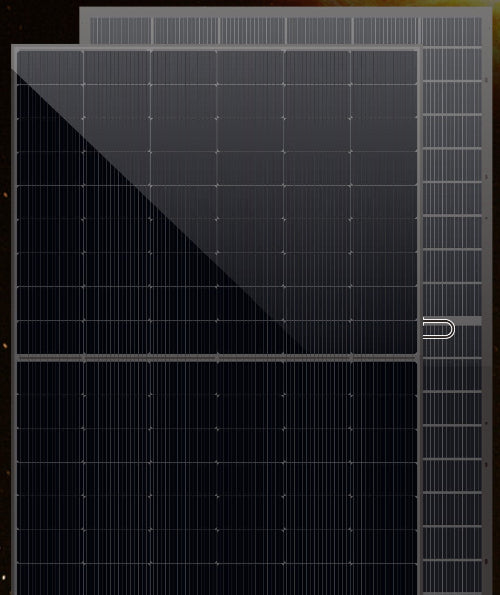

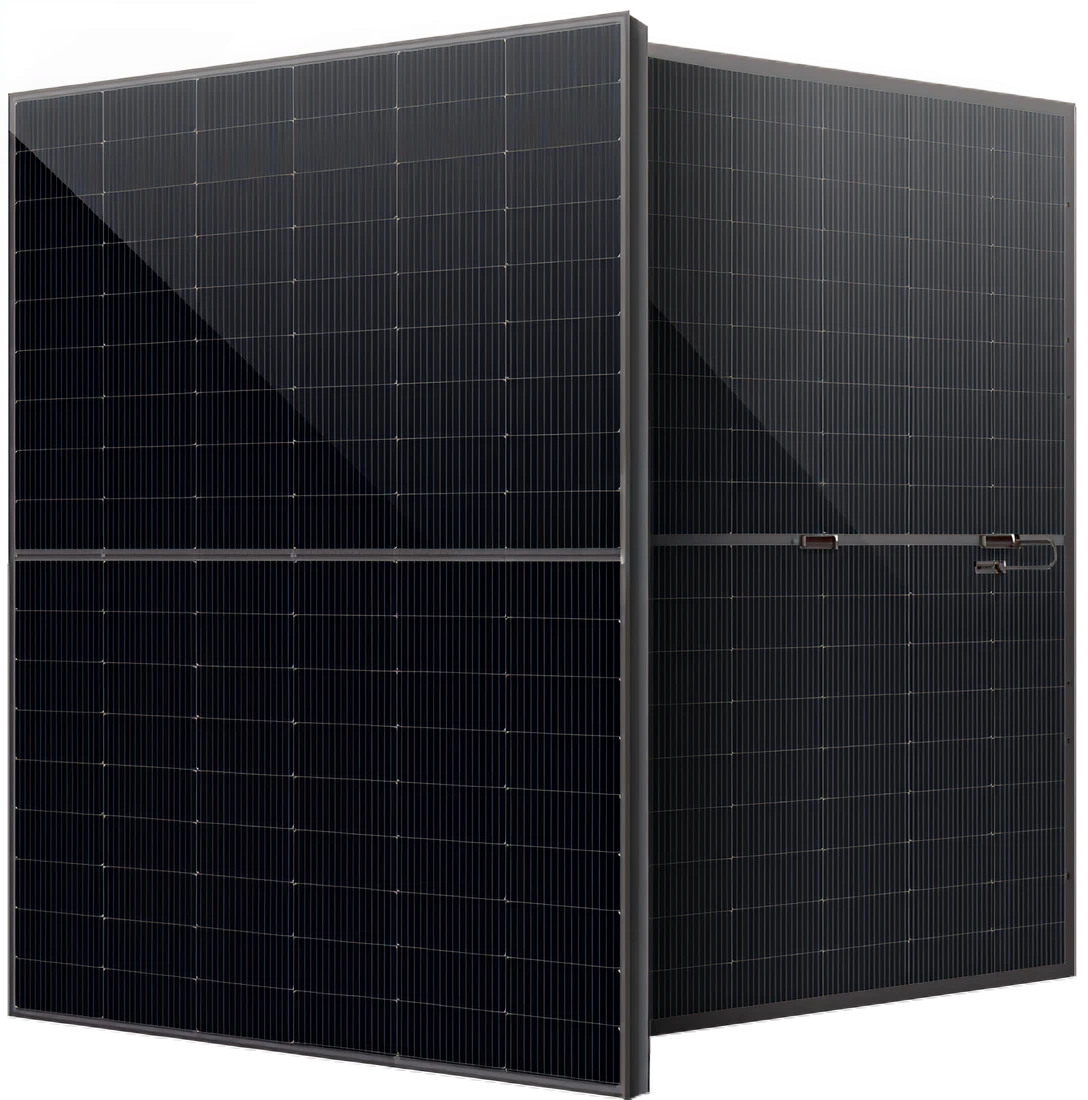

The REGITEC RMHT54-430AB2 BOB is a 430 W, all-black, glass/glass bifacial module using n-type TOPCon half-cells. With 22.02% module efficiency, a 1,500 V DC system rating, and rugged 1.6 mm dual-glass construction with an anodized aluminum frame, it delivers high energy yield and long-term reliability for residential and commercial rooftops.
Key Benefits
High Output in Compact Size: 430 W nameplate with 22.02% efficiency on a 1722 × 1134 mm footprint.
Bifacial Gain Ready: Bifaciality >85% supports meaningful rear-side contribution on reflective surfaces.
Durable Double-Glass: 1.6 mm front AR solar glass + 1.6 mm rear toughened glass for enhanced weathering and PID resistance.
String Savings: 1500 V DC system rating enables longer strings for lower BOS cost.
Special Technology
n-Type TOPCon Half-Cells: 182 × 91 mm mono cells (2×54) with SMBB reduce resistive losses and improve low-light performance.
Warranty
25-Year Product Warranty · 30-Year Linear Power Warranty.
Best Uses
Residential & C&I Rooftops: High-power, all-black aesthetics with long-life double-glass reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | RMHT54-430AB2 BOB |
| Technology | n-type TOPCon, bifacial, glass/glass, SMBB |
| Cell / Layout | 182 × 91 mm mono · 108 half-cells (2 × 54) |
| Rated Power (STC) | 430 W |
| Module Efficiency | 22.02% |
| Open-Circuit Voltage (Voc) | 38.49 V |
| Short-Circuit Current (Isc) | 14.23 A |
| Voltage at Pmax (Vmp) | 31.88 V |
| Current at Pmax (Imp) | 13.49 A |
| Power Tolerance | 0 ~ +4.99 W |
| Max System Voltage | 1000 / 1500 Vdc (IEC/UL) |
| Max Series Fuse | 25 A |
| Temperature Coefficients | Pmax −0.300%/°C · Voc −0.250%/°C · Isc +0.04%/°C |
| Operating Temperature | −40 to +85 °C |
| NOCT | 45 ± 2 °C |
| Mechanical Dimensions (L × W × H) | 67.80 × 44.65 × 1.18 in |
| Weight | 48.50 lb |
| Front / Rear Glass | 1.6 mm AR solar glass / 1.6 mm toughened glass |
| Frame | Anodized aluminum alloy (all-black module design) |
| Junction Box | IP68 |
| Connector | Stäubli MC4 |
| Output Cables | 4.0 mm² · 100 cm (+) / 100 cm (−) (customizable) |
| Mechanical Load | Front 5400 Pa · Rear 2400 Pa |
| Bifaciality | > 85% |
| Packing | 31 pcs/pallet · 26 pallets/40′HQ · 936 pcs/40′HQ |
| Warranty | 25-Year Product · 30-Year Linear Power |
About REGITEC:
REGITEC specializes in advanced energy and technology solutions, delivering reliable products for solar, storage, and power management. Focused on quality and innovation, REGITEC supports sustainable growth by providing efficient, durable, and cost-effective solutions for residential, commercial, and industrial applications.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the RMHT54-430AB2 BOB panel?
The RMHT54-430AB2 BOB panel delivers 430 watts of power, offering high efficiency for both residential and commercial solar installations.
Q: Are RMHT54-430AB2 BOB panels suitable for areas with low sunlight?
Yes, these panels are engineered to maintain strong performance even in low-light conditions such as cloudy skies, haze, or during early morning and late afternoon hours.
Q: What kind of warranty does Runergy offer for the RMHT54-430AB2 BOB panel?
Runergy provides a 15-year product warranty and a 30-year linear power output warranty, ensuring long-term durability and consistent energy generation.
Q: Are these panels compatible with different mounting systems?
Yes, the RMHT54-430AB2 BOB panels are compatible with most industry-standard mounting systems, making them easy to install on rooftops or ground-mounted arrays.
Q: How durable are RMHT54-430AB2 BOB panels in harsh weather conditions?
These panels are designed to endure extreme weather, including heavy snow, high winds, and intense heat. They also feature high-transmittance, anti-reflective glass for added durability and efficiency.
Q: Can RMHT54-430AB2 BOB panels help me save on energy costs?
Absolutely. Thanks to their high conversion efficiency, these panels generate more power per square foot, helping reduce electricity costs and shorten the return on investment.
Q: How many panels do I need for my home?
This depends on your energy consumption and available roof space. For example, a home or business using around 10,000 kWh/year would typically need 24–26 RMHT54-430AB2 BOB panels. A certified installer can provide an exact calculation.
Q: How many panels are in each pallet?
Each pallet contains 31 high-efficiency RMHT54-430AB2 BOB panels, providing a convenient and cost-effective option for larger solar projects.
