Qcells 410W Q.PEAK DUO BLK All-Black Mono PERC AC Solar Panel with Integrated Microinverter | Q.PEAK DUO BLK ML-G10.C1+/AC 410

Domestic Content

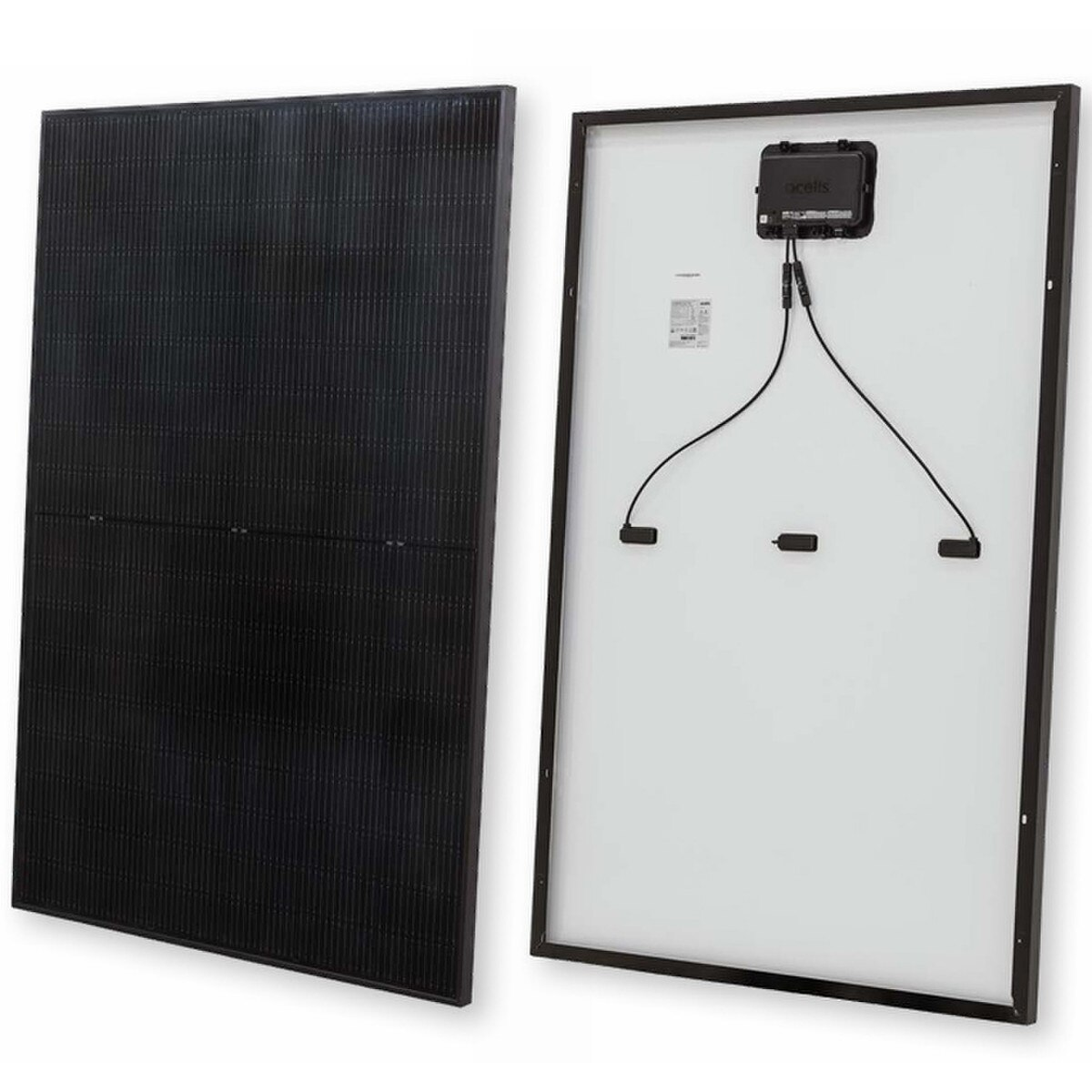

The Qcells Q.PEAK DUO BLK ML-G10.C1+/AC 410 combines a premium 410W all-black monocrystalline PERC solar module with an integrated Qcells microinverter, creating a streamlined AC module designed specifically for residential rooftop solar.

Unlike a standard 410W DC panel, this Q.PEAK DUO AC module arrives with the Q.MI.349B-G1 microinverter integrated into the module, providing module-level DC-to-AC conversion and built-in rapid shutdown capability. The system operates at 240V AC and is designed to simplify installation while reducing the number of separate components required on the roof.

The module also incorporates U.S.-manufactured components and is identified by Qcells as a Domestic Content option. According to Qcells, the module and microinverter are assembled in Georgia and Michigan, respectively. Eligibility for any domestic-content tax incentive should be confirmed for the specific project.

Key Features

• 410W DC Solar Module – High-output residential module using Qcells' proven monocrystalline Q.ANTUM PERC cell technology.

• Integrated Qcells Microinverter – Includes the Q.MI.349B-G1 microinverter for module-level DC-to-AC conversion.

• 349VA Maximum Continuous AC Output – Integrated microinverter provides up to 349VA of continuous AC output with 366VA peak output.

• All-Black Appearance – Black cells and black anodized aluminum frame create a clean, uniform appearance ideal for visible residential rooftops.

• Built-In Rapid Shutdown – The integrated microinverter is UL listed as PV Rapid Shutdown Equipment.

• 240V AC Output – Designed for 240V line-to-line residential solar applications.

• Up to 11 AC Modules per 20A Branch Circuit – Based on Qcells' specifications for the integrated microinverter.

• Domestic Content Option – Contains U.S.-manufactured components that Qcells states can contribute toward qualification for applicable domestic-content incentives.

• High Mechanical Load Capability – Module tested for both push and pull loads up to 5,400 Pa.

• 25-Year Product & Performance Warranty – Qcells backs the integrated module and microinverter solution under one warrantor, subject to applicable warranty terms.

410W Module Electrical Specifications

Integrated Microinverter Specifications

The Q.MI.349B-G1 microinverter is factory integrated with the module, creating a complete AC module rather than a conventional panel that requires a separately purchased microinverter.

Mechanical Specifications

• Dimensions: 74.0" × 41.1" × 1.57" (1879 × 1045 × 40 mm)

• Weight: 52.36 lbs (23.75 kg)

• Cells: 6 × 22 monocrystalline Q.ANTUM half cells

• Front Cover: 3.2 mm thermally pre-stressed ARC solar glass

• Back Cover: Composite film

• Frame: Black anodized aluminum

• Junction Box: IP68 with bypass diodes

• Microinverter: IP67 / NEMA Type 6

• DC Connector: Stäubli MC4, IP68

• Maximum Push Load: 5,400 Pa test / 3,600 Pa design

• Maximum Pull Load: 5,400 Pa test / 3,600 Pa design

Certifications & Rapid Shutdown

According to the Qcells datasheet, the base DC module is certified to UL 61730-1 and UL 61730-2 and complies with IEC 61215:2021 and IEC 61730:2023.

The integrated Q.MI.349B-G1 microinverter is UL listed as PV Rapid Shutdown Equipment and carries UL 1741, UL 1741SA, UL 1741SB, and CSA C22.2 No. 107 certifications. The complete AC module is listed to UL 1741, CSA C22.2 No. 107, and IEEE 1547.

Built for Residential Rooftop Solar

Qcells specifically identifies this AC module as an ideal solution for residential rooftop arrays. By integrating the microinverter directly with the panel, the Q.PEAK DUO AC platform reduces separate component requirements and provides module-level power conversion in a single package.

The detachable microinverter also helps simplify on-site service and maintenance compared with a permanently integrated power-electronics design.

Qcells Performance Warranty

Qcells specifies:

• At least 98% of nominal DC power during the first year

• Maximum 0.5% degradation per year thereafter

• At least 93.5% of nominal DC power through 10 years

• At least 86% of nominal DC power through 25 years

• 25-year product and performance warranty for the integrated module and microinverter solution

Warranty coverage is subject to Qcells' applicable warranty terms.

Domestic Content

The Q.PEAK DUO BLK ML-G10.C1+/AC includes U.S.-manufactured components. Qcells states that these components can contribute to qualifying for the 10% domestic-content bonus for applicable investment and production tax credits.

Qcells also notes that this statement should not be relied upon as tax advice and that qualification depends on applicable laws, regulations, guidance, and the specific project.
