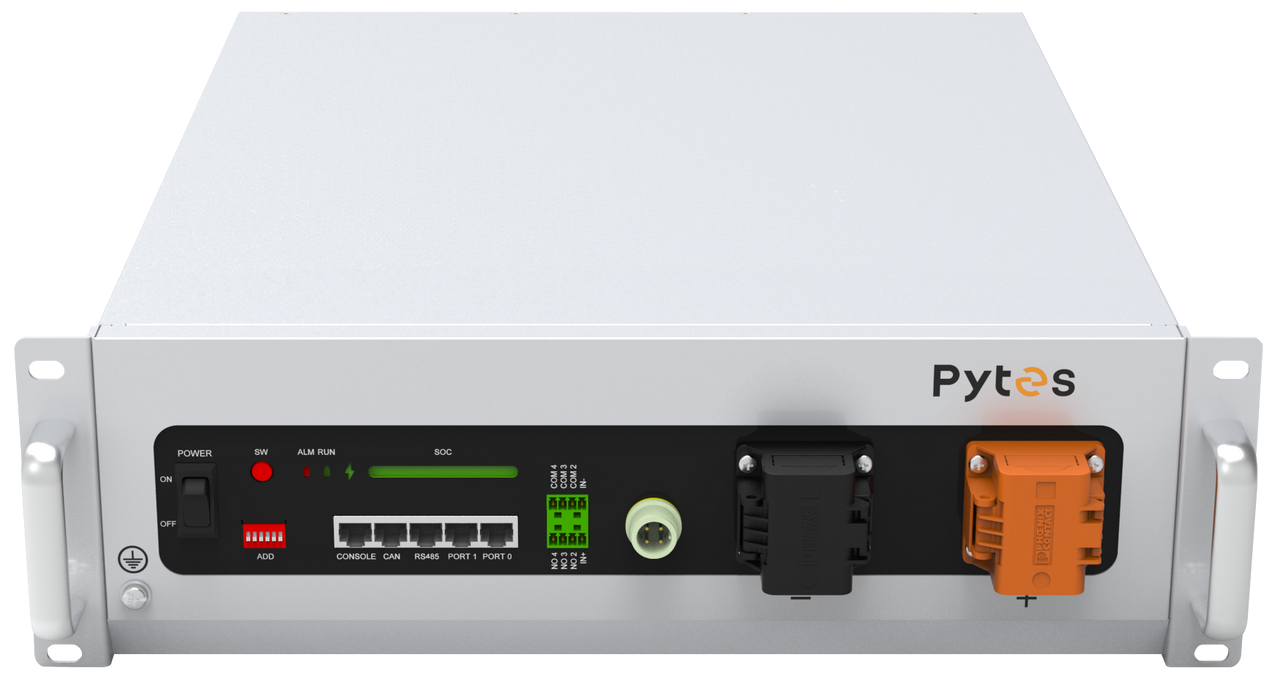

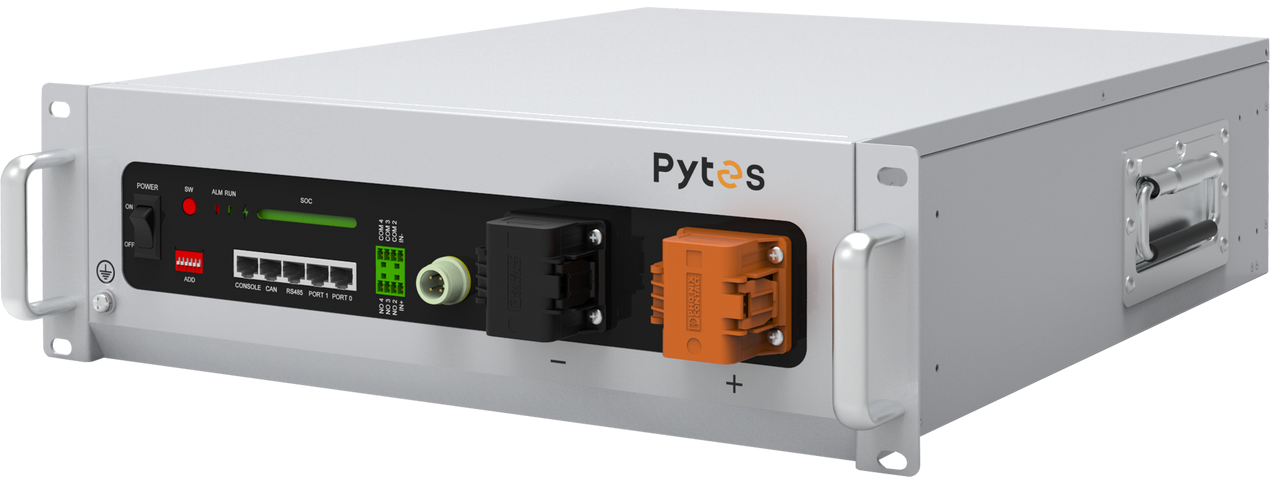

Pytes V5 Lithium Battery Module – 5.12kWh 51.2V 100Ah LiFePO4 Battery w/ Busbars & Cables

5.12 kWh | 51.2V | 100Ah | 10-Year Warranty

Pytes-V5

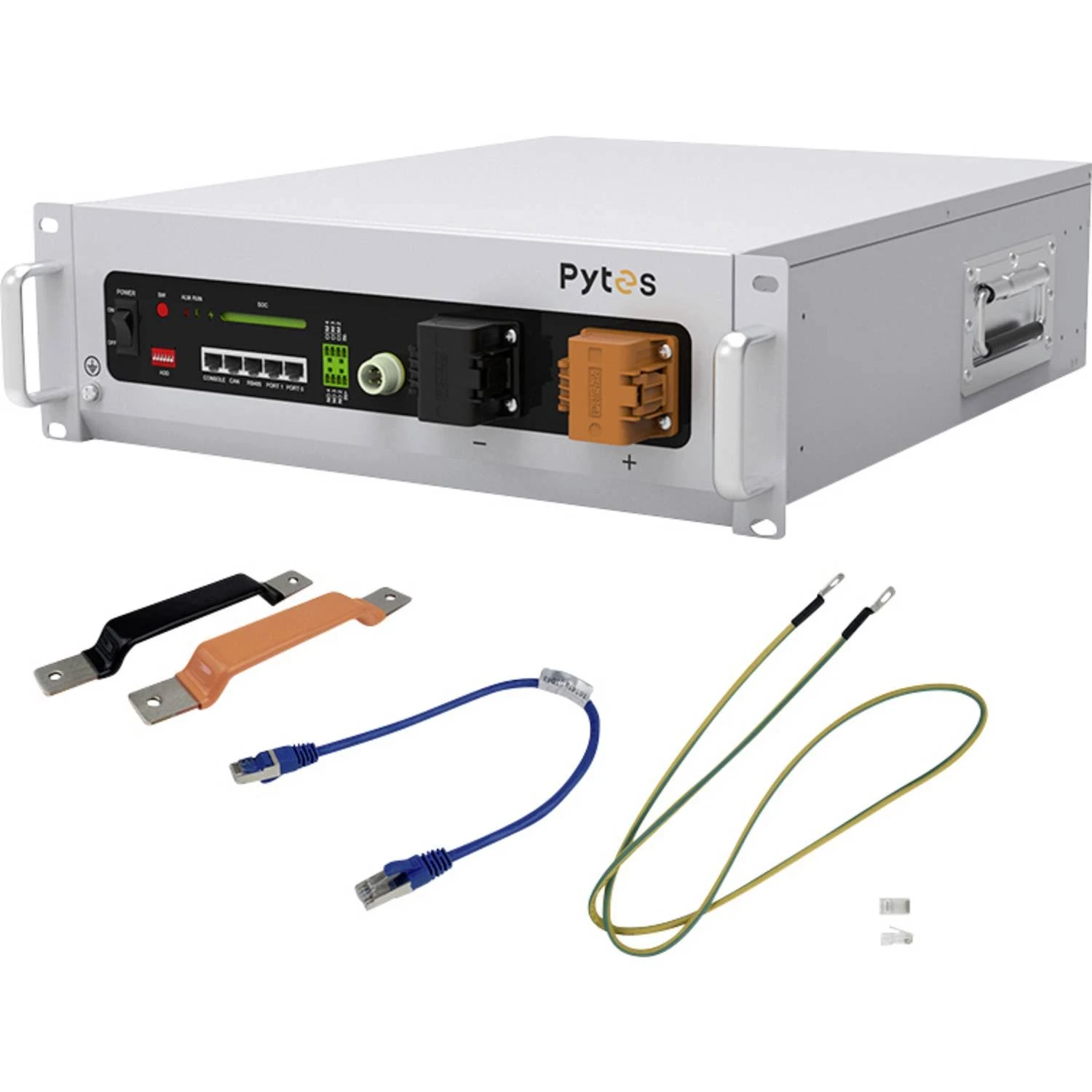

What's Included

• Pytes V5 Lithium Battery Module – 5.12 kWh
• (2) Flexible Busbars
• (1) Cascade Communication Cable
• (1) Grounding Cable

The Pytes V5 LiFePO4 Battery Pack is a reliable, server-rack–style energy storage solution built for residential and light commercial solar applications. With 5.12 kWh of usable capacity, a long 6,000+ cycle life, and a 10-year warranty, the V5 is designed for long-term performance in grid-tied, hybrid, and off-grid systems.

Its compact 48V form factor makes it easy to stack and scale, while integrated battery management ensures safe, efficient operation across a wide range of inverter platforms.

Key Features

• 5.12 kWh usable energy per module

• LiFePO4 (LFP) chemistry for enhanced safety and longevity

• 6,000+ cycles at recommended depth of discharge

• 10-year manufacturer warranty

• 51.2V / 100Ah nominal configuration

• Rack-mountable, stackable design for easy system expansion

• Integrated BMS with protections for over-voltage, over-current, and temperature

• Designed for solar self-consumption, backup power, and off-grid systems

Ideal Applications

• Residential solar + storage systems

• Whole-home or partial-home backup

• Off-grid cabins and remote installations

• Hybrid inverter battery banks

• Scalable energy storage for growing power needs

Warranty

10-Year Limited Manufacturer Warranty
Covers defects in materials and workmanship under normal use, providing long-term confidence and system reliability.

Product Specifications

Specifications based on manufacturer data. Always verify inverter compatibility prior to installation.

Why Choose Pytes?

Pytes batteries are known for clean integration, dependable performance, and long service life, making them a solid choice for installers and DIYers looking for a scalable 48V battery solution without unnecessary complexity.
