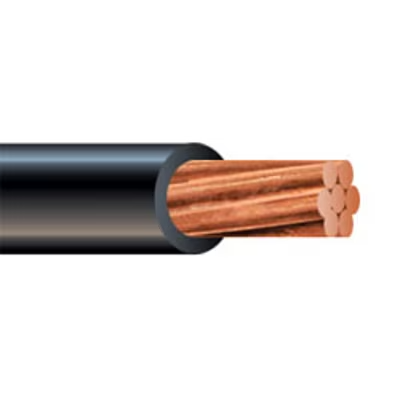

PV Wire #10 AWG – Black (1 FT) | 1000VDC–2000VDC Rated
Durable, sunlight-resistant #10 AWG copper PV wire designed for safe and reliable solar array wiring. This 1-foot length is ideal for jumpers, pigtails, RSD/optimizer connections, and other short-run terminations in residential, commercial, and off-grid solar installations. Rated up to 2000VDC and engineered to withstand harsh outdoor environments, this wire meets UL PV Wire requirements and NEC standards for exposed solar conductors.
-
1000VDC–2000VDC Rating
Supports modern high-voltage PV strings, offering superior insulation thickness and long-term performance in demanding environments. -
Tin-Coated Copper Conductor
Provides excellent conductivity with enhanced corrosion resistance—critical for rooftop and ground-mount systems exposed to moisture and temperature swings. -
XLPE Insulation
Cross-linked polyethylene provides exceptional thermal stability, abrasion resistance, and UV protection for long-term outdoor use. -
Sunlight & Weather Resistant
UL-listed PV wire designed for continuous exposure to heat, cold, moisture, and direct sunlight without degradation. -
Flexible & Easy to Work With
Ideal for wiring optimizers, rapid-shutdown devices, inverters, combiners, and short lead extensions.
Warranty
-
Manufacturer Warranty: Standard product warranty (varies by producer)
-
Designed to meet all UL/NEC requirements for PV Wire in solar applications
-
Suitable for residential, commercial, and industrial photovoltaic installations
Product Specification Table
| Specification | Detail |
|---|---|
| Conductor Material | Copper (Tin-Coated) |
| Wire Gauge | #10 AWG |
| Length | 1 FT |
| Voltage Rating | 1000VDC–2000VDC |
| Insulation Type | XLPE (Cross-Linked Polyethylene) |
| Color | Black |
| Temperature Rating | -40°C to +90°C (typical) |
| Outdoor Rating | Sunlight/UV Resistant |
| Certifications | UL PV Wire, NEC Compliant |
| Approx. Weight (per ft) | ~0.037 lbs |
