PowerField PowerRack 1200 Solar Module Mounting Rack
Pallet of 50

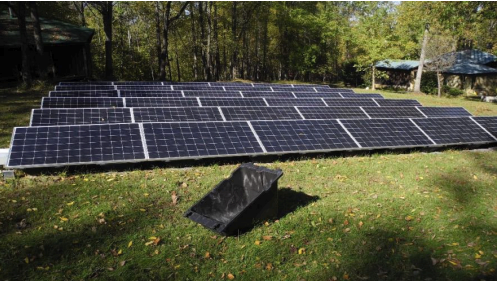

The PowerField PowerRack 1200 is a versatile ballasted solar mounting solution designed for fast, efficient ground-mounted solar installations.

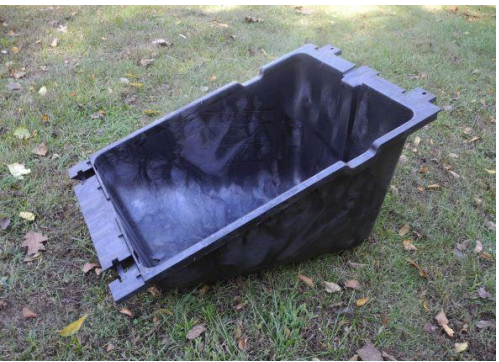

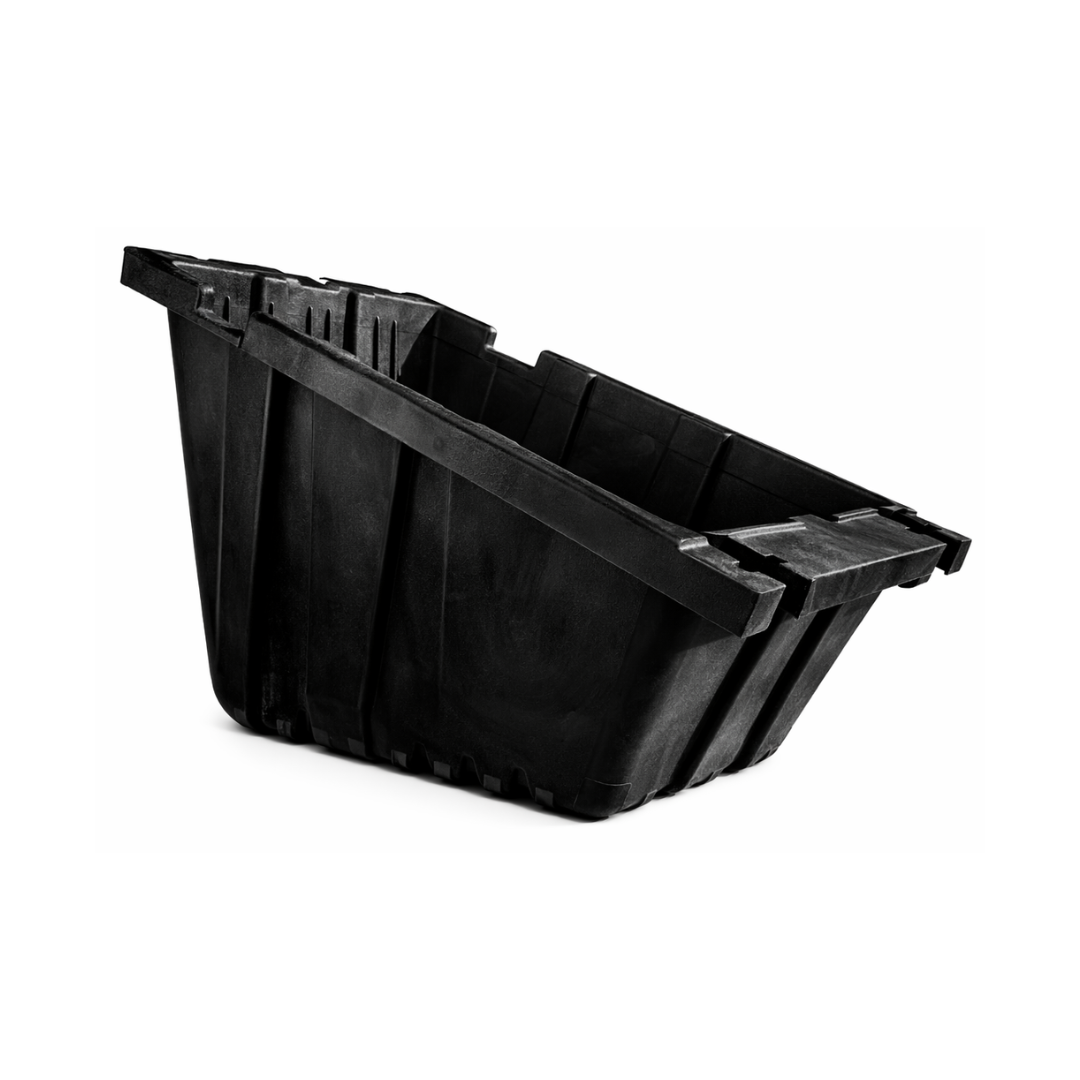

Built from durable high-density polyethylene (HDPE), this one-piece rack supports modern high-wattage solar modules while eliminating the need for ground penetration, concrete, or specialized tools.
Its ballast-based design allows installers to secure solar panels using common materials such as gravel, sand, or soil, making it ideal for projects where trenching or permanent foundations are impractical.
With a 20° tilt angle and compatibility with large-format solar modules, the PowerRack 1200 provides an efficient and flexible mounting option for residential, agricultural, and small commercial solar systems.
Key Benefits
Ballasted Ground Mount Design
Installs without ground penetration, making it ideal for sites where drilling or concrete foundations are not permitted.
Fast One-Piece Installation

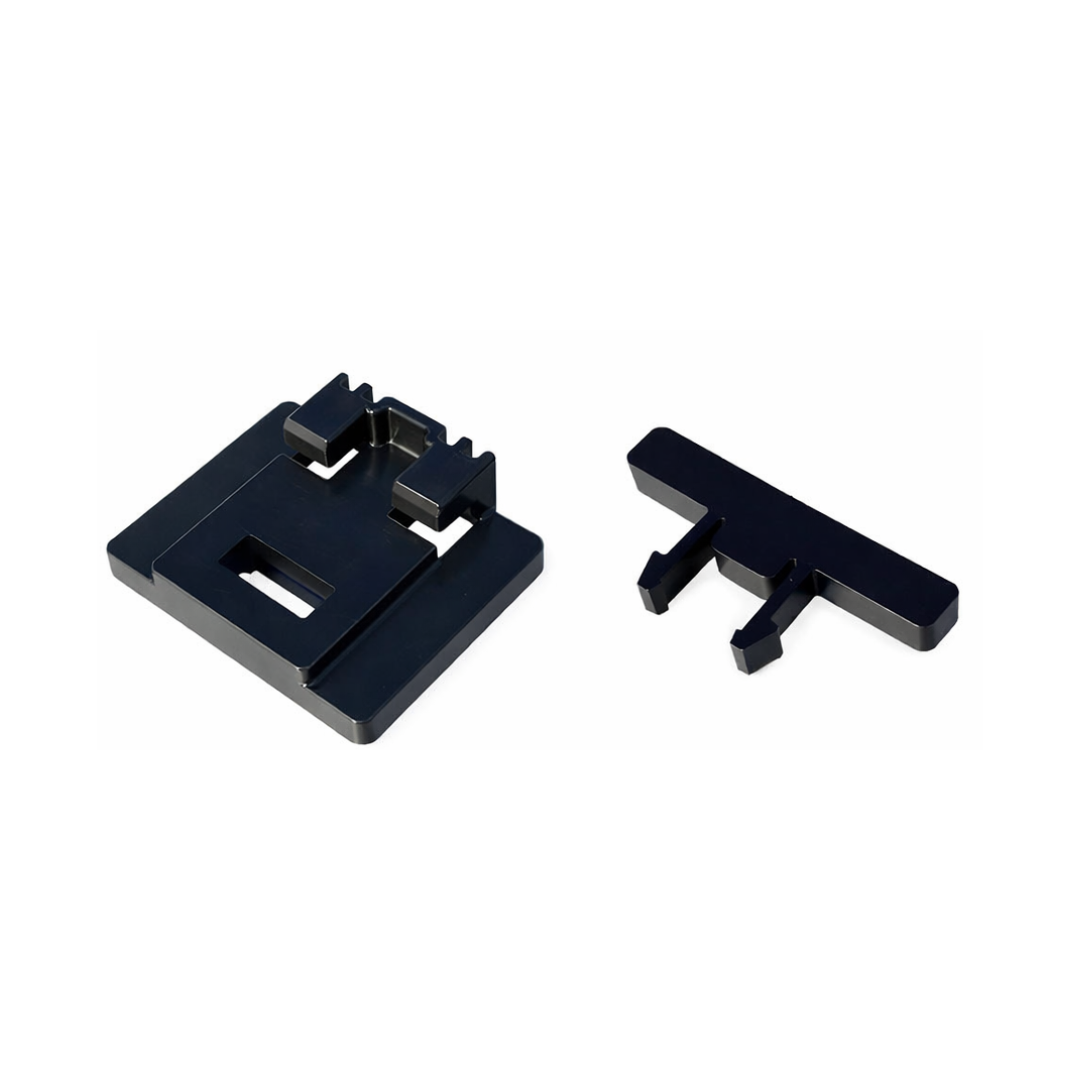

Integrated rack design with two clips reduces parts and speeds up installation.
Compatible with High-Wattage Solar Modules
Designed to support framed solar panels from 400W to 635W.
Flexible Ballast Options
Rack can be filled with aggregate gravel, sand, or dirt depending on site requirements.
Durable HDPE Construction
Weather-resistant high-density polyethylene provides long-term durability in outdoor environments.
Reusable and Recyclable
Lightweight but strong construction allows racks to be reused or recycled at end of system life.
Best Uses
-
Ground-mounted residential solar arrays
-
Agricultural or rural solar installations
-
Off-grid solar projects
-
Temporary or relocatable solar systems
-
Locations where ground penetration is restricted
Product Specifications
| Specification | Details |
|---|---|
| Product | PowerField PowerRack 1200 |
| MPN | POWERRACK1200 |
| Rack Type | Ballasted Ground Mount |
| Material | High Density Polyethylene (HDPE) |
| Module Orientation | Landscape |
| Compatible Module Width | 44.1 in – 45.2 in |
| Compatible Module Wattage | 400W – 635W |
| Length | 42.1 in |
| Width | 25.6 in |
| Height | 29.9 in |
| Empty Weight | 22 lbs |
| Tilt Angle | 20° |
| Wind Load Rating | 130 mph (ASCE 7-22) |
| Snow Load Rating | 200+ psf |
| Certification | UL 2703 Compliant |
| Warranty | 25 Years |
Ballast Capacity Guidelines
| Ballast Depth | Gravel Weight | Dirt Weight | Sand Weight |
|---|---|---|---|
| 10 in | 290 lbs | 250 lbs | 270 lbs |
| 13 in | 380 lbs | 340 lbs | 360 lbs |
| 16 in | 500 lbs | 450 lbs | 480 lbs |
| 18 in | 610 lbs | 550 lbs | 590 lbs |
| 20 in | 740 lbs | 670 lbs | 710 lbs |
Actual ballast requirements may vary depending on site conditions and engineering calculations.
Warranty
The PowerField PowerRack 1200 is backed by a 25-year manufacturer warranty, ensuring long-term reliability for ground-mounted solar installations.
