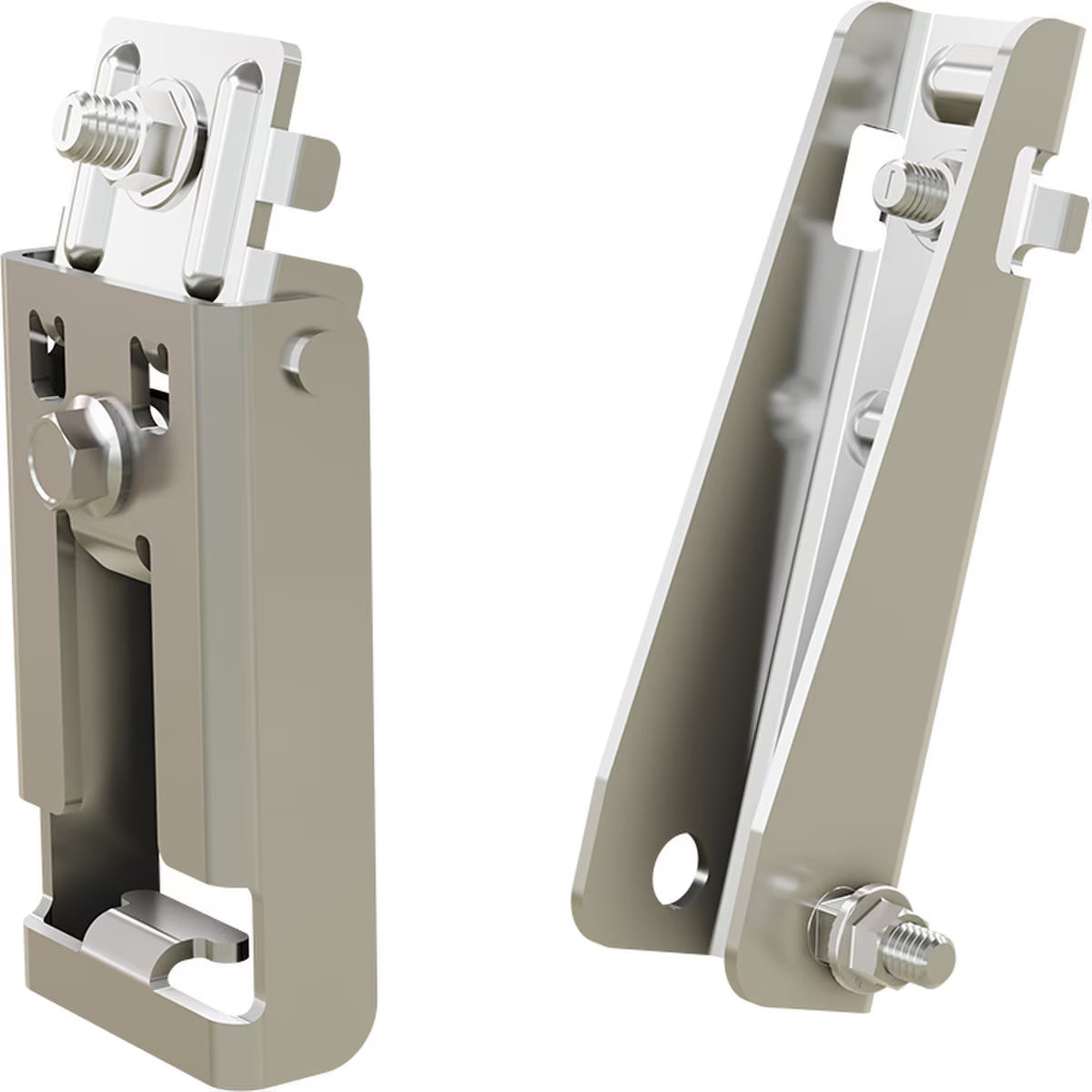

Pegasus Solar InstaTilt (1 pc) PSR-ITLT
The PSR-ITLT InstaTilt is an advanced adjustable tilt mounting solution engineered specifically for flat and low-slope roofs. Designed to work with Pegasus Rail or Pegasus Max Rail, InstaTilt allows installers to create precise tilt angles using scrap rail, eliminating waste, reducing SKUs, and significantly lowering project costs—while maintaining full structural and code compliance.
Key Technology
-
Adjustable Tilt Angles (0°–35°)
Rated for installation angles from 0 to 35 degrees, allowing optimal energy production on flat roofs. -
Use Scrap Rail – Zero Waste
Upper tilt legs are created from scrap Pegasus Rail or Pegasus Max Rail, reducing material waste and inventory. -
InstaFlash™ Self-Flashing Base
Factory-installed, non-hardening sealant provides instant waterproofing—no caulking required. Works on wet or dry roofs from 0°F to 170°F. -
Pre-Assembled for Speed
Components arrive pre-assembled, allowing faster installs and array leveling without removing modules.
Best Uses
-
Flat & Low-Slope Roof Solar
Ideal for commercial and residential flat-roof PV installations. -
Cost-Optimized Projects
Eliminates scrap waste and reduces SKUs for streamlined procurement. -
Code-Compliant Installations
Fully IBC/CBC compliant and UL 2703 certified.
Installation Notes
-
Compatible roof materials include rolled composition and BUR.
-
Lower leg installs using InstaFlash with a lag embedment of at least 2.5" into the rafter.
-
Torque all rail and leg connections to 250 in-lbs per manufacturer specifications.
Warranty & Compliance
-
Certifications: IBC, CBC, ASCE/SEI 7-16, UL 2703
-
Warranty: 25-Year Limited Warranty
-
Performance: Manufactured with advanced materials and coatings designed to outlast the roof itself
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pegasus Solar |
| Product Name | InstaTilt Adjustable Tilt Leg Kit |
| Part Number | PSR-ITLT |
| Roof Type | Flat / Low-Slope (Rolled Comp, BUR) |
| Tilt Angle Range | 0°–35° |
| Compatible Rail | Pegasus Rail, Pegasus Max Rail (including scrap rail) |
| Flashing Type | Pegasus InstaFlash™ (factory-installed sealant) |
About Pegasus Solar Solar:
Pegasus Solar is an American solar company founded in 2012 that designs and manufactures rooftop solar mounting systems—especially rail-less and rail-based hardware to hold solar panels securely on residential and commercial roofs. The brand focuses on making solar installations simpler, faster and more reliable with innovative, durable products and extensive installer support.
Smart Tilt. Faster Installs. Zero Waste.
The Pegasus Solar PSR-ITLT InstaTilt™ system delivers next-level flat-roof mounting by combining adjustable tilt, self-flashing protection, and scrap-rail efficiency—making it a powerful choice for modern, cost-conscious, and code-compliant solar installations.
