Pegasus Solar BondBox PSR-BBOX

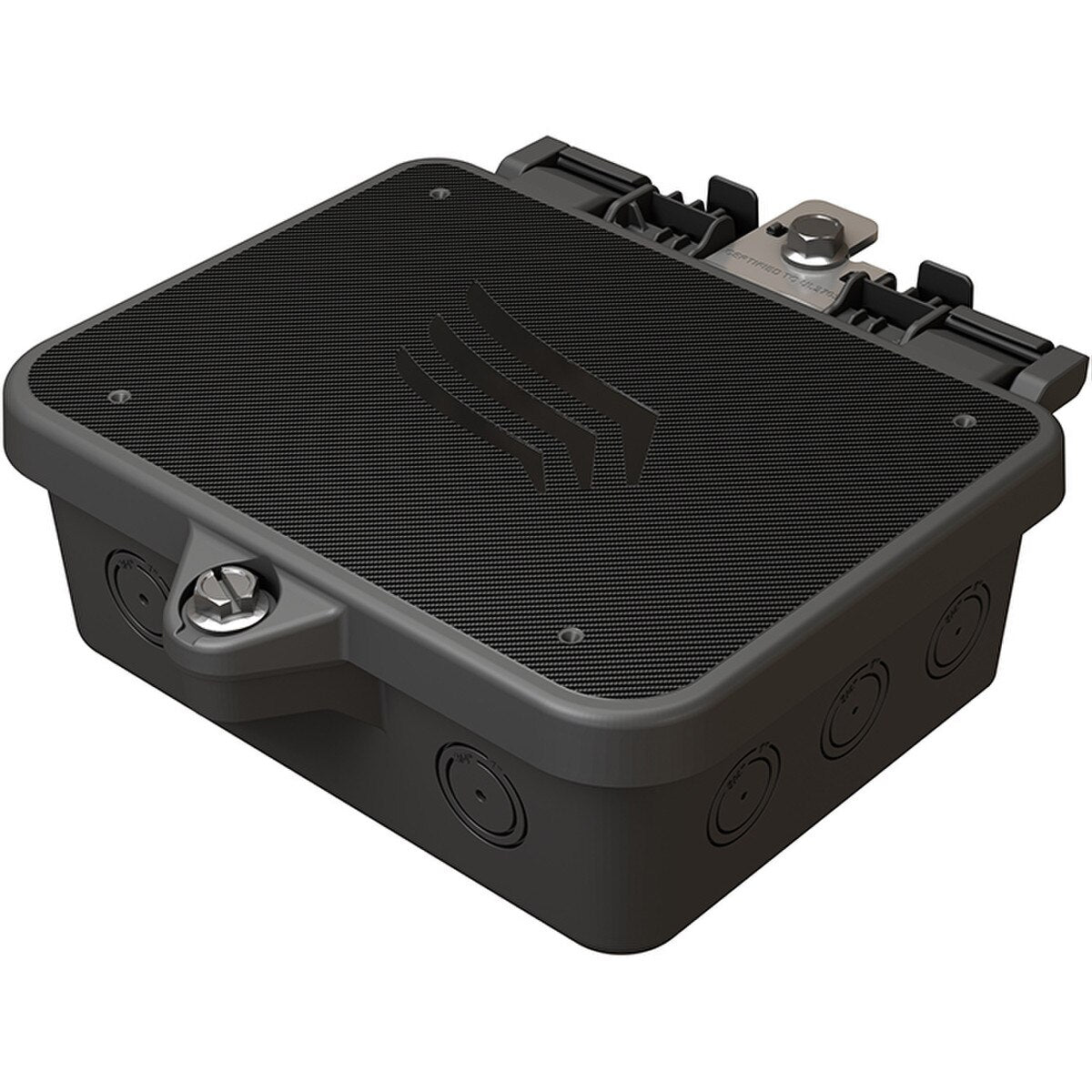

The PSR-BBOX Rail BondBox is a compact, rail-mounted bonding and wire-management enclosure engineered to provide a clean, code-compliant grounding path within Pegasus rail systems. Designed to consolidate grounding hardware and connections at the rail level, the BondBox simplifies installs, reduces exposed components, and delivers an inspection-ready finish.
Key Technology
-
Integrated Grounding Path
Purpose-built to establish a continuous grounding path using Pegasus rail hardware and a multi-position ground lug. -
Rail-Mounted Enclosure
Installs directly to Pegasus rails to centralize grounding connections and protect terminations. -
Compact, High-Capacity Interior
115 cu in internal volume accommodates grounding lugs, fasteners, and conductors without crowding. -
Installer-Friendly Layout
Clear internal dimensions and defined grounding components streamline field assembly and inspections.
Best Uses
-
Railed PV Arrays
Centralized grounding solution for Pegasus rail-based solar installations. -
Clean, Inspection-Ready Builds
Reduces exposed grounding components for a professional finish. -
Residential & Commercial Projects
Supports organized grounding in systems of varying scale.
Installation Notes
-
Mounts directly to Pegasus rail using compatible rail fasteners and grounding hardware.
-
Includes provisions for a 3-position ground lug and defined grounding path components.
-
Follow project engineering and local electrical codes for conductor sizing and termination.
Warranty & Manufacturer
25-year manufacturer warranty from Pegasus Solar.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pegasus Solar |
| Product Name | Rail BondBox |
| Part Number | PSR-BBOX |
| Internal Dimensions (Main) | 7.6 × 8.5 × 3.2 in |
| Secondary Internal Dimension | 5.6 in |
| Internal Volume | 115 cu in (1,900 cm³) |
| Weight | 1.4 lbs |
| Function | Rail-mounted grounding & wire management enclosure |
About Pegasus Solar Solar:
Pegasus Solar is an American solar company founded in 2012 that designs and manufactures rooftop solar mounting systems—especially rail-less and rail-based hardware to hold solar panels securely on residential and commercial roofs. The brand focuses on making solar installations simpler, faster and more reliable with innovative, durable products and extensive installer support.
Clean Grounding, Simplified Installations
The Pegasus Solar PSR-BBOX Rail BondBox centralizes grounding within the rail system—delivering a tidy, code-conscious solution that saves time on the roof and presents a professional, inspection-ready result.
