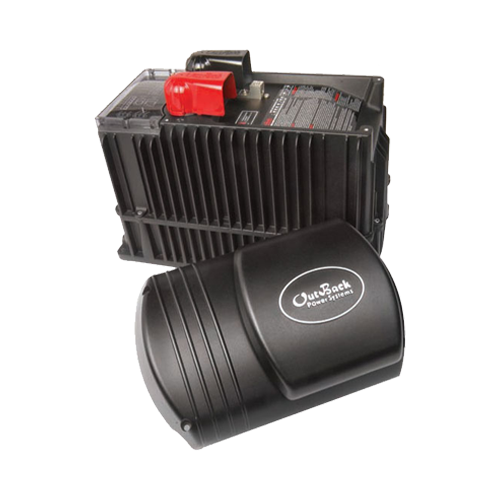

OutBack Power FXR E-Series FXR2024E 2kW 24VDC 230VAC Sealed Sine Wave Grid/Hybrid Inverter/Charger

OutBack Power FXR E-Series FXR2024E 2kW 24VDC 230VAC Sealed Sine Wave Grid/Hybrid Inverter/Charger

Regular price $1,707.52
Sale price $1,707.52 Regular price

OutBack Power FXR E-Series FXR2024E 2kW 24VDC 230VAC Sealed Sine Wave Grid/Hybrid Inverter/Charger

OutBack Power FXR E-Series FXR2024E 2kW 24VDC 230VAC Sealed Sine Wave Grid/Hybrid Inverter/Charger

No reviews
Regular price $1,707.52
Sale price $1,707.52 Regular price
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Outback Power
Weight
70 lb
Dimension
21.75 x 13 x 22 inches
OutBack Power FXR E-Series FXR2024E 2kW 24VDC 230VAC Sealed Sine Wave Grid/Hybrid Inverter/Charger

Manufacturer Part#: FXR2024E

The latest, most advanced features on the industry’s most trusted and proven platform—that’s the essence of OutBack’s new FXR Series of Grid/Hybrid inverter/chargers. Capable of off-grid or grid-connected operation in a single model, the FXR Grid/Hybrid inverter/chargers provide system designers with unprecedented flexibility and compatibility for nearly any power conversion scenario.

The new FXR features and technologies on the acclaimed FX platform include:

  • Seven programmable modes, including GridZero and Support Mode and built-in networked communications
  • Advanced Battery Charging (ABC) with expanded charging voltages and time parameters, enabling system designers to accommodate the specific charging profiles and algorithms of new and emerging energy storage technologies including Lithium Ion, Aqueous Ion and Flow chemistry batteries
  • Easy system upgradability in the field

Specifications

More information can be found in the Document(s) tab above.

Electrical Data
Instantaneous Power (100ms) 5750VA
Surge Power (5 sec) 5175VA
Peak Power (30 min) 3100VA
Continuous Power Rating (@ 25°C) 2000VA
Nominal DC Input Voltage 24VDC
AC Output Voltage (selectable) 230VAC (200 to 260VAC)
AC Output Frequency (selectable) 50Hz (60Hz)
Mechanical Data
Warranty Standard 5 year warranty
Extended 10 year available
Weight (lbs/kg) Unit
62 / 29
Shipping
67 / 30
Dimensions
H x W x L
Unit
13 x 8.25 x 16.25 in
21.75 x 13 x 22 cm
Shipping
21.75 x 13 x 22 in
55 x 33 x 56 cm
Listings / Certifications IEC 62109, EN 61000-3, EN 61000-6, AS4777.2/3
