OutBack Power FLEXmax 60 MPPT Solar Charge Controller – 60A 150VDC (FM60-150VDC)

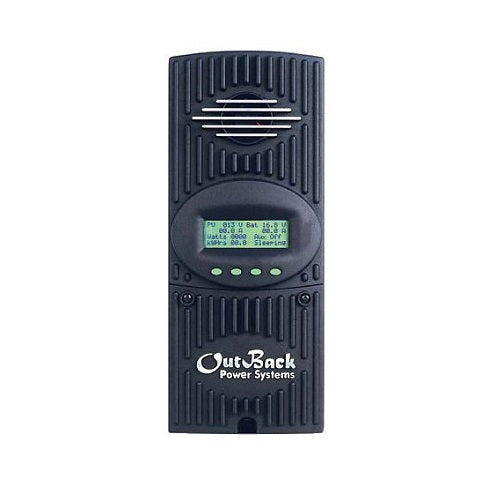

The OutBack Power FLEXmax 60 (FM60-150VDC) is a premium Maximum Power Point Tracking (MPPT) solar charge controller designed to maximize energy harvest from photovoltaic arrays while providing advanced battery charging management. Supporting up to 60 amps of charging current and photovoltaic input voltages up to 150VDC, the FLEXmax 60 is ideal for residential, commercial, off-grid, backup power, and battery-based renewable energy systems.
Utilizing OutBack's advanced MPPT technology, the FM60 continuously tracks the optimum power point of the solar array, increasing charging efficiency and energy production compared to conventional PWM controllers. The controller supports a wide range of battery chemistries, programmable charging profiles, and seamless integration with OutBack monitoring and power conversion equipment.
Key Technology
-
Advanced MPPT Technology
Continuously tracks the maximum power point of the PV array to maximize solar energy harvest throughout the day. -
60A Charging Capacity
Delivers up to 60 amps of battery charging current for medium and large battery banks. -
150VDC PV Input Rating
Supports higher-voltage solar arrays, reducing wire size and installation costs. -
97.5% Peak Efficiency
Industry-leading conversion efficiency helps maximize system performance. -
Fully Programmable Charging Profiles
Supports flooded, AGM, gel, lithium, and custom battery charging parameters. -
Automatic Battery Voltage Detection
Supports 12V, 24V, 36V, 48V, and 60V battery systems. -
Integrated Backlit Display
Provides real-time system status, charging information, and performance monitoring. -
Network Communication Ready
Compatible with OutBack HUB systems, MATE displays, and OPTICS RE monitoring platforms. -
Advanced Thermal Management
Intelligent cooling system maintains reliable operation under demanding conditions.
Best Uses
-
Off-Grid Solar Systems
Provides efficient battery charging for standalone renewable energy systems. -
Residential Energy Storage
Optimizes battery charging in solar-plus-storage installations. -
Backup Power Systems
Supports battery charging for emergency and critical power applications. -
Remote Power Installations
Ideal for telecommunications, monitoring stations, cabins, and remote facilities. -
Commercial Renewable Energy Systems
Provides scalable solar charge control for larger battery-based systems.
Warranty
- Standard Warranty: 5 Years
- Designed Service Life: Long-term continuous renewable energy operation
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | OutBack Power |
| Model | FLEXmax 60 |
| Part Number | FM60-150VDC |
| Product Type | MPPT Solar Charge Controller |
| Maximum Charging Current | 60A |
| Maximum PV Open Circuit Voltage | 150VDC |
| Nominal Battery Voltages | 12V, 24V, 36V, 48V, 60V |
| Maximum Output Power @ 12V | 900W |
| Maximum Output Power @ 24V | 1,750W |
| Maximum Output Power @ 48V | 3,000W |
| Maximum Output Power @ 60V | 3,600W |
| Peak Efficiency | 97.5% |
| Standby Consumption | Less than 1W |
| Battery Temperature Compensation | Included |
| Battery Charging Stages | Bulk, Absorption, Float, Equalization |
| Display Type | Backlit LCD |
| Communications | OutBack Network Compatible |
| Monitoring Compatibility | MATE / HUB / OPTICS RE |
| Ground Fault Protection | Integrated Programming Support |
| Cooling Method | Temperature-Controlled Fan |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environmental Rating | Indoor Installation |
| Dimensions | 14.6 × 5.8 × 4.0 in |
| Weight | 12 lb |
About OutBack Power
OutBack Power is a leading manufacturer of renewable energy and energy storage equipment, specializing in inverter/chargers, solar charge controllers, battery management solutions, and system monitoring platforms. OutBack products are widely used in residential, commercial, industrial, and off-grid applications around the world and are recognized for their reliability and performance in demanding environments.
Industry-Proven MPPT Performance for Battery-Based Solar Systems
The OutBack Power FLEXmax 60 combines advanced MPPT technology, 150VDC PV input capability, 60A charging performance, and comprehensive battery management features into a reliable charge controller platform trusted by installers and system designers worldwide.
