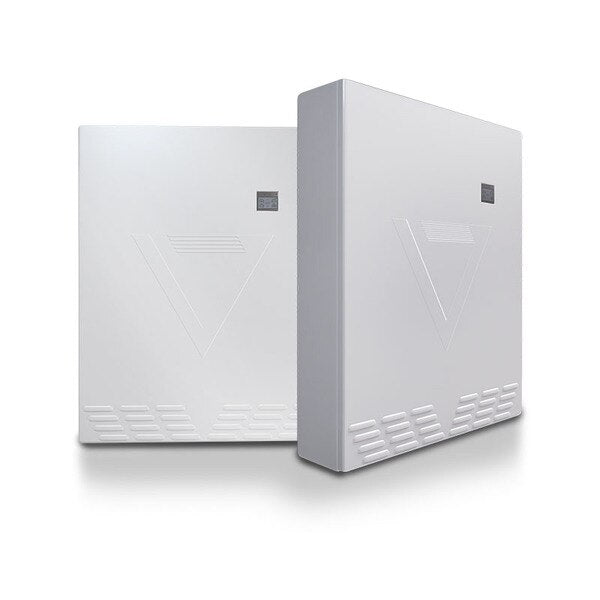

NeoVolta All-in-One with 7.6kW Inverter plus 14.4kWh/48Vdc NV14
The NeoVolta NV14 is a fully integrated, floor-mounted hybrid ESS that combines a bidirectional inverter with a 14.4 kWh LFP battery. It supports 120/240 V split-phase and 208 V grids, accepts up to 10 kW STC PV (2× MPPT), and provides 7.68 kW continuous AC output with NEMA 3R outdoor protection.
All-in-One Design: Hybrid inverter + 14.4 kWh LFP battery with integrated protections and communication.
Flexible Solar Input: 2 MPPTs, 2 inputs each; 125–460 V MPPT range; up to 10 kW STC PV.
Reliable Backup Power: 7.68 kW nominal output, 8.45 kW (10 s) surge; generator-ready (to 7.5 kW when no AC-coupled PV).
Outdoor-Rated & Quiet: NEMA 3R enclosure, intelligent air cooling, <54 dB operation.
Special Technology
Energy Intelligence & Monitoring: Wi-Fi/Ethernet connectivity with Solarman app; integrated metering/controls.
Built-in Safety Suite: AFCI, anti-islanding, insulation & residual current monitoring, reverse-polarity, lightning protection.
Warranty
10-Year / 6,000-cycle limited warranty.
Best Uses
Whole-Home Backup & TOU Shifting: Seamless PV + storage operation with generator support.
Outdoor or Garage Installs: NEMA 3R, floor-mount system with included sub-panel and accessories.
Specifications Table
| Specification | Data |
|---|---|
| Model | NV14 |
| System Type | Hybrid inverter + LFP energy storage (ESS) |
| Nominal Battery Energy | 14.4 kWh (AC) |
| Nominal AC Output Power | 7.68 kW |
| Max AC Power (10 s) | 8.45 kW |
| Max Continuous Current | 32 A |
| Max Continuous Charge / Discharge | 5 kW / 7.68 kW |
| Grid Voltage / Type / Freq. | 120/240 V or 208 V · split-phase · 60 Hz |
| PV STC Input (max) | 10 kW DC (9.2 kW AC) |
| PV DC Window / Start | 125–460 Vdc / 125 Vdc |
| MPPTs / Inputs per MPPT | 2 MPPTs / 2 inputs each |
| Max Current per MPPT | 26 A |
| MPPT / Weighted Efficiency | 99.90% / 96.50% |
| Generator Ready | Up to 7.5 kW (when not AC-coupled) |
| Connectivity | Wi-Fi (2.4/5.0 GHz), Ethernet; Solarman App |
| Enclosure / Cooling / Noise | NEMA 3R / Intelligent air cooling / <54 dB |
| Operating Temp / Humidity | 0 °C to 55 °C; up to 100% RH |
| Max Outdoor Elevation | 2,500 m (above this, install indoors) |
| Certifications | UL9540, UL9540A, UL1741 SB, UL1973, UL1699B, IEEE 1547/1547.1, FCC Part 15B, CSA C22.2 No.107.1, CA Rule 21, CEC |
| Dimensions (H × W × D) | 50.5 × 38 × 10 in |
| Total Installed Weight | 560 lb |
| Mounting | Floor-mount |
| Included Equipment | NEMA 3R 40 A sub-panel, rope CTs, data logger with Wi-Fi antenna, comms cable, brackets, lag bolts, installation guide |
| Protections | PV arc-fault, lightning protection, anti-islanding, reverse-polarity, insulation resistor detection, residual current monitoring, output OCP/short |
| Warranty | 10 Years / 6,000 cycles |
About NeoVolta:
NeoVolta specializes in advanced home energy storage systems designed for reliability, safety, and long life. Their lithium iron phosphate (LFP) batteries deliver high efficiency, robust cycle performance, and seamless backup power during outages. NeoVolta systems integrate with solar to maximize self-consumption and reduce dependence on the grid.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 10-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the NV14 compatible with my solar panels?
Yes. The NV14 is compatible with a wide range of solar panels. Your installer will design the optimal panel configuration based on your system size, layout, and energy needs.
Do I need a battery to use the NV14?
That depends on the system design. The NV14 can operate without a battery in certain configurations. However, adding a compatible battery allows you to store excess solar energy for use at night or during power outages.
How do I monitor the performance of my NV14?
The NV14 typically connects to an online monitoring platform, often via Wi-Fi or Ethernet. This allows you to track energy production, system performance, and battery status (if installed) through a web portal or mobile app.
What happens if there is a power outage?
If the NV14 is installed with a compatible battery and backup configuration, it can provide power to selected loads during a grid outage. Without a battery or backup setup, the system will automatically shut down for safety when the grid goes offline.
How do I maintain the NV14?
The NV14 requires minimal maintenance. Periodic visual inspections, ensuring proper ventilation, and checking for system alerts are generally sufficient. Your installer may recommend routine system checks as part of ongoing maintenance.
What is the efficiency of the NV14?
The NV14 is designed for high efficiency operation. For exact efficiency ratings and performance data, refer to the official NV14 manufacturer datasheet.
What are the input and output voltage ranges?
Input and output voltage ranges depend on the specific model and regional configuration. Consult the official NV14 technical documentation for full electrical specifications, including voltage and current limits.
What communication protocols does the NV14 use?
The NV14 commonly supports Wi-Fi–based monitoring and may offer additional communication options depending on the model. Refer to the manufacturer’s documentation for detailed protocol support.
