Specifications

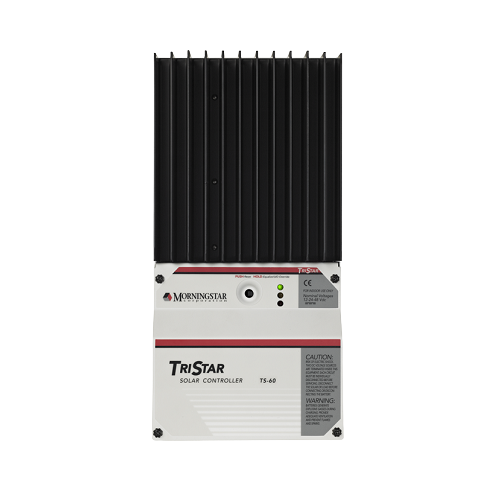

Morningstar TS-60 TriStar PWM Charge Controller

The Morningstar TriStar TS-60 PWM Charge Controller is a versatile three-function controller designed to provide reliable solar battery charging, load control, or diversion regulation. This controller operates in one of these modes at a time, allowing for flexible usage based on your specific needs. Multiple controllers can be used simultaneously to provide multiple functions.

Special Features

  • Constant voltage series PWM design for highly efficient battery charging
  • 4-stage charging for increased battery capacity and life (bulk charge, PWM regulation, float, and equalize)
  • Parallel operation for larger solar arrays, accommodating up to 300 amps or more
  • Load control functionality, starting large loads including motors and pumps with no damage to the controller
  • Diversion control to protect against battery overcharge, diverting excess energy to an alternate DC resistive load

Technology and Overview

The Morningstar TriStar TS-60 utilizes advanced technology and automated production to offer exciting features at a competitive cost. Its PWM design ensures efficient battery charging, while the 4-stage charging process enhances battery capacity and lifespan. The controller is UL listed and suitable for both solar home systems and professional applications.

Installation and Compatibility

The TriStar TS-60 is easy to install and compatible with 12V, 24V, and 48V battery systems. It is designed for use with solar, wind, or hydroelectric power sources and can handle parallel operation for larger solar arrays. The controller provides electronic short-circuit and overload protection with automatic reconnect for added safety.

Benefits and Applications

The Morningstar TriStar TS-60 offers numerous benefits, including efficient battery charging, load control, and diversion regulation. It is suitable for various applications, including solar home systems, off-grid cabins, RVs, marine vessels, and professional solar installations. Its advanced features and competitive cost make it an excellent choice for renewable energy systems.

Product Specifications

Model Morningstar TS-60 TriStar
Type PWM Charge Controller
Max Charging Current 60A
Supported Battery Voltages 12V, 24V, 48V
Maximum PV Input Voltage 125V
Wire Gauge #2 AWG
Operating Modes Charge control, Load control, Diversion control
Features LED Indicators, 4-stage charging, Electronic short-circuit and overload protection
