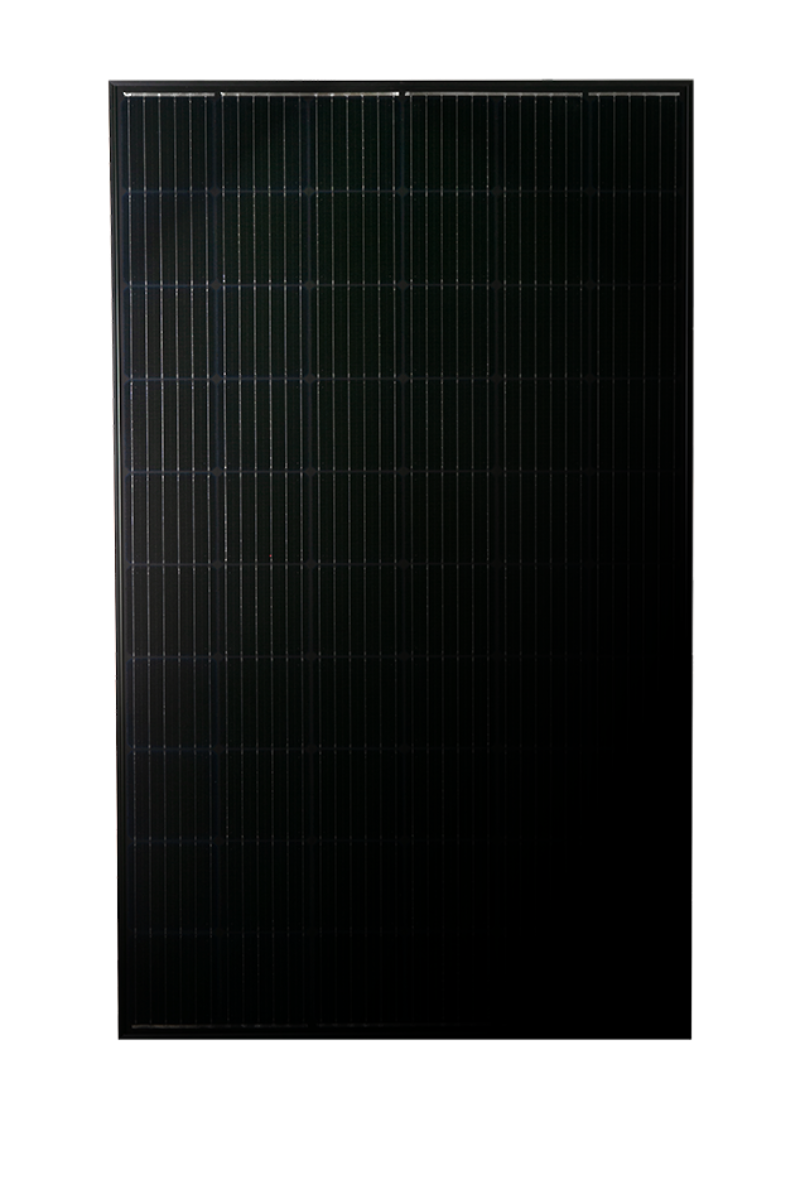

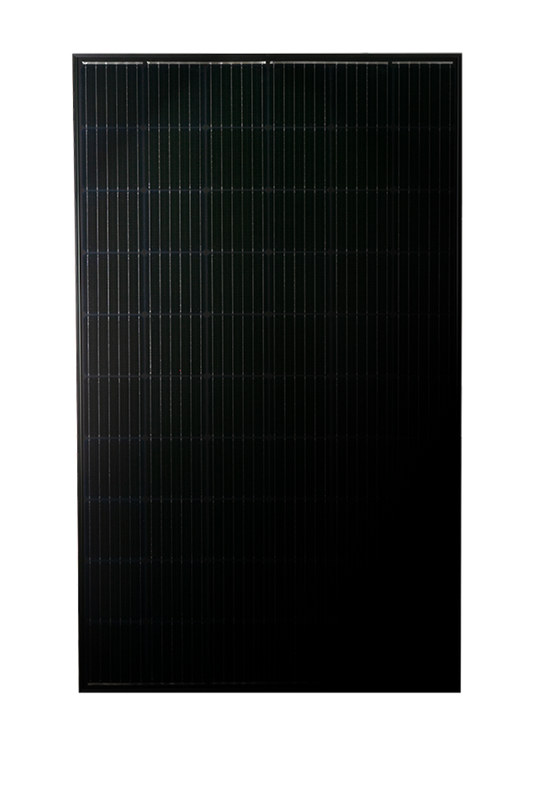

Mission Solar 345W Mono PERC Black Module MSE345SX5T (Pallet of 26)

Mission Solar 345W Mono PERC Black Module MSE345SX5T (Pallet of 26)

Regular price $86.99
Regular price -% Sale price $86.99
New
500 IN STOCK
Leave a Review

Mission Solar 345W Mono PERC Black Module MSE345SX5T (Pallet of 26)

Mission Solar 345W Mono PERC Black Module MSE345SX5T (Pallet of 26)

US Solar Supplier
MPN No: MSE345SX5T
In Stock
Regular price $86.99
Regular price -% Sale price $86.99

1
2
3
4
5
6

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Expected ship date Jan 28 - 31 About shipping

Payment

We offer multiple secure payment options for your convenience

View full details
Regular price $86.99
Regular price -% Sale price $86.99

Specifications

.PDF
Datasheet
Cell Type
P-type mono-crystalline
Number of Cells
60
Frame and Backsheet
Anodized aluminum
.PDF
Datasheet

Mission Solar 345W Mono PERC Black Backsheet Black Frame Module (Pallet of 26)

Features

The Mission Solar MSE345SX5T is a high-quality, American-made solar module designed for reliability and performance:

  • High Efficiency: Achieves 18.7% efficiency with a maximum power output of 345W.
  • Advanced PERC Technology: Features 6-busbar P-type monocrystalline silicon cells for enhanced performance and durability.
  • Extreme Weather Resilience: Withstands up to 5,600 Pa front load and 5,631 Pa rear load, ensuring reliability in harsh conditions.
  • PID Resistance: Exceptional resistance to potential-induced degradation (PID) for long-term performance.
  • Positive Power Tolerance: Guaranteed power tolerance of 0% to +3%.

Technology Overview

This module incorporates PERC (Passivated Emitter Rear Contact) technology, offering improved light capture and energy efficiency. The 60-cell monocrystalline design ensures a compact form factor, making it suitable for residential and commercial installations. The panel is built with a durable anodized aluminum frame and 3.2 mm tempered anti-reflective glass.

Installation

  • Dimensions: 68.82 × 41.5 × 1.6 inches (1748 × 1054 × 40 mm).
  • Weight: 44.8 lbs (20.3 kg).
  • Includes 1.0-meter cables with Staubli MC4 connectors for seamless integration.

Applications

  • Designed for residential, commercial, and industrial solar installations requiring reliable performance and robust construction.

Specifications

Category Specification
Electrical (STC)
Power Output (Pmax) 345 W
Efficiency 18.7%
Voltage (Vmp) 33.37 V
Current (Imp) 10.34 A
Open Circuit Voltage (Voc) 41.00 V
Short Circuit Current (Isc) 10.92 A
Mechanical
Dimensions (L×W×D) 68.82 × 41.5 × 1.6 in
Weight 44.8 lbs
Cell Configuration 60 P-type monocrystalline cells
Frame Anodized aluminum
Glass 3.2 mm tempered, low-iron, anti-reflective
Junction Box IP67 with 3 bypass diodes
Environmental
Operating Temp -40°F to +185°F
Max System Voltage 1000 V
Test Load (Front/Rear) 5,600 Pa / 5,631 Pa
Warranty
Product Warranty 12 years
Power Warranty 25 years (84.08% power retention at year 25)



Why Choose Mission Solar Energy?

Made in the USA: Manufactured in San Antonio, Texas, ensuring high-quality production standards and compliance with government project requirements like BAA and ARRA.
Long-Term Durability: Engineered for long-term performance with a robust design capable of withstanding harsh weather conditions.
25-Year Warranty: Backed by a comprehensive 25-year performance warranty, guaranteeing excellent energy production over time.

Why Buy From US Solar Supplier?

As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.

We update our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.

Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.

Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.

Expert Support: Our team is here to guide you every step of the way.

Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year performance guarantee and 12-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.

Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!

FAQs

Q: What is the power output of the Mission Solar 345W Mono PERC panel?
The Mission Solar 345W Mono PERC panel produces 345 watts of power, making it an efficient choice for both residential and commercial installations.

Q: Are Mission Solar 345W panels suitable for areas with low sunlight?
Yes, Mission Solar 345W panels are designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and early mornings or late afternoons.

Q: What kind of warranty does Mission Solar offer for the 345W panel?
Mission Solar offers a 12-year product warranty and a 25-year linear power output warranty, ensuring the panel delivers reliable performance over time.

Q: Are these panels compatible with different mounting systems?
Yes, Mission Solar 345W panels are compatible with a wide variety of standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted systems.

Q: How durable are Mission Solar 345W panels in harsh weather conditions?
The Mission Solar 345W panels are built to withstand extreme weather, including heavy snow, strong winds, and high heat. Their design also includes anti-reflective glass, which enhances their durability and efficiency.

Q: Can Mission Solar 345W panels help me save on energy costs?
Absolutely! The high efficiency of the Mission Solar 345W panel allows you to generate more electricity per square foot, which can reduce your energy bills and shorten the payback period on your solar investment.

Q: How many panels do I need for my home?
This depends on your energy usage and available space. As a general guide, for a residence or business using about 10,000 kWh/year, you would need approximately 29 Mission Solar 345W panels. Consult with a certified installer to get a precise estimate.

Q: How many panels are in each pallet?
Each pallet includes 26 high-efficiency Mission Solar 345W panels. By purchasing full pallets, you ensure both value and convenience for larger installations.

Q: Can I order less than a full pallet?
Contact US Solar Supplier for details.

Q: Are these panels available for immediate shipping?
Yes, these are in stock and ready to ship from our warehouse in Indiana, ensuring fast delivery for your solar project.
