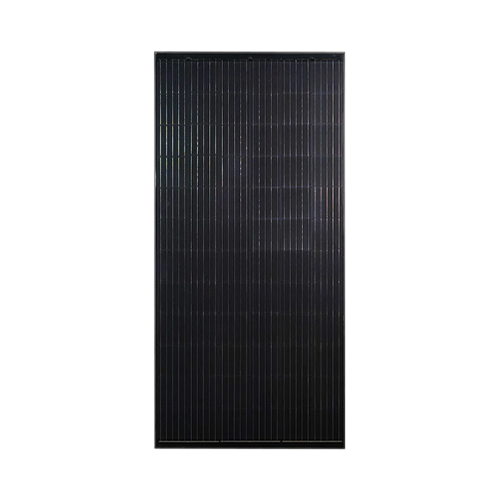

Mitrex M390-A1F 390Watt 72 Cells BoB Monocrystalline 40mm Black Frame Solar Panel

Mitrex M390-A1F 390Watt 72 Cells BoB Monocrystalline 40mm Black Frame Solar Panel

Regular price $168.60
Sale price $168.60 Regular price
1517 IN STOCK
No reviews
Leave a Review

MPN No: M390-A1F

Mitrex M390-A1F 390Watt 72 Cells BoB Monocrystalline 40mm Black Frame Solar Panel

Mitrex M390-A1F 390Watt 72 Cells BoB Monocrystalline 40mm Black Frame Solar Panel

No reviews
Leave a Review
Regular price $168.60
Sale price $168.60 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Mitrex
Weight
48.5 lb
Dimension
(LxWxH): 80.15 x 39.21 x 1.57in
Mitrex M390-A1F 390Watt 72 Cells BoB Monocrystalline 40mm Black Frame Solar Panel

This line of modules is the direct result of over three decades of design, manufacturing and use. Attending to every detail in the design and manufacture of our products, our process controls and testing methods have optimized module life and electrical energy production.




Description image



Mitrex Solar Specifications

Model M390-A1F
Series -
Manufacturer Mitrex


MECHANICAL

Specification Data
Cell Type Mono-crystalline
Cell Arrangement 72 [12x6)]
Dimensions 2036x996x40mm
Weight 22kg
Front / Back Glass 3.2 mm tempered glass
Frame Anodized aluminum alloy black frame
J-Box IP68, 3 bypass diodes
Cable 500mm, 1000mm, 1200mm
Cable Length (Including Connector) MC4


ELECTRICAL

Nominal Max. Power (Pmax) 100 W
Optimum Operating Voltage/Vmp(V) 41.9 V
Opt. Operating Current (Imp) 9.31 A
Open Circuit Voltage (Voc) 48.2 V
Short Circuit Current (Isc) 9.97 A


Warranty

  • 12 years of product material and process quality
  • 25 years linear power output warranty

* Refer to warranty document for terms and conditions

Documentation

Data Sheet


Detailed Information

The 390-Watt Monocrystalline Solar Panel from Mitrex Power is a versatile performer constructed with high quality tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel are high transmission and the textured glass allows for more efficient solar power harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, vehicle and RV installations and smaller applications.

High reliability

Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.

Better temperature coefficient allows for power attenuation at high temperature
