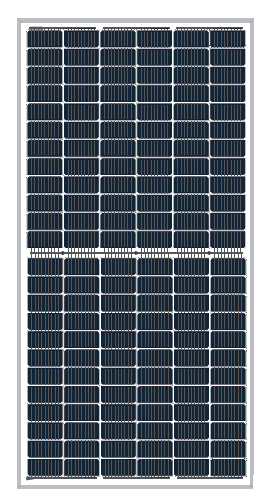

LONGi 435W Bifacial Dual‑Glass Half‑Cut Solar Panel LR4‑72HBD‑435M
Pallet Only: 30 Panels/Pallet
Key Benefits
High Efficiency: Up to 20.9% module efficiency with half‑cut M6 cells for strong power density.
Bifacial Gain: 70% ± 5% bifaciality enables meaningful rear‑side energy capture on reflective sites.
Long‑Term Performance: <2% first‑year loss; ~0.45%/yr years 2–30; 30‑year linear power warranty to 84.95%.
Proven Durability: 5400 Pa front / 2400 Pa rear static load ratings with dual 2.0 mm tempered glass.
Special Technology
Half‑Cut + MBB: Reduced resistive losses and improved shade tolerance.
Dual‑Glass Lamination: Enhanced moisture/UV resistance versus backsheet designs.
Low‑Temp Coefficients: −0.35%/°C (Pmax) maintains output in hot climates.
Warranty
30‑Year Linear Power Output Warranty (84.95% at year 30). Regional product/workmanship warranty applies.
Best Uses
Utility & Ground‑Mount: High kW per string and tracker‑friendly bifacial design.
Large C&I Rooftops: Fewer modules per array, lower BOS per watt.
Bifacial Design and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the LONGi 435W solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | LR4‑72HBD‑435M (Hi‑MO 4) |
| Cell Type | Monocrystalline PERC, Half‑Cut |
| Number of Cells | 144 (6×24) Bifacial |
| Max Power (Pmax) | 435 W (STC) / 324.9 W (NOCT) |
| Open Circuit Voltage (Voc) | 49.1 V (STC) / 45.9 V (NOCT) |
| Short Circuit Current (Isc) | 11.36 A (STC) / 9.18 A (NOCT) |
| Voltage at Max Power (Vmp) | 40.8 V (STC) / 38.0 V (NOCT) |
| Current at Max Power (Imp) | 10.66 A (STC) / 8.54 A (NOCT) |
| Module Efficiency | 20.9% |
| Power Tolerance | 0 ~ +5 W |
| Temperature Coefficient (Pmax) | −0.35%/°C |
| Temperature Coefficient (Voc) | −0.28%/°C |
| Temperature Coefficient (Isc) | +0.050%/°C |
| Operating Temperature | −40°C to +85°C |
| Nominal Operating Cell Temp (NOCT) | 45 ± 2°C |
| Max System Voltage | 1500 V DC (IEC/UL) |
| Max Series Fuse Rating | 25 A |
| Bifaciality | 70% ± 5% |
| Front/Back Glass | Dual glass, 2.0 mm coated tempered (front) / 2.0 mm tempered (back) |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, three diodes |
| Output Cable | 4 mm²; +400/−200 mm or ±1400 mm (customizable) |
| Dimensions (L × W × H) | 82.44 × 40.87 × 1.38 in |
| Weight | 60.63 lb |
| Mechanical Load | 5400 Pa (front) / 2400 Pa (rear) |
| Packing | 31 pcs/pallet; 155 pcs/20′ GP; 682 pcs/40′ HC |
| Fire / Protection Class | UL fire rated; Protection Class II |
| Warranty | 30‑Year Linear Power Output (84.95% at year 30) |
About LonGi:
Founded in 2000 in Xi’an by Li Zhenguo, LONGi is now the world’s largest monocrystalline silicon wafer manufacturer and a global leader in solar PV technology. It offers integrated solutions spanning wafers, cells, modules, and solar projects. Known for innovation, efficiency, and high bankability, LONGi drives the clean energy transition worldwide.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the LONGi LR4-72HBD-435M panel?
The LONGi LR4-72HBD-435M produces 435 watts of power, making it a high-performance option for residential, commercial, and utility-scale installations.
Q: Are LONGi LR4-72HBD-435M panels suitable for areas with low sunlight?
Yes, these bifacial panels are designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and during early morning or late afternoon sunlight.
Q: What kind of warranty does LONGi offer for the LR4-72HBD-435M panel?
LONGi offers a 12-year product warranty and a 30-year linear power output warranty, ensuring long-term performance and reliability.
Q: Are these panels compatible with different mounting systems?
Yes, the LR4-72HBD-435M is compatible with a wide range of industry-standard mounting systems, making them easy to install for both roof-mounted and ground-mounted applications.
Q: How durable are LONGi LR4-72HBD-435M panels in harsh weather conditions?
These panels are engineered to withstand extreme environments, including heavy snow loads, high wind speeds, and high heat. The dual-glass design with anti-reflective coating improves both durability and energy capture.
Q: Can LONGi LR4-72HBD-435M panels help me save on energy costs?
Absolutely! With their high efficiency and bifacial generation capability, these panels can produce more electricity per installation area, reducing your energy bills and improving ROI.
Q: How many panels do I need for my home?
For a home or business consuming around 10,000 kWh/year, you would typically need about 23 to 25 LONGi LR4-72HBD-435M panels. A certified installer can provide an accurate system design based on your location and needs.
Q: How many panels are in each pallet?
Each pallet contains 31 LONGi LR4-72HBD-435M panels, ideal for efficient transport and large installations.
