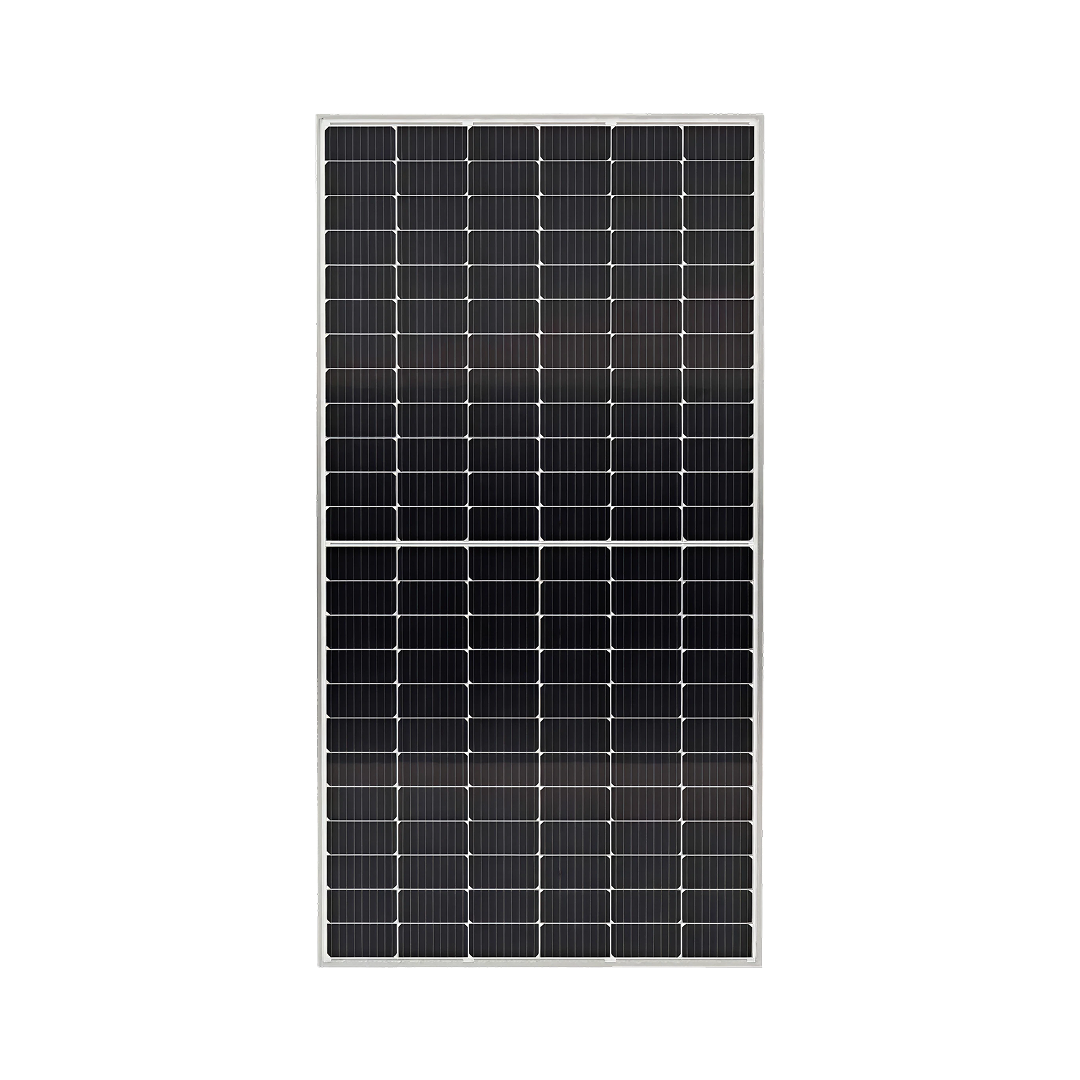

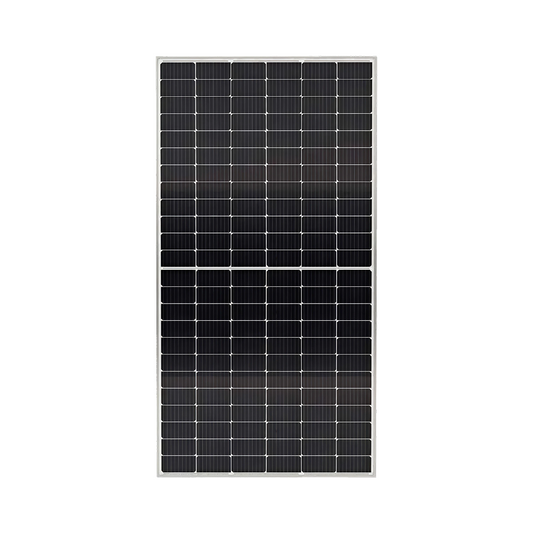

HT-SAAE 450W HT72-166M Bifacial Solar Panel

$179.50

-% $179.50

New

685 IN STOCK

Leave a Review

HT-SAAE 450W HT72-166M Bifacial Solar Panel

HT-SAAE Solar

MPN No: HT72-166M 450W

In Stock

$179.50

-% $179.50

Delivery

Expected ship date Jan 21 - 24 About shipping

Payment

We offer multiple secure payment options for your convenience

All HT-SAAE Solar products All 400W products

View full details

$179.50

-% $179.50

HT-SAAE 450W HT72-166M Bifacial Solar Panel

HT-SAAE 450W HT72-166M Bifacial Solar Panel

MPN No:

HT72-166M 450W

In Stock

Expected ship date Jan 21 - 24

$179.50

-% $179.50

Cell Type

Monocrystalline

Number of Cells

144

Frame and Backsheet

Anodized aluminum

.PDF

Datasheet

HT-SAAE 450W HT72-166M Bifacial Solar Panel

Features

The HT-SAAE HT72-166M 450W solar panel is designed for high efficiency and durability:

High Efficiency: Achieves up to 20.2% module efficiency with a maximum power output of 450W.
Advanced Cell Technology: Utilizes 144 half-cut monocrystalline PERC cells with 9BB technology for enhanced performance and reduced energy losses.
Durable Construction: Withstands mechanical loads of 5400 Pa (front) and 2400 Pa (rear) for reliable performance in extreme weather.
PID Resistant: Exceptional resistance to potential-induced degradation (PID) for long-term energy yield.
Long-Term Warranty: 15-year product warranty and 25-year linear power output warranty.

Technology Overview

This module incorporates advanced PERC (Passivated Emitter and Rear Cell) technology with half-cut cells, reducing internal resistance and improving energy conversion. The 9BB design minimizes shading effects and maximizes energy production under varying conditions.

Installation

Dimensions: 83.27 × 41.42 × 1.38 inches (2115 × 1052 × 35 mm).
Weight: 54 lbs (24.5 kg).
Equipped with 4 mm² cables and MC4-compatible connectors for simple integration.

Applications

Ideal for utility-scale and commercial rooftop solar projects requiring high output and reliability.
Compatible with 1500V DC system configurations.

Specifications

Category	Specification
Electrical (STC)
Power Output (Pmax)	450 W
Efficiency	20.2%
Voltage (Vmp)	41.1 V
Current (Imp)	10.96 A
Open Circuit Voltage (Voc)	50.0 V
Short Circuit Current (Isc)	11.83 A
Mechanical
Dimensions (L×W×D)	83.27 × 41.42 × 1.38 in
Weight	54 lbs
Cell Configuration	144 half-cut monocrystalline cells (166 × 83 mm)
Frame	Anodized aluminum
Glass	High-transmission tempered glass
Junction Box	IP68-rated
Environmental
Operating Temp	-40°C to +85°C
Max System Voltage	1500 V
Test Load (Front/Rear)	5400 Pa / 2400 Pa
Warranty
Product Warranty	15 years
Power Warranty	25 years (minimum 84.8% power retention at year 25)

Why Buy From US Solar Supplier?

As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.

We update our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.

Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.

Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.

Expert Support: Our team is here to guide you every step of the way.

Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year performance guarantee and 12-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.

Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!

FAQs

Q: What is the power output of the HT-SAAE 450W HT72-166M Bifacial panel?
The HT-SAAE 450W HT72-166M Bifacial panel produces 450 watts of power, making it an efficient solution for residential, commercial, and utility-scale installations.

Q: Are HT-SAAE 450W panels suitable for areas with low sunlight?
Yes, the HT-SAAE 450W panels are designed to perform efficiently in low-light conditions, including hazy or cloudy skies, early mornings, and late afternoons.

Q: What kind of warranty does HT-SAAE offer for the HT72-166M Bifacial panel?
HT-SAAE offers a 12-year product warranty and a 30-year linear power output warranty, ensuring consistent and reliable performance over time.

Q: Are these panels compatible with different mounting systems?
Yes, HT-SAAE 450W HT72-166M Bifacial panels are compatible with a wide range of standard mounting systems, facilitating easy installation for both ground-mounted and rooftop applications.

Q: How durable are HT-SAAE 450W panels in harsh weather conditions?
These panels are built to withstand extreme weather conditions, including heavy snow, high winds, and intense heat. The bifacial design also enhances energy capture, improving overall durability and efficiency.

Q: Can HT-SAAE 450W panels help me save on energy costs?
Absolutely! The high efficiency and bifacial energy capture of the HT-SAAE 450W panels increase electricity generation, reducing energy costs and shortening the payback period of your solar investment.

Q: How many panels do I need for my project?
This depends on your energy usage and available space. For an annual consumption of 10,000 kWh, you would need approximately 23 HT-SAAE 450W panels. A certified installer can provide a precise estimate tailored to your needs.

Q: How many panels are in each pallet?
Each pallet includes 30 HT-SAAE 450W HT72-166M Bifacial panels, ensuring convenience and cost-effectiveness for larger projects.

Q: Can I order less than a full pallet?
Contact US Solar Supplier for details.

Q: Are these panels available for immediate shipping?
Yes, these panels are in stock and ready to ship from our warehouse in Indiana, ensuring prompt delivery for your solar project.
