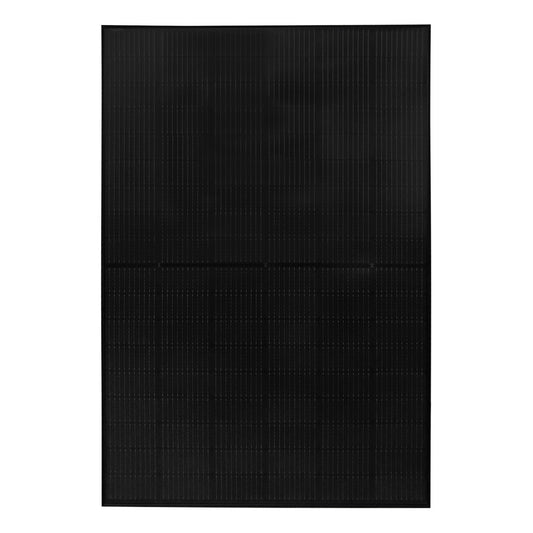

HT-SAAE Solar 455W N-Type TOPCon Bifacial Double Glass Solar Panel
HT54-18X(ND)-F 455W
Pallet of 36
The module features durable double-glass construction and advanced TOPCon cell technology that minimizes degradation while improving low-light performance and overall system output. With support for 1500V DC systems, the module allows longer string configurations and helps reduce balance-of-system costs for solar projects.
Key Technology
-
N-Type TOPCon Cell Technology
Provides higher efficiency, improved durability, and lower degradation compared to conventional P-type modules. -
Half-Cut Cell Design
Reduces internal resistance and improves heat dissipation, enhancing module efficiency and reducing hot-spot risk. -
Super Multi-Busbar (SMBB)
Optimized multi-busbar architecture improves current collection, reduces resistance losses, and increases reliability. -
Bifacial Double-Glass Construction
Captures reflected sunlight from the rear side of the module, improving overall energy production in suitable installations. -
Enhanced PID Resistance
Modules undergo extended PID testing to ensure stable long-term performance with minimal degradation. -
High Mechanical Strength
Certified to withstand 5400 Pa front load and 2400 Pa rear load, ensuring durability in harsh weather conditions.
Best Uses
-
Residential Rooftop Solar Systems
High efficiency and compact form factor make it ideal for modern residential PV installations. -
Ground-Mount Bifacial Systems
Rear-side energy gain increases total system output in reflective environments.
Warranty
- Product Warranty: 30 years (rooftop installations)
- Product Warranty (Ground Mount): 15 years
- Performance Warranty: 30-year linear power output warranty
- Annual Degradation: 0.4% per year after the first year
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | HT Solar (HT-SAAE) |
| Model | HT54-18X(ND)-F |
| Maximum Power (Pmax) | 455 W |
| Cell Technology | N-Type TOPCon Monocrystalline |
| Cell Configuration | 108 Half-Cells (6 × 18) |
| Module Efficiency | Up to 22.8% |
| Open Circuit Voltage (Voc) | ≈ 38.7 V |
| Maximum Power Voltage (Vmp) | ≈ 32.4 V |
| Short Circuit Current (Isc) | ≈ 14.47 A |
| Maximum Power Current (Imp) | ≈ 13.76 A |
| Temperature Coefficient (Pmax) | -0.31% / °C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to 70°C |
| Nominal Operating Cell Temperature (NMOT) | 43 ± 2°C |
| Dimensions | 67.80 × 44.65 × 1.18 in. |
| Weight | 52.9 lb |
| Glass | 2 mm tempered glass (front) + 2 mm heat-strengthened glass (rear) |
| Frame | Black Frame |
| Junction Box | IP68 rated |
| Connector | Stäubli MC4 compatible |
| Cable Length | 1200 mm (+) / 1200 mm (-) |
| Fire Rating | Class C |
| Packaging | 36 modules per pallet / 936 modules per 40' HQ container |
About HT Solar:
HT Solar, part of Shanghai Aerospace Automobile Electromechanical Co., Ltd. (HT-SAAE), is a global solar technology manufacturer specializing in high-efficiency photovoltaic modules. The company combines advanced cell technologies with rigorous manufacturing standards to deliver reliable solar products for residential, commercial installations worldwide.
High-Efficiency Bifacial Solar Power for Modern PV Systems
The HT Solar HT54-18X(ND)-F 455W module combines advanced TOPCon technology, bifacial energy production, and durable double-glass construction to deliver reliable long-term solar performance and increased energy yield.
