HT-SAAE 545W (Pallet ot 31) Bifacial Solar Panel HT72-182M-545W

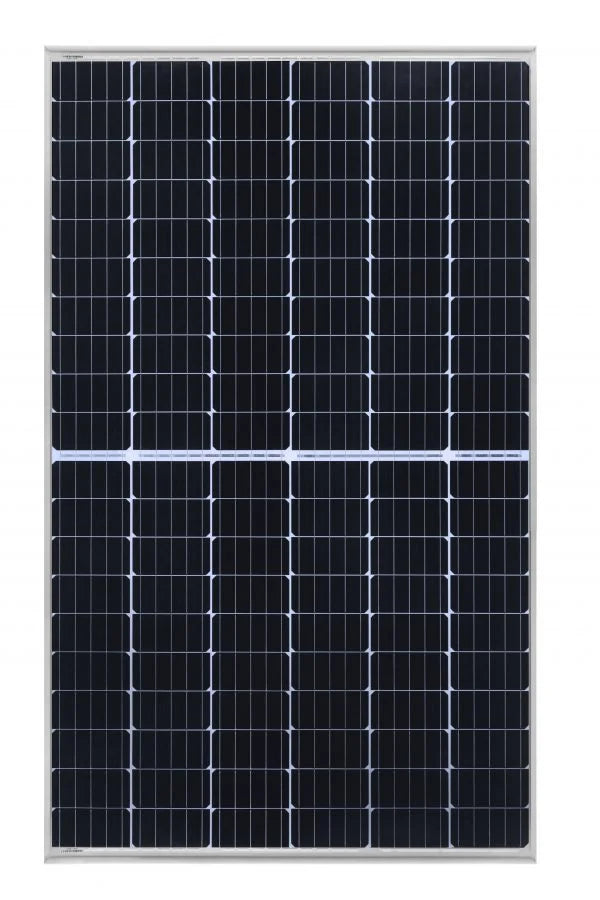

The HT72-182M-545W is a high-efficiency bifacial monocrystalline solar module engineered for utility-scale and commercial PV installations. Built with 182 mm half-cut cells, a robust aluminum frame, and bifacial PERC technology, this module delivers strong front-side power with additional rear-side energy gains—helping maximize total system output and reduce BOS costs.
Key Technology
-
Bifacial PERC Half-Cut Cell Technology
Half-cut cells reduce internal losses and improve performance, while bifacial design enables additional rear-side energy generation. -
High Power Density (545W)
Optimized for large-format arrays to increase power per string and lower balance-of-system costs. -
High-Voltage System Ready
Designed for systems up to 1500 V DC, allowing longer string lengths and improved system efficiency. -
Strong Mechanical Performance
Certified to withstand 5400 Pa snow load and 2400 Pa wind load, suitable for harsh environments.
Best Uses
-
Utility-Scale Solar Projects
High wattage and bifacial gains make it ideal for ground-mount power plants. -
Commercial & Industrial Installations
Excellent choice for large rooftops and carport systems. -
High-Temperature & Challenging Sites
Reliable performance in demanding climates with strong structural integrity.
Warranty
-
Product Warranty: 12 years
-
Performance Warranty: 30-year linear power output warranty
-
Power Tolerance: 0 ~ +5 W
Product Specifications
|
Specification |
Details |
|---|---|
|
Manufacturer |
HT-SAAE |
|
Model |
HT72-182M-545W |
|
Cell Technology |
Monocrystalline PERC, bifacial, half-cut |
|
Cell Size / Count |
182 × 91 mm, 144 cells (6 × 24) |
|
Maximum Power (Pmax) |
545 W |
|
Module Efficiency |
21.1% |
|
Operating Voltage (Vmp) |
41.80 V |
|
Operating Current (Imp) |
13.05 A |
|
Open-Circuit Voltage (Voc) |
49.65 V |
|
Short-Circuit Current (Isc) |
13.95 A |
|
Temperature Coefficient (Pmax) |
-0.39% / °C |
|
Maximum System Voltage |
1500 V DC (UL / IEC) |
|
Maximum Series Fuse Rating |
25 A |
|
Module Dimensions |
89.96 × 44.6 × 1.38 in |
|
Weight |
60.0 lb |
|
Front Glass |
High-transmission tempered glass |
|
Frame |
Anodized aluminum alloy |
|
Junction Box |
IP68 |
|
Connectors |
MC4 / MC4 compatible |
|
Pallet Quantity |
31 modules |
About HT-SAAE:
HT‑SAAE is a Chinese solar brand under Shanghai Aerospace Automobile Electromechanical Co., Ltd., a state‑owned company linked to China Aerospace Science and Technology Corporation. It makes Tier 1 photovoltaic modules and integrated solar PV products with global certification and long‑term reliability.
High-Power Bifacial Performance for Large-Scale Solar
The HT-SAAE HT72-182M-545W combines high wattage, bifacial energy gains, and proven durability—making it a reliable, cost-effective choice for utility-scale and commercial solar projects focused on long-term performance and value.
