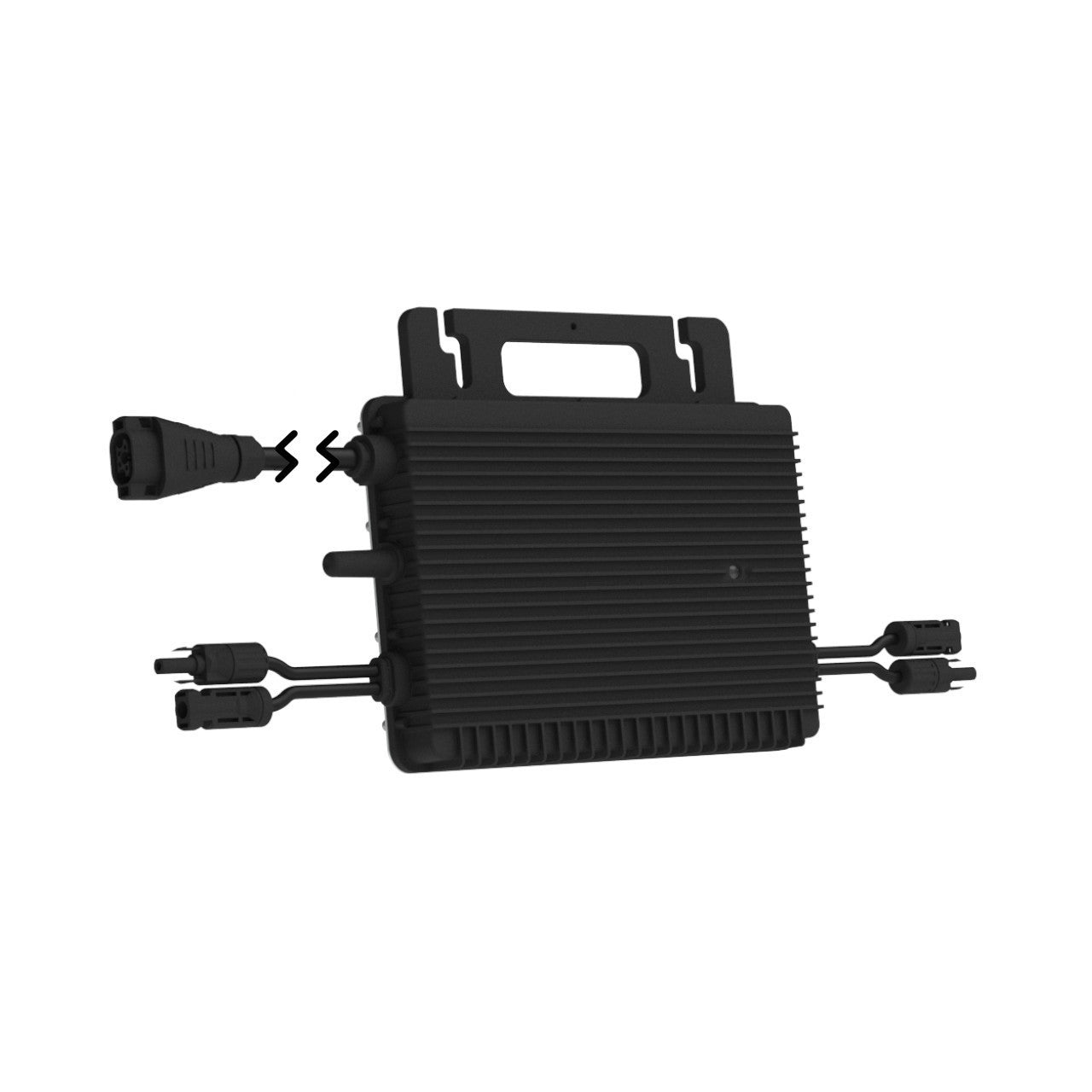

Hoymiles HMS Microinverter HMS-800-2T-NA
HMS-800-2T-NA
Specifications
Hoymiles HMS Microinverter HMS-800-2T-NA
Key Features
- 800W Peak Output Power – Supports high-performance solar panel systems.
- Dual-Input MPPT Design – Independently optimizes two PV modules for maximum energy harvest.
- Wide Compatibility – Works with 320W to 540W+ solar panels.
- PV Rapid Shutdown Compliant – Meets NEC-2017, NEC-2020 Article 690.12, and CEC-2021 Sec 64-218 standards for enhanced rooftop safety.
- Sub-1G Wireless Communication – Ensures stable monitoring and real-time data transmission.
- High CEC Efficiency (96.7%) – Maximizes power conversion with minimal energy loss.
- Outdoor-Rated IP67 Enclosure – Protects against harsh weather conditions.
- Lightweight & Compact – Only 3.2 kg (7.05 lbs) for easy installation.
Applications
- Residential and commercial solar PV systems
- Rooftop and ground-mounted installations
- Systems requiring module-level MPPT optimization
- Locations needing rapid shutdown compliance
Installation
The HMS-800-2T-NA microinverter simplifies solar installations by allowing connection of two high-power panels per unit. Its plug-and-play design and natural convection cooling make it easy to install and maintain without additional cooling components.
Advanced Performance & Monitoring
With 99.8% MPPT efficiency and Sub-1G wireless communication, the HMS-800-2T-NA ensures optimal performance and real-time monitoring via Hoymiles S-Miles Cloud. This enables easy remote tracking of system health and energy production.
About Hoymiles
Hoymiles is a leading global manufacturer of smart solar solutions, specializing in high-performance microinverters that provide reliable, safe, and efficient power conversion for residential and commercial solar installations.
Specifications
| Parameter | Details |
|---|---|
| Model Number | HMS-800-2T-NA |
| Peak Output Power | 800W |
| Maximum Continuous Output Power | 720W |
| Input Voltage Range | 16V – 60V |
| Start-Up Voltage | 22V |
| Maximum Input Current | 2 × 14A |
| Maximum Short-Circuit Current | 2 × 25A |
| MPPT Efficiency | 99.8% |
| CEC Peak Efficiency | 96.7% |
| Nominal Output Voltage | 240V / 208V |
| Output Frequency | 60Hz |
| Power Factor | >0.99 default (adjustable) |
| Enclosure Rating | IP67 (NEMA6) Outdoor Rated |
| Cooling Method | Natural Convection (No Fans) |
| Communication | Sub-1G Wireless |
| Dimensions (W × H × D) | 10.28 × 7.09 × 1.38 in |
| Weight | 7.05 lbs |
| Compliance | UL 1741, IEEE 1547, NEC 690.12, CEC-2021 |
