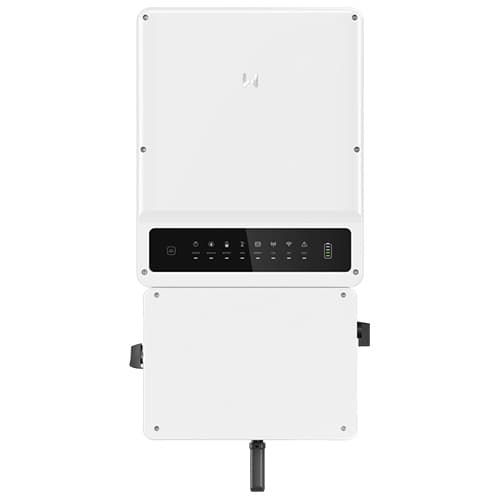

Goodwe, GW8600A-ES, Split Phase Hybrid Inverter, 8600w 4 MPPT With Ac Bypass

Goodwe, GW8600A-ES, Split Phase Hybrid Inverter, 8600w 4 MPPT With Ac Bypass

$3,759.46
$3,759.46

Goodwe, GW8600A-ES, Split Phase Hybrid Inverter, 8600w 4 MPPT With Ac Bypass

Goodwe, GW8600A-ES, Split Phase Hybrid Inverter, 8600w 4 MPPT With Ac Bypass

No reviews
$3,759.46
$3,759.46
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
GoodWe
Weight
70.5 lb
Dimension
(LxWxH): 6.9×16.3×33.2

The GoodWe A-ES Series is a split-phase hybrid inverter designed exclusively for the Americas region. With a power capacity ranging from 5 kW to 9.6 kW, this hybrid inverter is tailored to enhance the self-consumption of solar energy. GoodWe A-ES is compatible with high voltage (80-495V) batteries, enabling efficient energy storage. It features up to 4 MPPTs (Maximum Power Point Tracking), allowing seamless adaptation to complex residential rooftops. The A-ES inverter is equipped with rapid battery charging functionality and excels in providing backup power for large loads, reaching up to 9.6 kW.

Key Features:

  • Optional AC bypass switch
  • Integrated AFCI (Arc Fault Circuit Interrupter) & rapid shutdown
  • 4 MPPTs & 150% DC input oversizing
  • In-built smart meter

Specifications:

  • Power Capacity: 5 kW to 9.6 kW
  • Battery Compatibility: High voltage (80-495V) batteries
  • MPPTs: Up to 4
  • Hybrid Functionality: Yes (HV - High Voltage)
  • Backup Power: Up to 9.6 kW
  • AC Bypass Switch: Optional
  • AFCI: Integrated
  • DC Input Oversizing: 150%
  • Smart Meter: In-built

Additional Information: The GoodWe A-ES Series hybrid inverter adheres to safety regulations specific to the American market, incorporating an Arc Fault Circuit Interrupter (AFCI) and Rapid Shutdown features. This ensures not only efficiency and reliability but also enhanced security. The A-ES inverter's ability to accommodate up to 4 MPPTs enables efficient distribution of solar power across diverse residential rooftops. Moreover, the 150% DC input oversizing capability optimizes power output, even during low solar radiation conditions.

For detailed technical specifications, refer to the official GoodWe A-ES Series specification sheet: SPECIFICATION SHEET

The integrated AFCI, rapid shutdown, and advanced MPPT capabilities make the GoodWe A-ES Series an ideal solution for residential solar energy systems in the Americas.

Please note that the information provided is based on the provided HTML content and the official specification sheet. For the most accurate and up-to-date details, refer to the official product documentation.
