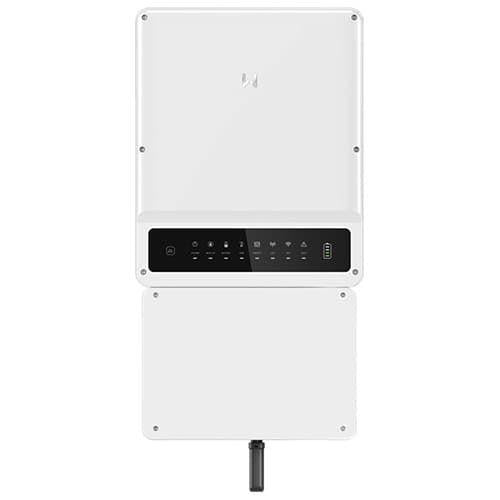

Goodwe, GW7600A-BP, Ac Coupled Hv Retrofit Inverter, 7600w

Goodwe, GW7600A-BP, Ac Coupled Hv Retrofit Inverter, 7600w

$3,397.17
$3,397.17

Goodwe, GW7600A-BP, Ac Coupled Hv Retrofit Inverter, 7600w

Goodwe, GW7600A-BP, Ac Coupled Hv Retrofit Inverter, 7600w

No reviews
$3,397.17
$3,397.17
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
GoodWe
Weight
70.5 lb
Dimension
(LxWxH): 6.9in×16.3in × 33.3

The Goodwe GW7600A-BP is part of the A-BP series and is designed to enhance existing on-grid PV systems by seamlessly integrating with high voltage batteries for a complete storage solution. This inverter can optimize the PV system's performance independently of the grid, ensuring that the on-grid inverter remains operational even during grid disruptions. The A-BP features frequency shifting technology to regulate the on-grid inverter's output power and adjust AC frequency to prevent battery overcharging. With built-in smart meter and plug & play AC connectors, installation is user-friendly. The A-BP supports whole home backup and compatibility with various on-grid inverter brands.

Specifications:

  • Model: GW7600A-BP
  • Series: -
  • Manufacturer: Goodwe

GENERAL SPECIFICATION:

  • Operating Temperature Range: -31°F140°F (-35°C60°C)
  • Relative Humidity: 0~95%
  • Max. Operating Altitude: ≤13123ft (4000m)
  • Cooling Method: Intelligent Fan
  • Display: LED & APP (WiFi, Bluetooth)
  • Communication with BMS: RS485; CAN
  • Communication with Meter: RS485
  • Communication with Portal: Wi-Fi; LAN (Optional)
  • Weight: 70.5lb (32kg)
  • Dimensions (W×H×D): 16.3in × 33.1in × 6.9in (415mm × 841mm × 175mm)
  • Noise Emission: <45dB
  • Topology: Transformerless
  • Self-consumption at Night: <20W
  • Ingress Protection Rating: NEMA Type 4X
  • Mounting Method: Wall Bracket

Warranty:

  • 10 Years
  • Refer to warranty document for terms and conditions

Documentation:

Detailed Information:

  • Micro-grid applications
  • Ultra rapid charge
  • High reliability
  • Whole home backup
  • Automatic frequency shifting
  • Quality and certifications: UL1741 SA, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1

Please note that the information provided is based on the provided HTML content. For the most accurate and up-to-date details, refer to the official product documentation.
