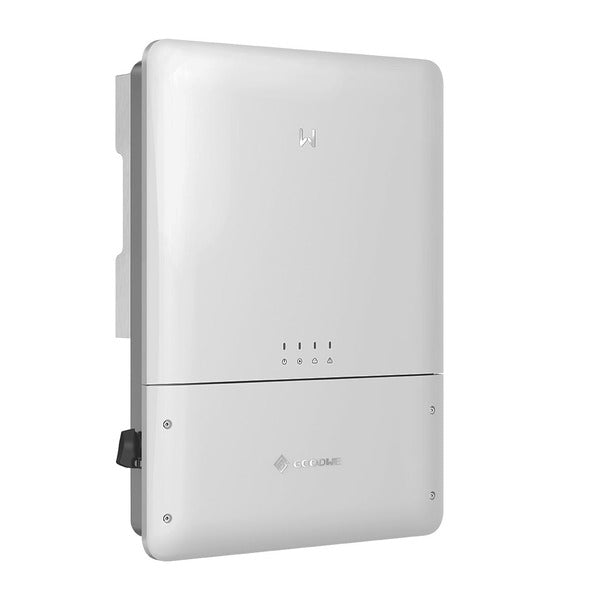

GoodWe 9.6 kW GW9600A-MS PV Inverter

Introducing the GoodWe 9.6 kW GW9600A-MS PV Inverter – a high-quality solution for converting solar energy into usable electricity. This PV inverter is designed to deliver outstanding performance and reliability, making it an excellent choice for residential and small-scale commercial solar installations.

  • Efficient Energy Conversion: The GW9600A-MS inverter efficiently converts solar energy into electricity, maximizing your solar system's energy production.
  • Reliable Performance: Built with high-quality components, the GoodWe inverter ensures reliable and long-term operation even in challenging conditions.
  • User-Friendly Design: Featuring a user-friendly design, installation and operation are made easy for both professionals and homeowners.

Technology and Overview

The GoodWe 9.6 kW GW9600A-MS PV Inverter incorporates advanced technology to efficiently convert DC solar power into AC electricity. It is designed to provide optimal performance and reliability for your solar energy system.

Installation and Compatibility Overview

Installing the GW9600A-MS inverter is straightforward, and it is compatible with various solar systems and configurations. Whether you're setting up a residential rooftop system or a small commercial installation, this inverter offers versatility and ease of integration.

Benefits and Applications Overview

The GoodWe 9.6 kW GW9600A-MS PV Inverter offers numerous benefits, including efficient energy conversion and reliable performance. It is suitable for residential and small-scale commercial applications, contributing to cost savings and sustainability. With its user-friendly design, it simplifies the installation process and provides a seamless experience for both professionals and homeowners.

Product Specifications



Specification Details
MPN GW9600A-MS
Max. Input Power (W) 15000
Max. Input Voltage (V)*1 600
MPPT Operating Voltage Range (V) 80 ~ 550
Start-up Voltage (V) 150
Nominal Input Voltage (V) 380
Max. Input Current per MPPT (A) 12.5
Max. Short Circuit Current per MPPT (A) 15.2
Number of MPP Trackers 4
Number of Strings per MPPT 1
Nominal Apparent Power Output to Utility Grid (VA) 9600 / 9600
Max. Apparent Power Output to Utility Grid (VA) 9600
Nominal Output Voltage (V) 208 / 240
Output Voltage Range (V) 211 ~ 264@240 / 183 ~ 229@208
Nominal AC Grid Frequency (Hz) 60
Max. AC Current Output to Utility Grid (A) 40
Power Factor ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3%
Max. Efficiency 0.976
CEC Efficiency 97.1%@240 /
96.7%@208
MPPT Efficiency 0.999
PV Insulation Resistance Detection Integrated
Residual Current Monitoring Integrated
PV Reverse Polarity Protection Integrated
Anti-islanding Protection Integrated
AC Overcurrent Protection Integrated
AC Overvoltage Protection Integrated
AFCI Integrated
Operating Temperature Range -31°F ~ +140°F (-35°C ~ +60°C)
Relative Humidity 0 ~ 95%
Max. Operating Altitude 13123ft (4000m)
Cooling Method Smart Fan Cooling
User Interface LED, APP
Communication with Portal WiFi, LAN (Optional)
Weight 70.5lb (32kg)
Dimension (W × H × D) 16.3 × 31.1 × 6.9 in (415 × 791 × 175 mm)
Topology Non-isolated
Self-consumption at Night (W) <20
Ingress Protection Rating Type 4X
Mounting Method Wall Mounted
Grid Interconnection UL1741 SA, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1
Safety Regulations UL 1741, CSA 22.2 No. 107-01, UL 1998, UL1699B
Electromagnetic Compatibility FCC part15 CLASS B
