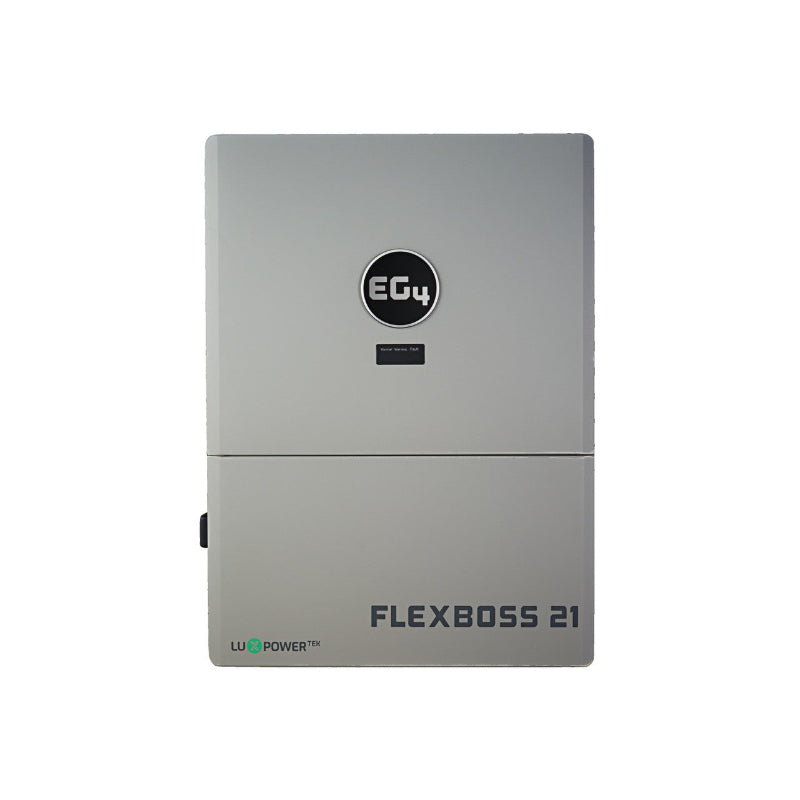

EG4 FLEXBOSS21 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT
EG4 FLEXBOSS21 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT
EG4 FLEXBOSS21 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT
EG4 FLEXBOSS21 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
EG4 FLEXBOSS21 Inverter/Charger 16000W 48V 120/240VAC 21000W MPPT
EG4FLEXBOSS21
EG4 FLEXBOSS21 Inverter-Charger 16000W 48V 120/240VAC 21000W MPPT
Key Features:
- 16kW Split-Phase Hybrid Inverter – Supports off-grid, grid-tied, and backup power applications.
- Up to 21kW Solar Input – Three independent MPPTs with 600VDC max input.
- Transformerless High-Frequency Design – Provides efficient and reliable operation.
- Parallel Capability – Connect up to 16 units for a total system output of 256kW.
- Battery & Grid Integration – Works with 48V lithium and lead-acid batteries, with closed-loop communication support.
- Built-in Rapid Shutdown Compliance – Meets NEC 690.12 & CSA C22.2#330:2017 safety standards.
- Wi-Fi Monitoring & Remote Adjustments – Integrated plug-in Wi-Fi device for mobile monitoring and control.
- Fast Transfer Time – 10ms to 20ms automatic switching for uninterrupted power.
- 10-Year Standard Warranty – Ensures long-term reliability.
Best Applications:
- Off-grid homes and remote installations
- Backup power for residential and commercial systems
- Smart grid-interactive solar energy management
- Scalable hybrid solar power plants
Advanced Technology & Performance:
The EG4 FlexBOSS 21 is a hybrid inverter and charger, capable of operating off-grid, on-grid, or in backup mode. Its high-frequency transformerless design allows for efficient power conversion, while the three MPPT inputs enable flexible PV array configurations. The closed-loop communication system ensures optimal battery charging and discharging, improving overall efficiency and lifespan.
Installation & Compatibility:
- Compatible with EG4 48V batteries and other lithium/lead-acid batteries.
- 120/240V split-phase output with 208V support for commercial applications.
- Integrated DC disconnects and AFCI/GFDI protections.
- Wi-Fi, CAN, and RS485 connectivity for advanced monitoring.
About EG4 Electronics:
EG4 Electronics is a leading provider of smart energy solutions, specializing in solar inverters, battery storage, and monitoring systems. With a focus on efficiency, reliability, and scalability, EG4 products offer high-quality solutions for residential, commercial, and off-grid applications.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | EG4 FlexBOSS 21 |
| AC Output Voltage | 120/240VAC (Split-Phase) / 120/208VAC (L1/L2/N) |
| Nominal Power Output | 16kW (PV & Battery), 12kW (Battery Only) |
| Maximum PV Input | 21kW |
| Number of MPPTs | 3 (2 Inputs per MPPT for MPPT 1 & 2, 1 Input for MPPT 3) |
| Maximum DC Input Voltage | 600VDC |
| MPPT Voltage Range | 120-440VDC |
| Peak Power Output | 24kW (0.5 sec) / 18kW (1 sec) |
| Transfer Time | 10ms (Configurable) / 20ms (Parallel Mode) |
| Battery Voltage | 48VDC |
| Battery Charging Power | 12kW Max |
| Battery Compatibility | Lead-Acid / Lithium |
| Parallel Capability | Up to 16 Units (256kW Total) |
| Enclosure Rating | NEMA 4X |
| Cooling Concept | Forced Air Cooling |
| Dimensions (H x W x D) | 30.43" x 22.28" x 11.22" |
| Weight | 88 lbs |
| Operating Temperature | -25°C to 60°C (-13°F to 140°F) |
| Noise Emission | <50dB @ 3ft |
| Certifications | UL 1741 SA, IEEE 1547, CSA 22.2, NEC 690.12 (RSD), FCC Part 15 |
