Fronius, 4,210,077,801, Primo 12.5-1 208-240vac Lite

Fronius, 4,210,077,801, Primo 12.5-1 208-240vac Lite

$2,963.95
$2,963.95
SOLD OUT
SOLD OUT

Fronius, 4,210,077,801, Primo 12.5-1 208-240vac Lite

Fronius, 4,210,077,801, Primo 12.5-1 208-240vac Lite

No reviews
$2,963.95
$2,963.95
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Fronius

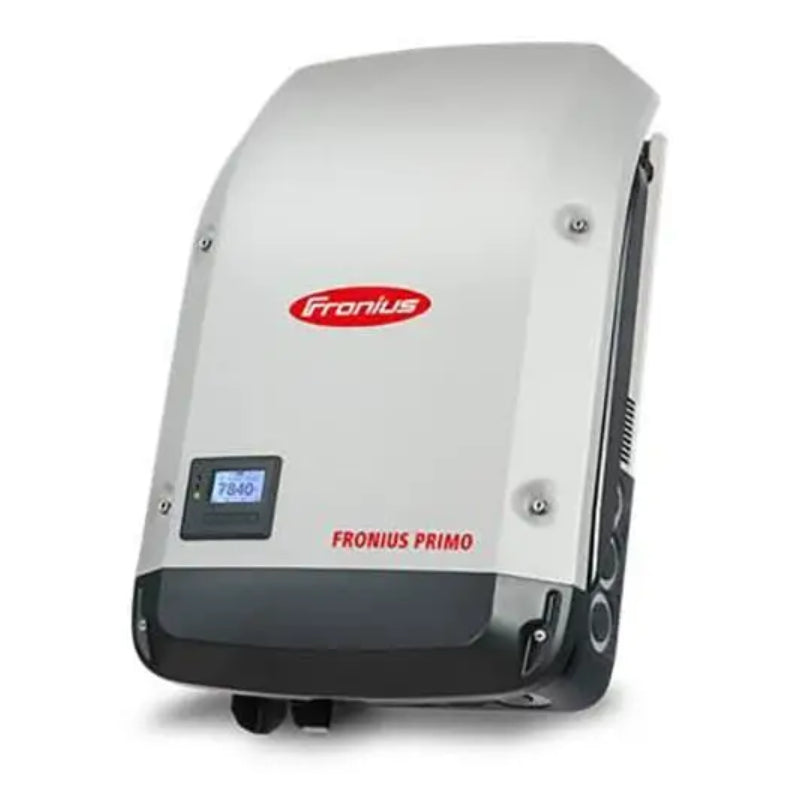

The Fronius Primo 12.5-1 208-240vac Lite features the Snapinverter generation with a simplified hinged mounting system that enhances installation and service convenience. The inverter comprises two main parts: the power stage and the connection compartment, facilitating a straightforward installation process.

Specifications:

  • Model: 4210077801
  • Manufacturer: Fronius

General Specifications:

  • Number of MPPT: 2
  • Recommended PV Power (kWp): 10.0 - 15.0 kW
  • Max. Usable Input Current: 33.0 / 18.0 A
  • Max. Usable Input Current Total (MPPT1 + MPPT2): 51 A
  • Max. Array Short Circuit Current (1.5 * Imax): 49.5 / 27 A
  • Nominal Input Voltage: 425 V
  • Operating Voltage Range: 80 - 600 V
  • MPP Voltage Range: 260 - 480 V
  • Max. Input Voltage (Udc max): 1000 V
  • Integrated DC String Fuse Holders: 4- and 4+ for MPPT 1 / no fusing required on MPPT 2
  • Wi-Fi / Ethernet LAN: Wireless standard 802.11 b/g/n / Fronius Solar.web, SunSpec Modbus TCP, JSON
  • USB (A socket): Datalogging and inverter update possible via USB
  • 2x RS422 (RJ45 socket): Fronius Solar Net
  • Serial RS485: SunSpec Modbus RTU
  • 6 inputs and 4 digital I/Os: Load management; signaling, multipurpose I/O

Warranty:

  • Manufacturer Warranty: 10 Years
  • Refer to the warranty document for terms and conditions

For more details, refer to the Data Sheet.

Quality and Certifications:

  • UL 1741-2010 Second Edition (incl. UL1741 Supplement SA 2016-09 for California Rule 21 and Hawaiian Electric Code Rule 14H)
  • UL1998 (for functions: AFCI, RCMU, and isolation monitoring)
  • IEEE 1547-2003, IEEE 1547.1-2003, ANSI/IEEE C62.41, FCC Part 15 A & B
  • NEC 2017 Article 690, C22. 2 No. 107.1-16
  • UL1699B Issue 2 -2013, CSA TIL M-07 Issue 1 -2013
