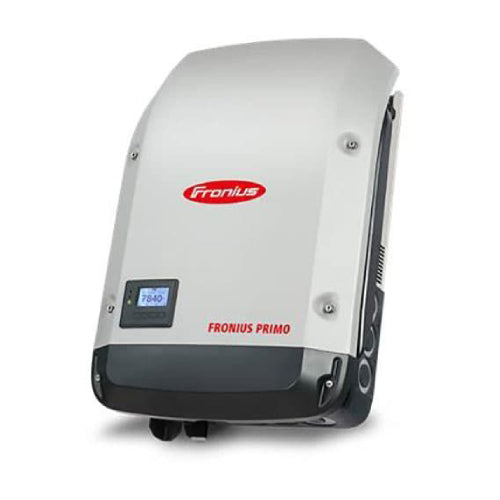

8.2kW FRONIUS 4,210,060,801 PRIMO 8.2-1 LITE Inverter
MPN No: 4,210,060,801
Contact us for Delivery Date
Out Of Stock
1,899.00
-5%
$1,799.99
8.2kW FRONIUS 4,210,060,801 PRIMO 8.2-1 LITE Inverter
8.2kW FRONIUS 4,210,060,801 PRIMO 8.2-1 LITE Inverter
Regular price
$1,899.00
-5%
$1,799.99
5% OFF
SOLD OUT
8.2kW FRONIUS 4,210,060,801 PRIMO 8.2-1 LITE Inverter
8.2kW FRONIUS 4,210,060,801 PRIMO 8.2-1 LITE Inverter
Out Of Stock
MPN No: 4,210,060,801
Regular price
$1,899.00
-5%
$1,799.99
Contact us for Delivery Date
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$1,899.00
-5%
$1,799.99
FRONIUS PRIMO 8.2-1
208-240VAC, 4,210,060,801 Lite Inverter
(WIFI Communication not included)
Features
- Versatile Power Range: Available in power categories from 3.8 kW to 15.0 kW.
- Compact & Lightweight: Features the SnapINverter hinge mounting system for secure and convenient installation.
- Advanced Monitoring: Integrated USB and RS422 interfaces for system monitoring and updates.
- Smart Grid Ready: Designed to support advanced grid functions and future grid requirements.
- Efficient Performance: Up to 97% maximum efficiency with transformerless topology.
Technology Overview
The Fronius Primo Lite inverter integrates dual MPPTs, allowing for flexible system design and improved energy capture. It supports wide input voltage ranges, making it compatible with various PV module configurations. The design ensures easy maintenance with replaceable PC boards and integrated safety features like AFCI and rapid shutdown compliance.
Applications
- Suitable for residential solar installations requiring single-phase inverters.
- Ideal for projects with diverse rooftop orientations, thanks to dual MPPTs.
- Can be installed indoors or outdoors with its NEMA 4X-rated enclosure.
Installation
- SnapINverter hinge system simplifies mounting and servicing.
- Operates in ambient temperatures from -40°F to 131°F (-40°C to 55°C).
- Compatible with copper and aluminum wiring for DC and AC connections.
- Compact dimensions and lightweight design allow easy handling and placement.
Specifications
| Category | Specification |
|---|---|
| DC Input | |
| Max Voltage | 600 V (1,000 V optional) |
| MPPT Voltage Range | 200-480 V (specific to model power) |
| Max Input Current | 36 A (combined MPPT1 & MPPT2) |
| Startup Voltage | 80 V |
| Number of MPPTs | 2 |
| AC Output | |
| Power Output Range | 3.8 kW - 15.0 kW (model dependent) |
| Voltage / Frequency | 208/240 V, 60 Hz |
| Max Continuous Output | Up to 62.5 A (240 V, 15.0 kW model) |
| THD | <5% |
| Power Factor Range | 0.85-1 ind./cap |
| Efficiency | |
| Max Efficiency | Up to 97% |
| CEC Efficiency | 96.5% (varies by model) |
| General | |
| Dimensions | 16.9 × 24.7 × 8.1 in (up to 20.1 × 28.5 × 8.9 in for larger models) |
| Weight | 47.29 lbs - 82.5 lbs (model dependent) |
| Cooling | Variable speed fan |
| Enclosure Rating | NEMA 4X |
| Operating Temp | -40°F to 131°F (-40°C to 55°C) |
| Warranty | 10 years (extendable up to 20 years) |
