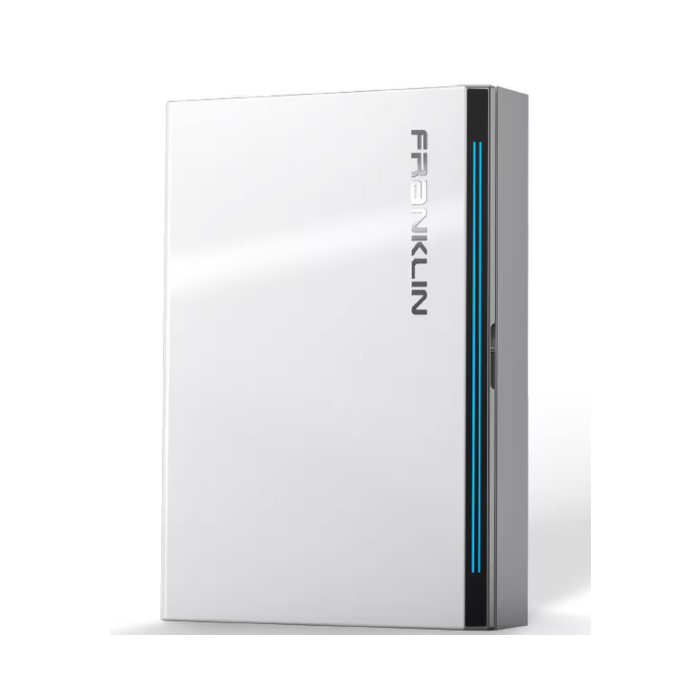

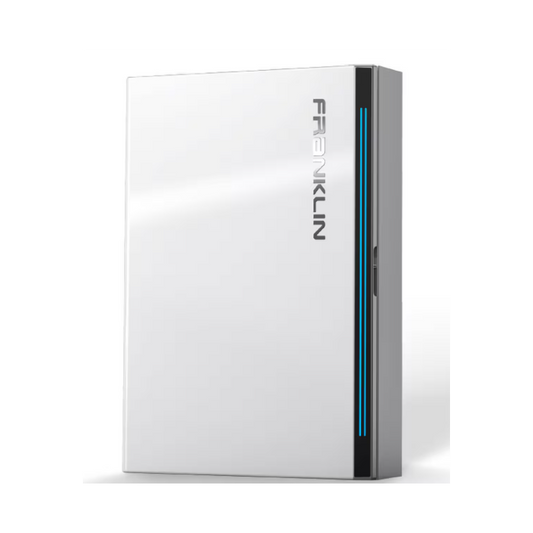

FranklinWH aGate X (1.3.1) - Intelligent Energy Management Device AGT-RIV3-US
The FranklinWH aGate X (AGT-RIV3-US) is a micro-grid interconnection device (MID) and energy management system that ties together PV, grid, batteries, a standby generator, and smart load circuits for whole-home backup. With a 280A busbar, integrated metering, optional Smart Circuits & Generator modules, and NEMA 3R construction, it enables seamless grid/backup transitions and helps avoid main panel upgrades.
Whole-Home Power Control: Connects solar, grid, batteries, loads, and generator with precise circuit-level control.
Panel-Upgrade Saver: 280A internal busbar and UL1741-certified PCS function designed to help avoid MPUs.
Fast, Seamless Backup: Automatic transfer keeps always-on loads (e.g., fridge, router) powered during outages.
Flexible Installation: Indoor/outdoor wall-mount with bottom/left/right conduit entry options.
Easy Commissioning: Set up via aGate Wi-Fi hotspot or Bluetooth; monitor/control in the FranklinWH App.
Special Technology
Smart Circuits Module (optional): Circuit-level load management; configurable OCPD options for critical loads.
Generator Module (optional): Integrated standby generator interface for extended outages.
Black Start & V2L: Black-start to recharge batteries after prolonged outages; Vehicle-to-Loads support for emergencies.
Warranty
12-Year Limited Warranty.
Best Uses
Whole-Home Backup: Service-entrance or load-center installs for resilient residential ESS.
TOU Optimization: Self-consumption and time-of-use modes with integrated PV & grid metering.
Generator + Battery Hybrids: Coordinated control of PV, storage, and standby generator.
Specifications Table
| Specification | Data |
|---|---|
| Model / SKU | aGate X — AGT-RIV3-US |
| Function | Micro-grid interconnect device (MID) & EMS; AC-coupled |
| Nominal AC Voltages | 120/240 V split-phase; 120/208 V (60 Hz) |
| Phases | 2 W + N + PE |
| Busbar Rating | 280 A |
| Maximum Supply Fault Current | 22 kA |
| Over-Current Protection Devices | Grid In: 200 A max · aPower: 125 A max · Solar In: 80 A max · Backup Load: 200 A max · Non-Backup Load: 200 A max · Generator: 200 A max |
| Smart Circuits OCPD (options) | Opt. A: 1 × 80 A @ 208/240 V & 1 × 50 A @ 208/240 V · Opt. B: 1 × 80 A @ 208/240 V & 2 × 50 A @ 120 V |
| Work Modes | Self-Consumption, Time-of-Use, Emergency Backup |
| Communications | Ethernet, 4G, Wi-Fi, Bluetooth |
| User Interface | FranklinWH App |
| Enclosure / Mount | NEMA 3R · Wall-mount · Indoor/Outdoor |
| Dimensions (H × W × D) | 31.5 × 21.7 × 6.3 in |
| Weight | 38.6 lb |
| Environmental | −4 to 122 °F (−20 to 50 °C); up to 100% RH, condensing; ≤ 9,843 ft (3,000 m) |
| Conduit Entry | Bottom / Left / Right |
| Certifications | UL 1741, UL 1741 PCS, UL 67, UL 869A, UL 916; CAN/CSA C22.2 No. 107.1-16, No. 29, No. 0.19; FCC Part 15 Class B; ICES-003 |
| Other Compliance | AC156 / OSHPD / IEEE 693-2005 (high); RoHS; California Prop 65 |
| Warranty | 12-Year Limited |
| Notes | Smart Circuits Module and Generator Module are optional; V2L optional |
About FranklinWH:
FranklinWH (founded 2019, San Jose) offers an AC‑coupled “whole‑home” energy solution featuring the aPower 2 LFP battery (15 kWh, 10 kW output, AC inverter built‑in) and aGate smart energy management controller. Systems scale up to 15 batteries per controller, integrate PV, grid, generators, EV, support solar black‑start, TOU load shifting, and include an intuitive app.
