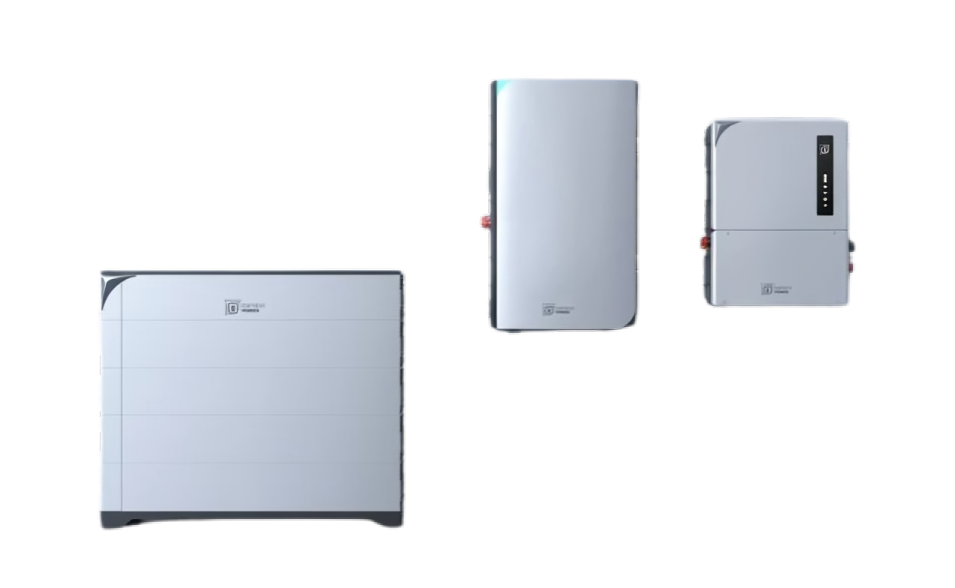

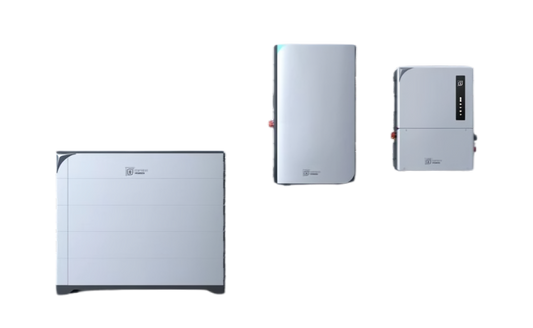

Fortress Power Avalon HV Pro ESS 11.4kW 19.6kWh Energy Storage System

Fortress Power Avalon HV Pro ESS 11.4kW 19.6kWh Energy Storage System

Regular price $18,945.14
Sale price $18,945.14 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: Avalon HV Pro ESS 11.4kW 19.6kWh

Fortress Power Avalon HV Pro ESS 11.4kW 19.6kWh Energy Storage System

Fortress Power Avalon HV Pro ESS 11.4kW 19.6kWh Energy Storage System

No reviews
Leave a Review
Regular price $18,945.14
Sale price $18,945.14 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Fortres Power
Weight
536.99 lb
Dimension
Hybrid Inverter - 21.87*34.88*8.62 in (555.5*866*219mm) / BMS - 43 x 34.72 x 10.96 in (1092 x 881.8 x 278.4 mm) / E Panel - 35.4 x 22.2 x 9.45in (900 x 565 x 240mm)

Fortress Power Avalon HV Pro ESS 11.4kW 19.6kWh Energy Storage System

Introducing the cutting-edge Fortress Power Avalon HV Pro ESS, equipped with an 11.4kW hybrid inverter and a 19.6kWh Lithium Iron Phosphate battery, designed for those who seek unparalleled energy efficiency and storage capacity. This premium system is ideal for larger homes and commercial spaces, offering robust performance and extended energy autonomy.

  • Advanced 11.4kW Hybrid Inverter for superior power management and conversion.
  • Generous 19.6kWh battery capacity ensures long-lasting backup power and energy storage.
  • Smart Energy Panel allows for intuitive energy control and system optimization.
  • Equipped with multiple MPPTs to maximize solar energy collection and efficiency.
  • User-friendly app for seamless monitoring and management of energy resources.

Technology and Overview

Featuring state-of-the-art technology for efficient energy management, ensuring optimal performance and reliability.

Installation and Compatibility Overview

Flexibly designed for easy integration, this system supports a wide range of applications, enhancing energy independence.

Benefits and Applications Overview

With its significant energy capacity, the Avalon HV Pro ESS is perfect for reducing energy costs, supporting sustainability, and providing reliable power.

Specifications

Fortress Power Avalon HV Hybrid Inverter Value
Model No. AV-INV-010224-11.4
Max. Input Voltage 600 V
Rated Voltage 380 V
Start-Up Voltage 80 V
MPPT Voltage Range 80 - 520 V A
Max. Input Current Per String 16 A
Max. Short Circuit Current Per String 25.6 A
Number Of MPPTs/Number Of Strings Per MPPT 4/1
Rated Output Power 11.4 kW
Max. Apparent Output Power (Grid) 11.4 kVa
Max. Apparent Output Power (Off-Grid) 18.2 kVa, 10 sec
Back-Up Switch Time <10 ms
Rated Output Voltage (L1-L2) 240 V
Rated Output Voltage (L1/L2-N) 120 V
Ac Output Voltage Range 211 - 264 V
Rated Frequency 60 Hz
Frequency Range 55 - 65 Hz
Rated Output Current 47.5 A
Max. Output Current (Grid) 31.7 A 47.5 A 47.5 A
Max. Output Overcurrent, 10 Sec (Off-Grid)  76 A
Max. Allowance Phase Configurations 100%
Backup Support Configurations whole-home and dedicated loads
Power Factor >0.99 (0.8 leading - 0.8n lagging)
THD <3%
Input Voltage Range 211 - 264 V
Frequency Range 58.8 - 61.2 Hz
PV Max. Efficiency 97.60%
PV CEC Efficiency 97.20%
Battery Charged By PV Max. Efficiency 98.50%
Battery Charged/Discharged To AC Max. Efficiency 97.00%
Ground Fault Detection yes
Residual (Leakage) Current Detection yes
Integrated AFCI (DC arc-Fault Circuit Protection) yes
DC Reverse-Polarity Protection yes (PV only)
Rapid Shutdown NEC 2017 integrated sunspec-certified transmitter
RSD Receiver APSmart or Tigo
Manual Inverter Bypass Switch yes
Battery Voltage Range 120-315 V
Maximum Charge/Discharge Current 50 A
Battery Communication CAN/RS485
Dimensions (W*H*D) 21.87*34.88*8.62 in (555.5*866*219mm)
Weight 89.59 Ibs (40.64 kgs)
Mounting wall mount
Topology transformerless
Operation Temperature Range -13°F to 140°F (-25°C to 60°C)
Ingress Protection TYPE 4X (IP66)
Noise Emission fan-less, <30 dB(A)
Cooling Method natural convection
Maximum Elevation 9,843 ft (3000m)
Compliance UL 1741, UL 1741 SA, UL 1741 SB, UL9540, IEEE 1547-2018, IEEE 1547.1-2020, UL 1699B, UL 1998, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B
Generator Support yes
Limited Warranty 10 years
DC Connection 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals
AC Connection 1.5 in. (or 1.25 in. with reducer) knockouts for conduit (x3) on the side and bottom; Spring clamp terminals
Interface Fortress App
Communication RS485, Cellular, Wi-Fi, Optional: LAN


Fortress Power Avalon HV Bms And Battery Pack Value
Model No. AV- BATT - 010224-4
Batery Modules 4
Nominal Voltage (V) 192
Operation Voltage Range (V) 159 ~ 210
Nominal Capacity (Ah) 102
Nominal Energy (Kwh) 19.6
Nominal Charge/Discharge Current (A) 50
Maximum Surge Rate 80A, 15 sec
Maximum Units In Parallel 4
Limited Warranty (Years) 15
Cycle Life @ EOL 70% 8,000
Communication Protocol CAN
Weight 392.4 lbs (178 kg)
Dimensions (LxHxD) 43 x 34.72 x 10.96 in (1092 x 881.8 x 278.4 mm)
Ingress Protection IP65
Operation Temperature charge: -10°C to 50°C
discharge: -20°C to 55°C
Certifications UL1973, UL9540. UL9540A, CEC, SGIP, AC156
Transportation Classification UN3480, Class 9


Fortress Power Avalon Smart Energy Panel Value
Model No. AV-EP-010224
AC Voltage 120/240 V
Feed-In Type split phase
Grid Frequency 60 Hz
Current Rating 200 A
Max Input Short Circuit Current 10 kA, 15 kA, or 25 kA*
Overcurrent Protection Device 100 - 200A; service entrance rated
AC Meter non-RGM is standard, Revenue Grade Meter is optional
Primary Connectivity ethernet / wifi / bluetooth
User Interface Fortress App
Backup Transition automatic transfer for backup
Expandability supports up to 3 Avalon HV hybrid inverters, up to 35 Kw backup load
Limited Warranty 5 years
Dimensions 35.4 x 22.2 x 9.45in (900 x 565 x 240mm)
Weight 55 lbs (25 kg)
Mounting Options wall mount
Smart Load Control 12 positions. Control up to 12 single phase loads (120V), 6 split phase loads (240V), or any combination, up to 50A**
Smart Load Control Modes automatic, scheduled, or manual control
Ev Charging Smart Load Provision up to 50A
Ac Coupling Smart Load Provision up to 50A
Generator Smart Load Provision up to 50A
Non-Backup Lug Connections included
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Operating Humidity up to 100%, condensing
Maximum Elevation 9,843 ft (3000m)
Environment indoor and outdoor rated
Enclosure Type NEMA 3R
Certifications UL67, UL1741 PCS, UL869A, UL916
Emissions FCC Part 15, ICES 003
