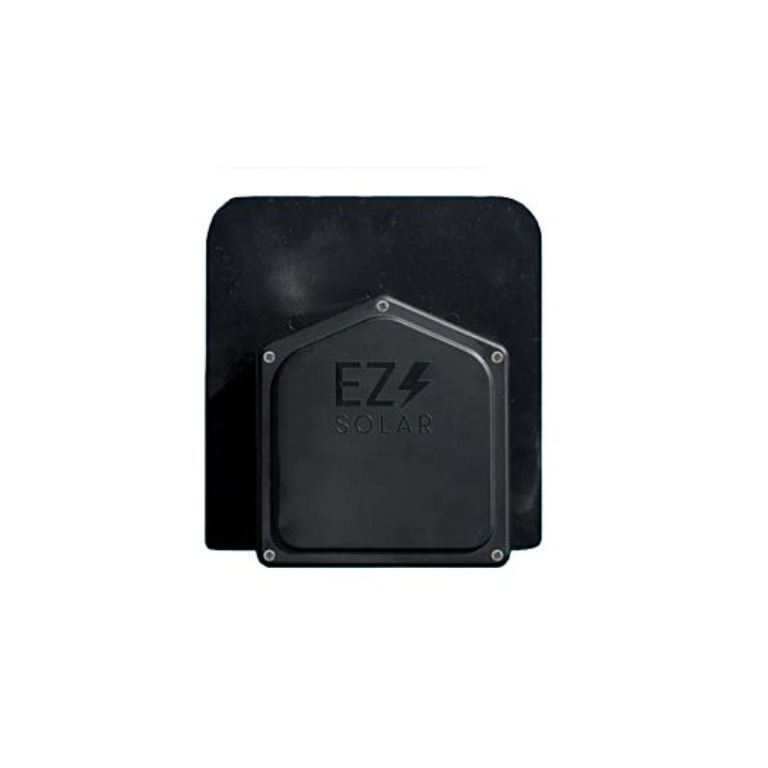

The EZ Solar JB-F.200 Fortis 200 is a high-capacity rooftop PV junction box designed for composition and asphalt shingle roof applications.
Engineered for durability and reliable field wiring, this enclosure supports high-voltage solar systems while providing a weather-resistant Type 3R housing for outdoor installations.
With a 1,500 VDC / 450 VAC maximum voltage rating, increased 120 amp current capacity, and a spacious 200 in³ interior volume, the JB-F.200 is built to handle larger conductor configurations and more complex junction requirements while maintaining safe and organized wiring conditions.
Key Technology
-
Type 3R Weather-Resistant Enclosure
Designed for rooftop environments with reliable protection against rain and outdoor exposure. -
High-Voltage PV Compatibility
Supports solar systems up to 1,500 VDC / 450 VAC, meeting modern PV system requirements. -
120 Amp Current Capacity
Fortis 200 model supports higher current loads for larger system configurations. -
Flexible Wire Compatibility
Accepts conductor sizes from 14 AWG to 6 AWG for installation versatility. -
Expanded Interior Volume
Large 200 in³ enclosure allows improved wire routing and connection management. -
Roof-Mount Optimized Design
Designed specifically for composition and asphalt shingle roofs with a slope range of 2.5:12 to 12:12.
Best Uses
-
PV Roof Junction Applications
Provides a central junction point for rooftop conductor transitions. -
Higher Capacity Solar Installations
Ideal for systems requiring increased current handling and wiring space. -
Residential Solar Installations
Suitable for home solar arrays needing durable rooftop electrical enclosures.
Warranty
- Manufacturer: EZ Solar Products
- Compliance: UL1741 and CSA C22.2 No. 290 listed
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | EZ Solar Products |
| Model | JB-F.200 |
| Series | Fortis 200 |
| Product Type | PV Junction Box |
| Roof Type | Composition / Asphalt Shingle Roofs |
| Maximum Voltage | 1,500 VDC / 450 VAC |
| Maximum Current | 120 Amps |
| Allowable Wire Size | 14 AWG – 6 AWG |
| Enclosure Rating | Type 3R |
| Roof Slope Range | 2.5:12 – 12:12 |
| Max Side Wall Fitting Size | 1 in |
| Max Floor Pass-Through Fitting Size | 1 in |
| Ambient Operating Conditions | -35°C to +75°C |
| Interior Volume | 200 in³ |
| Compliance | UL1741, CSA C22.2 No. 290 |
| System Marking | Intertek Listed |
About EZ Solar Products:
EZ Solar Products designs and manufactures solar electrical components that simplify installation while ensuring reliable, code-compliant performance. The Fortis junction box series is engineered for durability, safety, and ease of use in rooftop photovoltaic systems.
High-Capacity Rooftop Junction Solution for PV Systems
The EZ Solar JB-F.200 Fortis 200 delivers expanded wiring capacity, robust construction, and high electrical ratings to support modern solar installations requiring dependable rooftop junction management.
