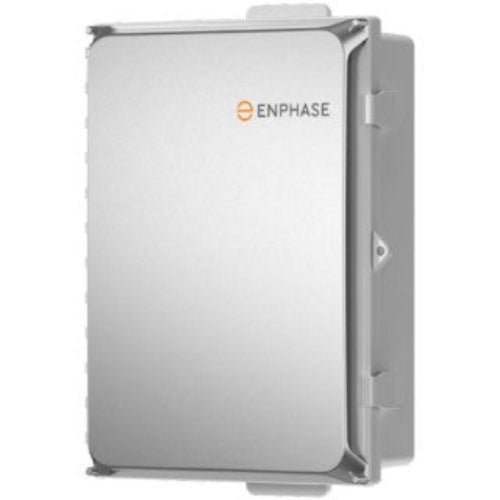

Enphase IQ Combiner-5 with IQ Gateway X-IQ-AM1-240-5-HDK Single Phase

Installation Guide

The Enphase X-IQ-AM1-240-5-HDK is a complete combiner solution for residential solar and battery storage systems. Featuring an integrated IQ Gateway and pre-installed breakers, this combiner panel simplifies installation, reduces wiring time, and enables advanced system monitoring. Designed to work with IQ microinverters and Enphase storage products, the IQ Combiner 5 ensures NEC compliance, rapid shutdown capability, and seamless data collection for the Enphase App and Enlighten Portal.

Key Benefits

IQ Gateway Included: Provides real-time monitoring and control of Enphase solar and storage systems.

Pre-Wired Configuration: Comes with three Eaton breakers (2×20A, 1×15A) for rapid field deployment.

Supports Whole-Home Monitoring: Compatible with current transformers (CTs) for load tracking and consumption data.

NEMA 3R Enclosure: Weather-resistant for outdoor wall-mounted applications in any climate.

Enphase System Ready: Seamless compatibility with IQ8 microinverters, IQ Batteries, and IQ System Controllers.

Special Technology

Built-In IQ Gateway: Collects production and consumption data, enables remote troubleshooting and firmware updates.

Enlighten Monitoring Platform: Allows homeowners and installers to view energy production from any device.

Rapid Shutdown Compliant: Ensures fast and safe power-off for fire and grid safety standards (NEC 690.12).

Modular Enphase Design: Supports integration with multiple IQ Batteries and Enphase System Controllers.

Factory-Wired Load Center: Reduces on-site wiring complexity and accelerates inspections and commissioning.

Warranty

The Enphase IQ Combiner 5 (X-IQ-AM1-240-5-HDK) is backed by a 5-year limited warranty, covering enclosure components and electronics when installed per manufacturer specifications.

Best Use

Residential Solar Installations: Centralized combiner for microinverter arrays, IQ Batteries, and monitoring.

Enphase System Deployments: Pre-engineered for use with Enphase Energy Systems including IQ8 and IQ Gateway setups.

Battery + Solar Hybrid Systems: Enables load monitoring and storage coordination via IQ Gateway.

Code-Compliant Outdoor Installations: Weather-rated and pre-approved for rapid shutdown compliance and utility interconnection.

Specifications
