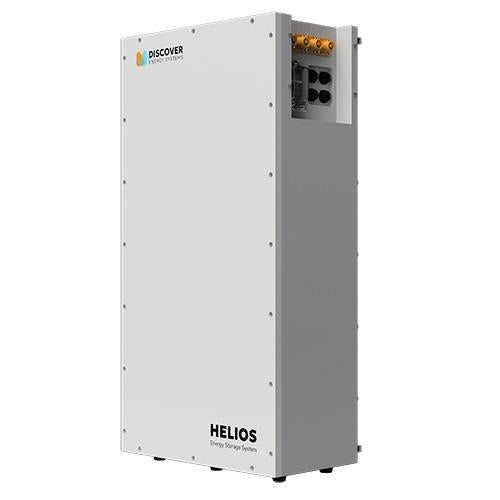

Discover HELIOS ESS 16.1kWh 51.2V 314Ah 52-48-16000 Outdoor Battery
Discover HELIOS ESS 16.1kWh 51.2V 314Ah 52-48-16000 Outdoor Battery
Discover HELIOS ESS 16.1kWh 51.2V 314Ah 52-48-16000 Outdoor Battery
Discover HELIOS ESS 16.1kWh 51.2V 314Ah 52-48-16000 Outdoor Battery
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Discover HELIOS ESS 16.1kWh 51.2V 314Ah 52-48-16000 Outdoor Battery
52-48-16000
Discover HELIOS ESS Battery 16.1kWh 51.2V 314Ah 52-48-16000 Outdoor
Key Benefits
-
High-Capacity Storage: 16,080Wh of usable energy supports large residential or commercial loads.
-
Powerful Output: Delivers 10kW continuous and 19kW peak power for surge-intensive appliances.
-
Weatherproof & Outdoor Ready: IP65-rated steel enclosure with built-in self-heating for cold climates.
-
Fast & Flexible Setup: Wall-mount bracket and plug-and-play terminal simplify installation.
-
Scalable Design: Connect up to 36 units (579.6kWh) in parallel for large-scale energy projects.
Special Technology
-
4th Generation BMS: Enhances safety, efficiency, and performance with active protection and real-time system management.
-
Closed-Loop Communication: CAN protocol integration with hybrid inverters ensures optimal charging and discharging.
-
Rapid Shutdown Integration: Built-in fire arrestors and E-stop provide compliance and safety in critical applications.
-
Arc Flash Safe: Low incident energy and arc flash boundary improve installation safety.
Best Use
-
Whole-home solar backup systems
-
Off-grid energy storage and microgrid setups
-
Commercial solar + storage projects
-
Cold-weather energy storage (down to -13°F)
-
Installations with Sol-Ark 15K or hybrid inverters
Warranty
-
10-Year Product Warranty
-
Energy Performance Guarantee – Backed by a 93 MWh lifetime throughput rating.
Specifications
| Category | Details |
|---|---|
| Model | 52-48-16000 |
| Energy Capacity | 16,080Wh |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Max Continuous Charge/Discharge | 200A (10.24kW) |
| Peak Power (10s) | 19kW (300A) |
| BMS | 4th Generation Integrated |
| Self-Heating System | Yes (operates to -13°F / -25°C) |
| Breaker | 200A Single-Pole |
| Short Circuit Current Rating | 7.16kA (100 ms) |
| Arc Flash Incident Energy | 0.310 cal/cm² (AFB: 9.41 in) |
| Dimensions (inches) | 35.43 x 18.31 x 10.7 (H x W x D) |
| Weight | 299.83 lbs |
| Enclosure Rating | IP65 – Galvanized Steel |
| Mounting Type | Wall Mount (Quick Connect) |
| Certifications | UL1973, UL9540A, UL9540 (pending), UN38.3 |
About Discover Energy Systems:
Discover Energy Systems engineers advanced lithium energy storage solutions for off-grid, solar, and whole-home backup. Trusted for durability, integration, and performance, their systems power mission-critical applications worldwide.
