MidNite Solar DC Disconnect MNDC-C-SERIES w/No Breakers
MNDC-C-SERIES
MidNite Solar DC Disconnect MNDC-C-SERIES w/No Breakers

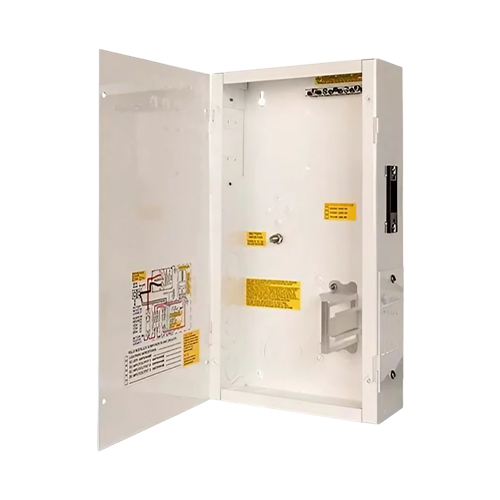

The MidNite Solar MNDC-C-SERIES is a versatile DC disconnect and breaker panel designed to provide efficient and organized circuit protection for various renewable energy installations. This model is characterized by its adaptability, offering flexibility for both DIN rail and panel mount breakers, making it suitable for systems that require smaller DC disconnects.
Key Benefits
Adapter for Smaller Breakers: Specifically designed to include an adapter for smaller 3/4 inch MNEDC panel mount breakers (breakers not included).
Durable and Rust-Resistant: Constructed with a white powder-coated aluminum chassis, ensuring longevity and protection against rust in various environments.
Flexible Breaker Slots: Features 5 DIN rail breaker slots or 3 panel mount breaker slots, providing options for circuit configuration.
Easy Access Design: Equipped with a hinged door for convenient access to internal electrical circuits for installation and maintenance.
Comprehensive Grounding: Includes a 14-pole ground bus bar and a 5/16" diameter stud for battery negative tie point, ensuring robust system grounding.
Shunt Ready: Provides six mounting spots for a 500 amp, 50mV shunt for accurate current monitoring (shunt sold separately).
Optimized Cable Management: Features knockouts for inverter and battery cables, charge controller mounting, and DC and PV input/output.
Safety Certified: ETL listed for both the US and Canada, ensuring compliance with safety standards.
Made in the USA: Manufactured in the United States, indicating high quality and local production.
Special Technology
Adapter Plate System: Its core feature is the included adapter plate, which allows it to accept smaller 3/4 inch MNEDC panel mount breakers. This provides a flexible solution for applications where a DC disconnect breaker smaller than 125A is needed.
Upgrade Pathway: The adapter plate can be removed, allowing for future upgrades to larger 125A, 175A, or 250A main inverter breakers as system needs evolve.
Versatile Circuit Organization: Provides dedicated spaces for organizing various DC circuits, including PV input, charge controller output, DC ground fault protection (DC-GFP), DC loads, and PV combiners.
Warranty
The MNDC-C-SERIES Mini DC Disconnect comes with a 5-year limited warranty, covering manufacturer defects in materials and workmanship. Warranty support is valid in the U.S. and Canada.
Best Use
Smaller Scale Systems: Perfect for installations requiring a DC disconnect breaker with a rating smaller than 125A.
Residential and Off-Grid Applications: Suitable for protecting the DC side of solar panel systems in homes, RVs, vans, and marine setups.
Circuit Protection and Organization: Provides essential overcurrent protection and organized management for various DC circuits within a renewable energy system.
PV String Combining: Can be utilized to combine DC current from multiple strings of solar panels, reducing wiring complexity.
Specifications Table
| Specification | Data |
|---|---|
| Product Name | MNDC-C-SERIES |
| Breaker Options | 125A, 175A, or 250A inverter breaker (model-specific) |
| Enclosure Material | Powder-coated aluminum |
| Ground Bus Bar | 14-position terminal bar |
| Battery Negative Tie Point | 5/16 inch stud |
| Shunt Mounting Options | 6 positions for 500A/50mV shunt (not included) |
| Additional Breaker Capacity | 3 din rail-mounted breakers |
| Knockout Locations | Top, bottom, and sides for flexible cable entry |
| Compatible Devices | Charge controllers, DC-GFP, PV combiner, SPD |
| Dimensions (H × W × D) | 15 × 9 × 4 inches |
| Weight | ~9 lbs |
| Warranty | 5 Years |
About MidNite Solar
MidNite Solar, located in Arlington, Washington, is a U.S. manufacturer specializing in renewable energy balance-of-system components. Their lineup includes MPPT charge controllers, rapid shutdown devices, battery enclosures, combiner boxes, E-Panels, and protective accessories designed to meet NEC and UL standards. MidNite products are trusted by solar professionals for their safety, reliability, and installer-friendly design across residential, commercial, and mobile energy systems.
