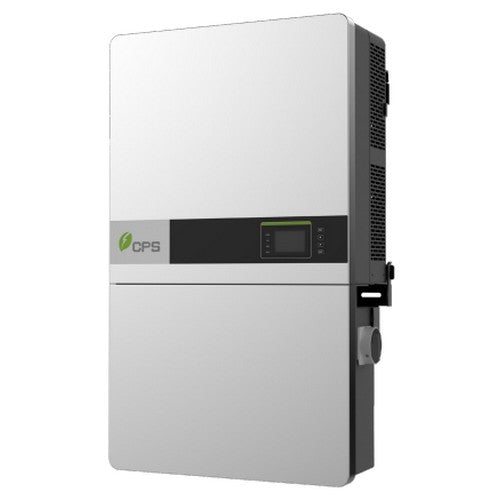

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

$5,849.99
-% $5,849.99
SOLD OUT
Leave a Review

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

Chint Power
MPN No: SCA36KTL-US-480-V2-APS
Out Of Stock
$5,849.99
-% $5,849.99

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Contact us for Delivery Date

Payment

We offer multiple secure payment options for your convenience

All Chint Power products All Inverters products

View full details
$5,849.99
-% $5,849.99
Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

MPN No:

SCA36KTL-US-480-V2-APS

Out Of Stock
Contact us for Delivery Date
$5,849.99
-% $5,849.99
Sold out

Specifications

.PDF
Datasheet
.PDF
Datasheet

Chint 36kW 3-Phase 480VAC, 1000VDC String Inverter, APS RSD Wirebox)

Special Features

  • High-Efficiency Inverter: Achieves up to 98.5% efficiency, ensuring maximum power conversion from DC to AC.
  • Flexible String Design: Offers wide MPPT voltage range, making it adaptable for different solar array designs.
  • Integrated Arc Fault Detection: Built-in arc fault protection ensures safer operation and compliance with safety standards.
  • NEMA 4X Enclosure: Weatherproof and durable, suitable for outdoor installations in various environmental conditions.
  • Advanced Monitoring: Includes built-in data logger and remote monitoring capabilities for real-time performance tracking.

Technology Overview

The CPS SCA36KTL-DO/US-480 is a three-phase string inverter optimized for commercial and utility-scale solar installations. Designed with CPS's cutting-edge technology, it features two independent MPPTs (Maximum Power Point Trackers), ensuring better energy capture even in shaded or variable sun conditions. The inverter supports up to 150% DC/AC ratio, making it highly versatile for different system configurations.

Installation

The SCA36KTL-DO/US-480 is designed for easy and quick installation. Its lightweight, compact design simplifies handling, and the integrated mounting brackets facilitate straightforward installation. The inverter’s NEMA 4X enclosure allows it to be installed in outdoor environments without additional protective enclosures.

Applications

  • Commercial Solar Systems: Ideal for medium to large commercial rooftop or ground-mounted solar systems requiring high-efficiency power conversion.
  • Utility-Scale Solar Farms: Suitable for large-scale solar projects, offering high power output and reliable performance.
  • Industrial Installations: Perfect for industrial applications that need robust and durable inverters capable of handling high power loads.

Product Specifications

Feature Specification
Model CPS SCA36KTL-DO/US-480
Type 3-Phase String Inverter
Maximum Output Power 36kW
Maximum Input Voltage 1000 VDC
MPPT Voltage Range 550 - 850 VDC
Number of MPPTs 2
Efficiency Up to 98.5%
AC Output Voltage 480V, 3-Phase
Weight 145lbs
Dimensions (W x L x H) 24 x 10 x 40 inches
Enclosure Rating NEMA 4X
Operating Temperature Range -22°F to +140°F (-30°C to +60°C)
Communication Interface RS485, Ethernet
Safety and Certifications UL 1741, IEEE 1547, NEC 2017 690.11
Warranty 10 years (extendable)
