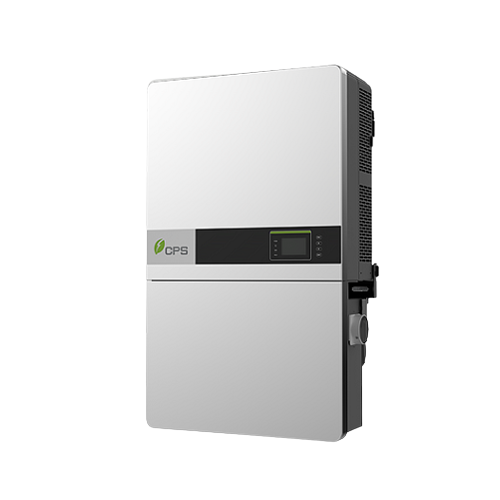

Chint 25Kw 3-Phase String Inverter SCA 25KTL-DO-R/US-208-TIGO, 208Vac, Tigo RSD Wiring Box

Chint 25Kw 3-Phase String Inverter SCA 25KTL-DO-R/US-208-TIGO, 208Vac, Tigo RSD Wiring Box

Regular price $5,350
Sale price $5,350 Regular price

Chint 25Kw 3-Phase String Inverter SCA 25KTL-DO-R/US-208-TIGO, 208Vac, Tigo RSD Wiring Box

Chint 25Kw 3-Phase String Inverter SCA 25KTL-DO-R/US-208-TIGO, 208Vac, Tigo RSD Wiring Box

No reviews
Regular price $5,350
Sale price $5,350 Regular price
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Chint Power
Weight
156.5 lb
Dimension
(HxWxD) 39.4 x 23.6 x 10.24 in.

25kVA 208V CPS Three Phase Strings Inverters

Achieving an impressive peak efficiency of 97.0% and a CEC efficiency of 96.5%, these 25kVA 208V CPS three-phase string inverters are specifically engineered for optimum performance in North American rooftop and carport applications. These advanced units are characterized by a wide range of operating voltages, expansive temperature ranges, and a robust NEMA Type 4X enclosure. To enhance safety and convenience, all units come equipped with a Rapid Shutdown wire-box that includes touch-safe fusing, comprehensive monitoring, and both AC and DC disconnect switches. The integrated PLC transmitter guarantees module-level rapid shutdown, being PVRSS certified when paired with Tigo TS4-A-F/TS4-A-2F products and APS RSD-S-PLC/RSD-D products. With the inclusion of the CPS FlexOM Gateway, users gain added benefits of monitoring, controls, and the possibility of remote product upgrades.

Model Product Number (MPN): SCA 25KTL-DO-R/US-208-TIGO

What’s New?

  • NEC 2017/2020 PVRSS Certified Rapid Shutdown
  • 208V AC Output
  • Compliance with NEC 2017/2020 & UL listed Arc-Fault circuit protection
  • Smart-Grid Rule 21 & UL1741-SA Certification
  • Mounting flexibility with orientation ranging from 15-90° (either vertical or angled)
  • Enhanced Rapid Shutdown wire-box options

High Efficiency and Reliability:

  • Boasts a maximum efficiency of 97.0% and a CEC efficiency of 96.5%
  • Incorporates 3-level technology and an improved control mechanism to ensure high efficiency across a vast load range
  • Features 3 MPPTs, each with 2 inputs, ensuring maximum flexibility
  • Transformerless design for streamlined operation
  • Standard warranty covers 10 years with an option to extend up to 20 years
  • State-of-the-art thermal design complemented by variable-speed fans
  • Comes with a ground-fault detection and interruption circuit
  • Integrated AFCI (as per UL1699B)

Broad Adaptability and Flexibility:

  • Suitable for outdoor applications with NEMA Type 4X (IP66) certification
  • Incorporates utility interactive controls such as active power derating and reactive power control
  • Built-in DC & AC disconnects for added convenience
  • The expansive MPPT range ensures flexible string sizing
  • Allows for a maximum DC input voltage of 1000V, ensuring flexible configuration
  • Offers a fully integrated and separable Rapid Shutdown wire-box
  • An optional CPS FlexOM Gateway enhances monitoring, controls, remote product upgrades, and other O&M service packages.
