Chilicon T6 Male Terminator Cap

Chilicon T6 Male Terminator Cap

Regular price $38.50
Sale price $38.50 Regular price
SOLD OUT
Leave a Review

MPN No: T6 Male Cap

Chilicon T6 Male Terminator Cap

Chilicon T6 Male Terminator Cap

Regular price $38.50
Sale price $38.50 Regular price

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Chilicon Power
Weight
0.5 lb
Dimension
(LxWxH): 1 x 2 x 1 inches

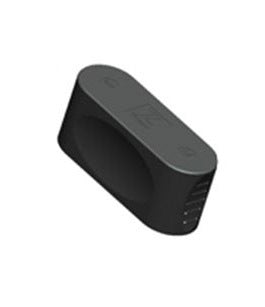

Chilicon Power T6-MALE-CAP T6 Male Terminator Cap

The Chilicon Power T6 Male Terminator Cap is a crucial component of the trunk cabling system in a microinverter setup. It significantly impacts labor costs during installation due to its innovative design and features. The trunk cabling utilizes industry-standard 10 AWG VNTC tray cable with a UV and cut-resistant outer jacket, ensuring durability and longevity in various environmental conditions.

The modular trunk and branch cabling system of Chilicon Power allows for easy assembly on-site, eliminating the need for termination limits at the end of each microinverter string. This flexibility enables the combination of landscape and portrait mode PV module templates on the same string, offering unprecedented versatility in system design.

The 10 AWG cabling of the trunk cable enables the use of 30A overcurrent protection (OCP) devices, typically 2-pole circuit breakers. In 240V split-phase mode, up to 20 CP250e devices with 289W output can be wired on a single 30A line. Similarly, in 208V three-phase mode, up to 18 CP250e devices with 277W output can be wired on a single 30A string.

For the CP-720 device with a 720W output, 8 inverters (16 modules) in 240V split-phase mode or 7 inverters (14 modules) in 208V three-phase mode can be wired to a 30A breaker, further optimizing system design and installation efficiency.

Special Features

  • Utilizes industry-standard 10 AWG VNTC tray cable
  • UV and cut-resistant outer jacket for durability
  • Modular trunk and branch cabling system for easy assembly on-site
  • Allows combination of landscape and portrait mode PV module templates on the same string
  • Enables use of 30A overcurrent protection (OCP) devices for optimized wiring configurations

Technology and Overview

The Chilicon Power T6 Male Terminator Cap employs innovative trunk cabling technology to streamline microinverter system installations. Its modular design and compatibility with standard cabling ensure efficient and reliable performance in various solar PV applications.

Installation and Compatibility

The terminator cap is designed for easy installation within Chilicon Power's trunk cabling system. It is compatible with industry-standard 10 AWG VNTC tray cable and can be integrated seamlessly into new or existing microinverter setups.

Benefits and Applications

The Chilicon Power T6 Male Terminator Cap offers numerous benefits, including reduced labor costs, enhanced system versatility, and optimized wiring configurations. It is suitable for residential, commercial, and industrial solar PV installations, providing a cost-effective solution with superior performance.

Product Specifications

Cable Type 10 AWG VNTC Tray Cable
Maximum Current Rating 30A
Compatible Devices CP250e, CP-720
Installation Modular assembly on-site
Applications Residential, Commercial, Industrial
