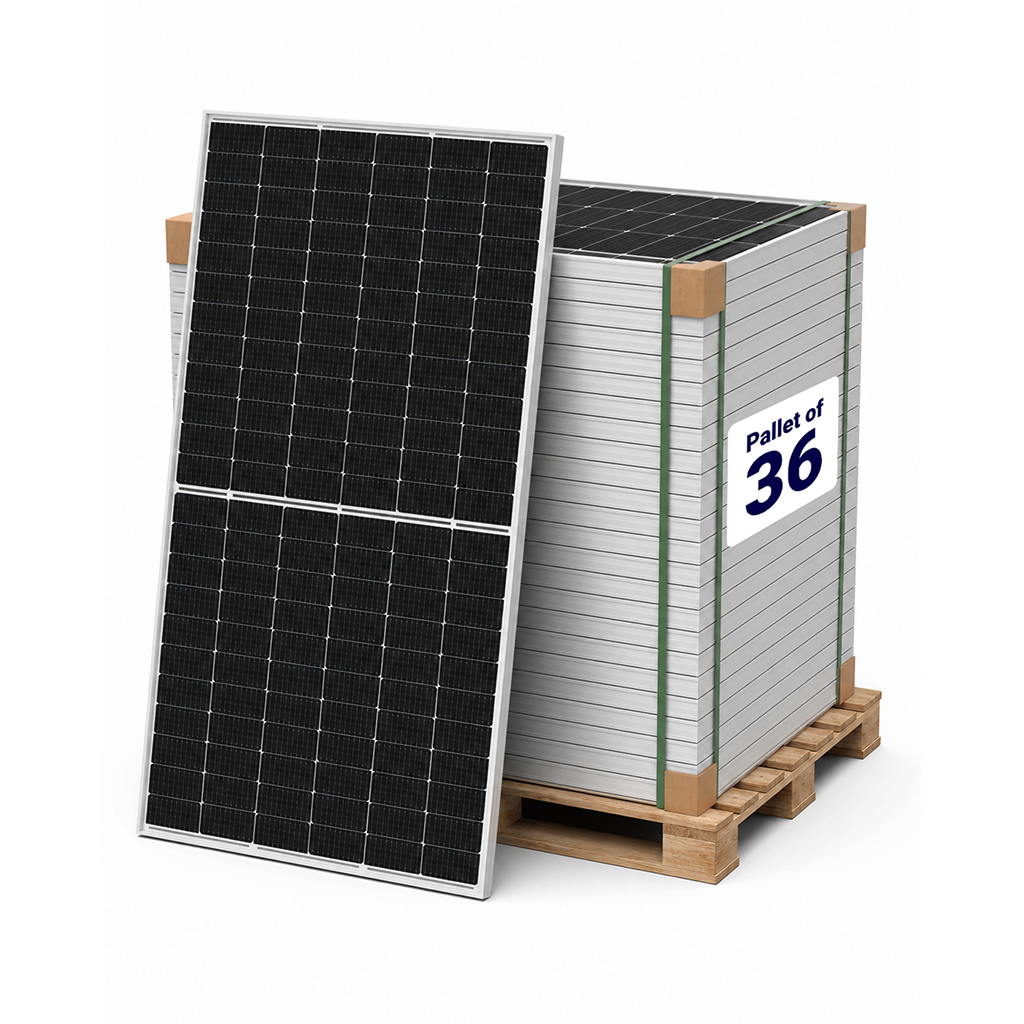

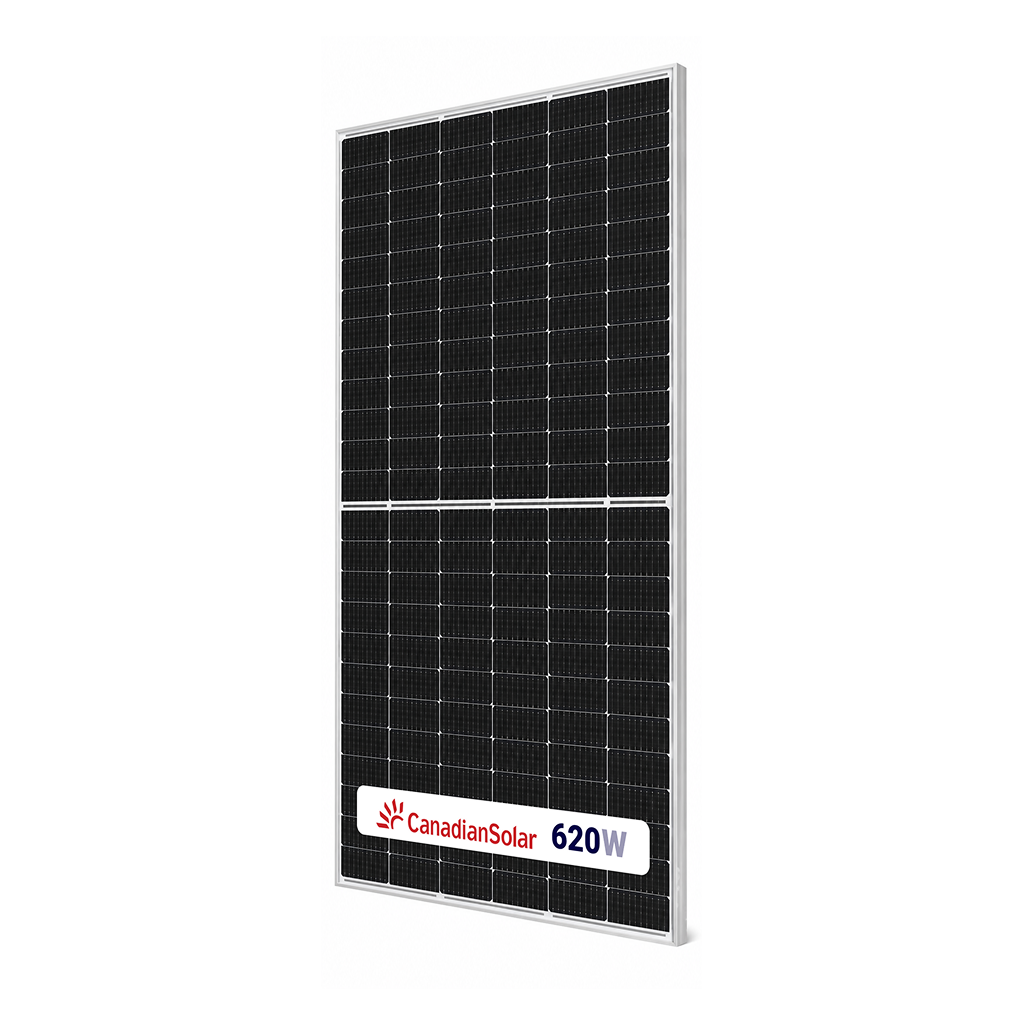

Canadian Solar 620W (Pallet of 36) TOPBiHiKu6 N-Type Bifacial TOPCon Solar Panel | CS6.2-66TB-620

Built for high-output commercial arrays, large residential ground mounts, and utility-scale projects, the Canadian Solar TOPBiHiKu6 620W module combines advanced N-type TOPCon cell technology with bifacial dual-glass construction for exceptional long-term energy production and durability. Delivering up to 620W of front-side output and up to 85% bifaciality, this module is engineered to maximize production while reducing BOS and installation costs.

With a high module efficiency of up to 23.0%, low temperature coefficient, and enhanced resistance to PID and LeTID degradation, the CS6.2-66TB-620 is designed for reliable performance in demanding climates and large-scale installations.

Key Benefits

• 620W high-output N-type TOPCon solar module
• Up to 23.0% module efficiency
• Bifacial dual-glass design captures additional rear-side production
• Up to 85% power bifaciality for increased energy yield
• Lower temperature coefficient of -0.29%/°C for improved hot-weather performance
• Enhanced anti-LeTID and anti-PID performance
• Heavy snow load rating up to 5400 Pa
• Wind load rating up to 2400 Pa
• 12-year enhanced product warranty
• 30-year linear power performance warranty

Ideal Applications

• Commercial solar installations
• Utility-scale solar projects
• Agricultural solar systems
• Large residential ground mounts
• Carports and canopy systems
• Tracker-based installations
• High-production bifacial arrays

Advanced N-Type TOPCon Performance

The TOPBiHiKu6 series uses advanced N-type TOPCon cells designed to improve long-term production and reduce degradation over time. Compared to traditional PERC modules, N-type technology offers improved temperature performance and stronger long-term energy retention.

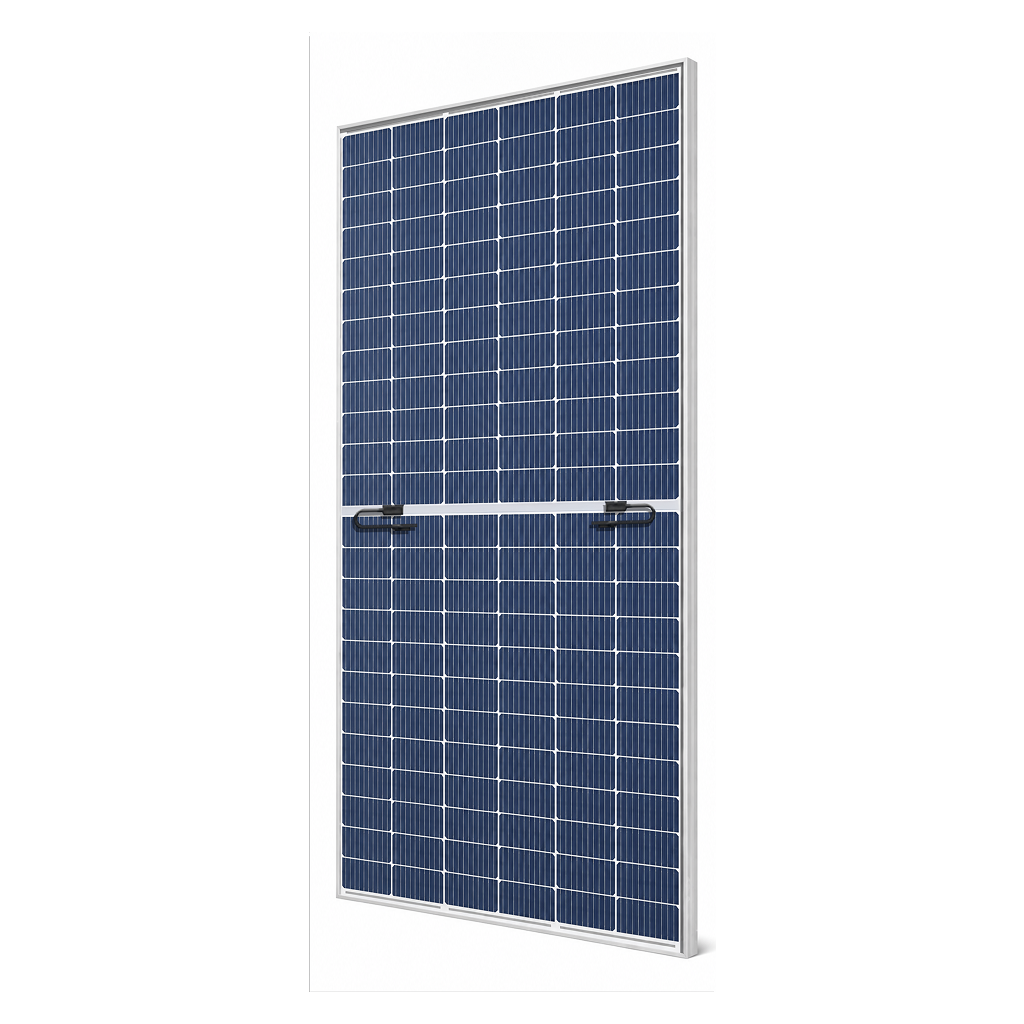

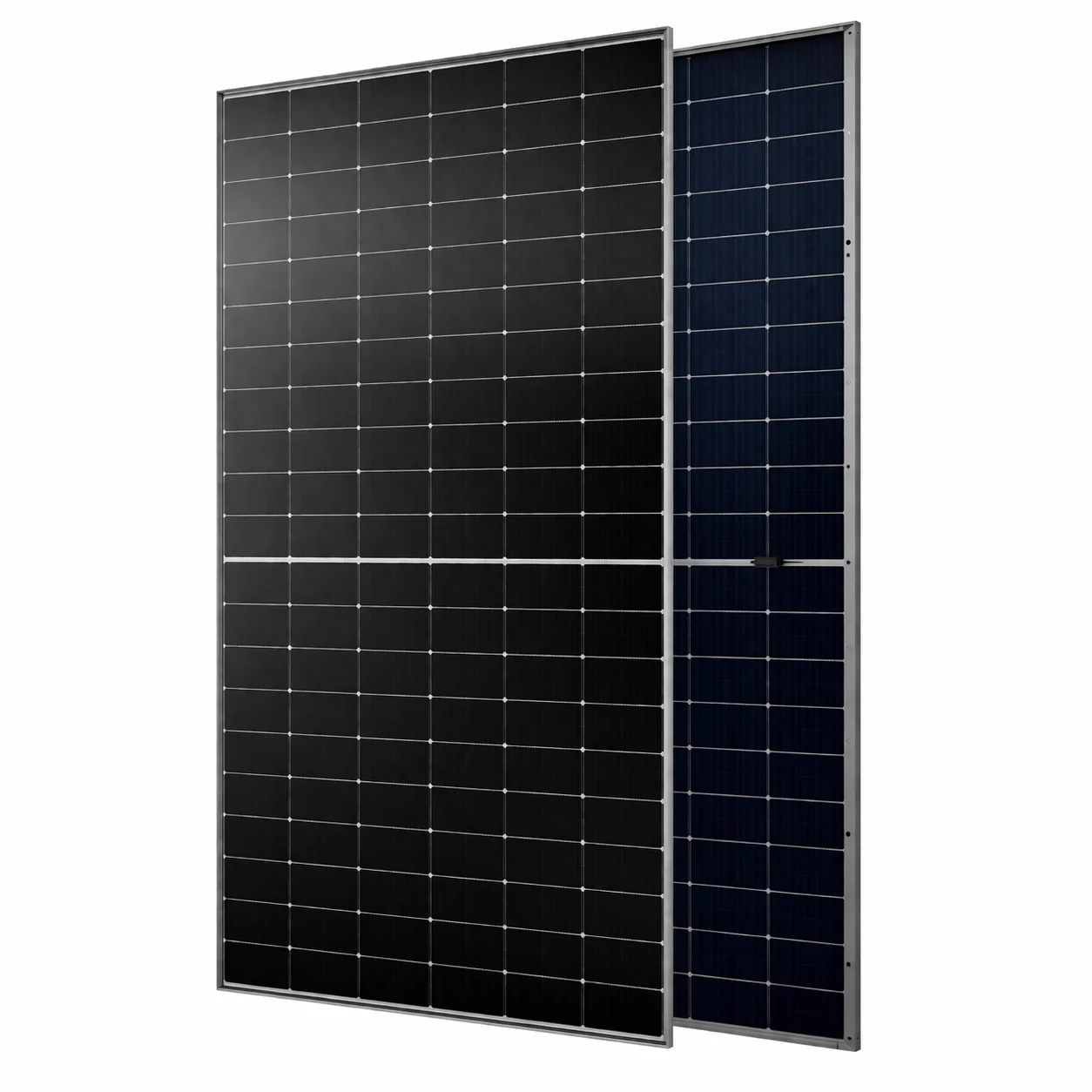

The bifacial dual-glass construction allows the module to generate additional power from reflected light on the rear side of the panel. Depending on mounting conditions and ground reflectivity, bifacial gain can significantly increase total energy production.

Built for Harsh Conditions

Designed for demanding environments, the CS6.2-66TB-620 features:

• Dual 2.0 mm heat-strengthened glass
• Anodized aluminum alloy frame
• IP68-rated junction box
• High mechanical load ratings for snow and wind resistance

Electrical Specifications

Mechanical Specifications

Warranty

• 12-Year Enhanced Product Warranty
• 30-Year Linear Power Performance Warranty
• First-year degradation no more than 1%
• Annual degradation after year one no more than 0.4%
