Boviet 385W (Pallet of 26) Mono Solar Panel BVM6612M
Pallet Only- 26 panels per pallet

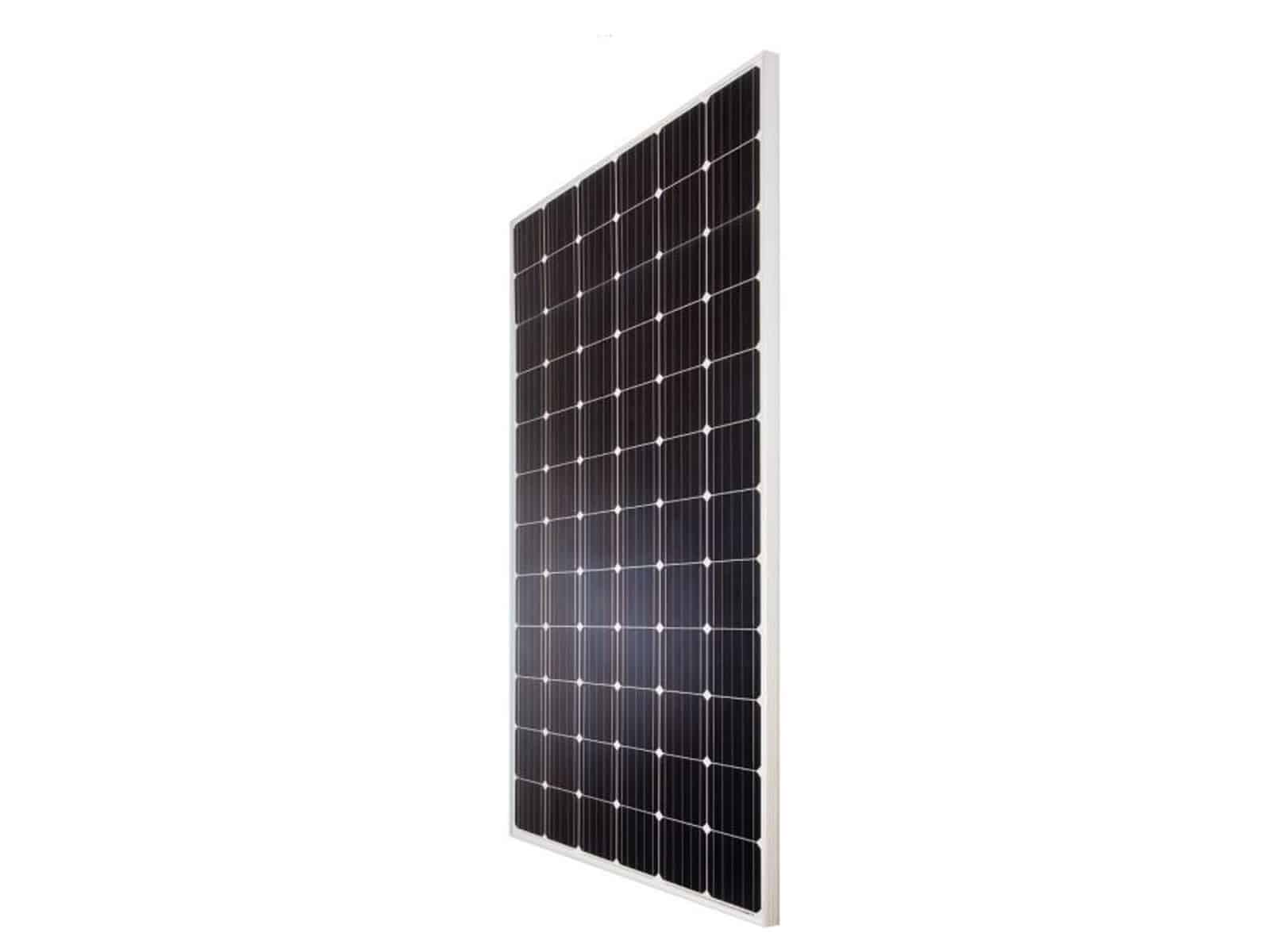

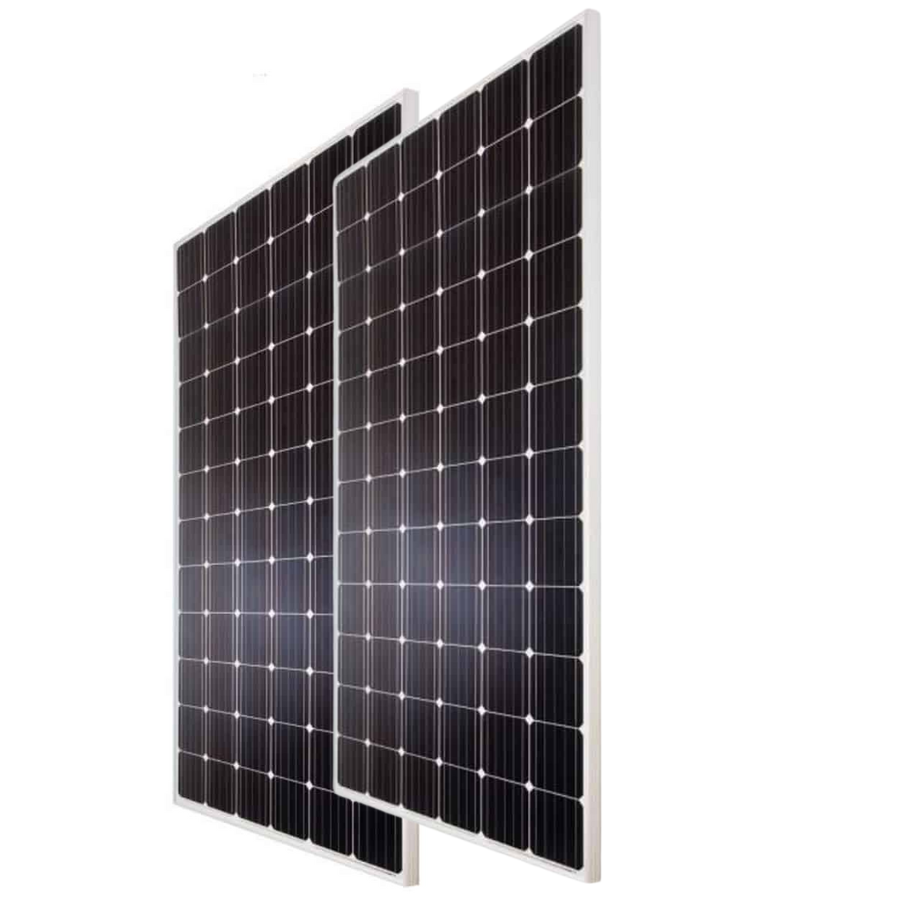

The Boviet BVM6612M 385W monocrystalline solar panel delivers dependable power. Engineered with high-quality 72-cell mono PERC technology, robust mechanical load ratings, and extended warranty coverage, this module is designed to perform reliably in harsh operating environments.
Boviet is recognized for manufacturing consistency and stringent quality control processes, including double EL testing on every cell and module to ensure defect-free production and maximum field performance.
Key Technical Details
-
385W monocrystalline PERC output
-
19.40% maximum module efficiency
-
72-cell configuration (6×12) with 158.75 mm monocrystalline cells
-
0 to +5W guaranteed positive power tolerance
-
High transparency 3.2 mm low-iron tempered glass
-
Anodized aluminum alloy frame
-
IP67 junction box with 3 bypass diodes
-
Designed for 1000V or 1500V DC systems
-
Certified for high salt mist and ammonia resistance
-
Engineered to withstand 5400 Pa snow loads and 2400 Pa wind loads
-
Standard MC4-compatible connectors
-
NOCT: 45±2°C
Warranty
-
12-Year Product Warranty
-
25-Year Linear Power Output Warranty
This ensures long-term reliability, stable performance, and protection against manufacturing defects throughout the lifecycle of the system.
Product Specification Table
Electrical Specifications (STC)
| Specification | BVM6612M-385W |
|---|---|
| Rated Power (Pmax) | 385W |
| Module Efficiency | 19.40% |
| Maximum Power Voltage (Vmp) | 39.29 V |
| Maximum Power Current (Imp) | 9.80 A |
| Open Circuit Voltage (Voc) | 48.69 V |
| Short Circuit Current (Isc) | 10.26 A |
| Power Tolerance | 0 ~ +5W |
Electrical Specifications (NOCT)
| Specification | Value |
|---|---|
| Pmax (NOCT) | 285W |
| Vmp (NOCT) | 36.08 V |
| Imp (NOCT) | 7.90 A |
| Voc (NOCT) | 44.71 V |
| Isc (NOCT) | 8.27 A |
Thermal Characteristics
| Parameter | Value |
|---|---|
| Pmax Temp Coefficient | −0.39 %/°C |
| Voc Temp Coefficient | −0.295 %/°C |
| Isc Temp Coefficient | +0.039 %/°C |
| NOCT | 45 ±2°C |
Mechanical Specifications
| Specification | Value |
|---|---|
| Module Dimensions | 77.95 × 39.45 × 1.57 inches |
| Weight | 50.05 lbs |
| Solar Cells | Mono 158.75 × 158.75 mm |
| Cell Count | 72 cells (6×12) |
| Glass | 3.2 mm low-iron tempered glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP67 rated |
| Connectors | MC4 compatible |
| Output Cable | 4mm², 1000 mm length |
Maximum Ratings
| Parameter | Value |
|---|---|
| Operating Temperature | −40°C to +85°C |
| Maximum System Voltage | 1000V / 1500V |
| Maximum Series Fuse Rating | 15/20A |
| Snow Load Rating | 5400 Pa |
| Wind Load Rating | 2400 Pa |
Pallet & Container Information
| Specification | Value |
|---|---|
| Panels per Pallet | 26 |
| Pallets per 40HQ Container | 22 |
| Panels per Container | 572 |
| Pallet Weight | 1,411 lbs |
| Pallet Dimensions | 77.95 × 44.09 × 45.28 inches |
