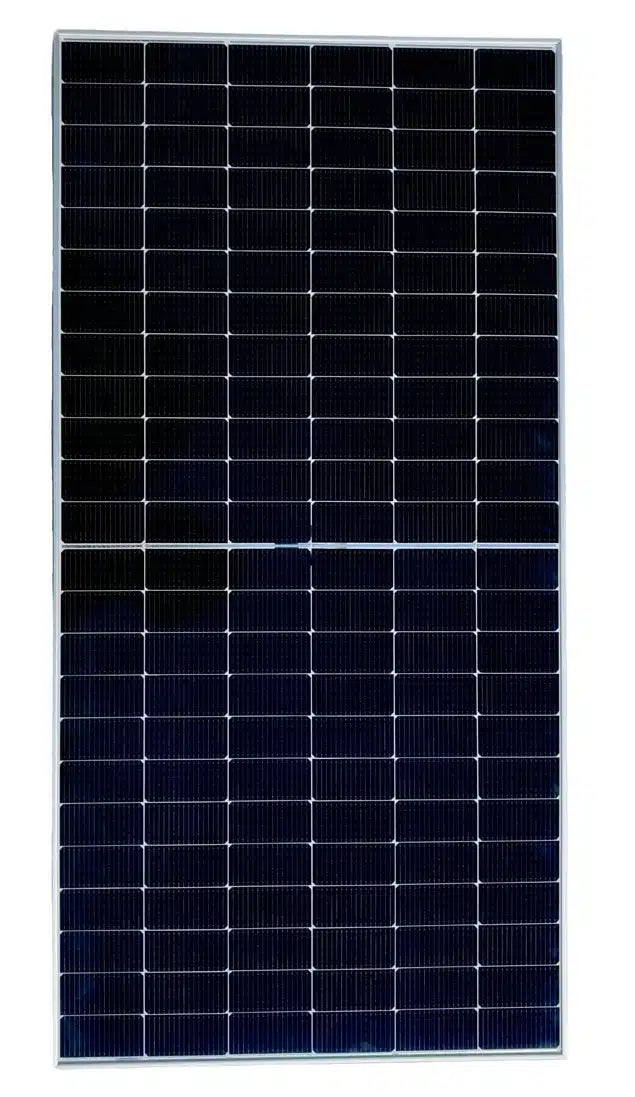

Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
MPN No: AA-530US-6x24GG
Expected ship date Nov 26 - Dec 03
In Stock
$349.99
Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
Regular price
$349.99
Sale price
$0.66
/watt
New
100 IN STOCK
Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
In Stock
MPN No: AA-530US-6x24GG
Regular price
$349.99
Sale price
$0.66
/watt
Expected ship date Nov 26 - Dec 03
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$349.99
Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
MPN No:
AA-530US-6x24GG
Expected ship date Nov 26 - Dec 03
In Stock
Bila Solar 530W 144 Half Cut Mono PERC Solar Panel AA-530US-6x24GG (Domestic Content)
The AA-530US-6x24GG is a U.S.-made 530 W mono PERC module built with 182 mm half-cells. Designed for 1,500 Vdc systems, it pairs high power density with robust mechanicals (5400 Pa / 2400 Pa) and a 12-year product / 30-year linear power warranty. Cells are made in the USA and modules are assembled in Indiana, qualifying for domestic-content incentives.
Key Benefits
High Power Density: 530 W nameplate with 20.5% module efficiency on a standard 2278 × 1134 mm frame.
U.S. Manufacturing: Cells made in USA, modules assembled in Indiana for domestic-content compliance.
Bankable Reliability: 1,500 Vdc rating, IP68 J-box, UL 61730/61215; mechanical loads to 5400 Pa (front) / 2400 Pa (back).
Positive Power Tolerance: 0 to +5 W binning for consistent field output.
Special Technology
Half-Cut, Multi-Busbar Design: 144 half-cells (6×24) reduce resistive loss and shade sensitivity.
Bifacial Mono PERC Cells: Enhanced low-light response boosts energy yield (module is mono with polymer backsheet).
Warranty
12-Year Product Warranty · 30-Year Linear Power Warranty (≤2% first-year, ≤0.45%/yr thereafter).
Best Uses
C&I Rooftops & DG: Long strings on 1500 Vdc systems; robust loading for harsh sites.
Large Residential: High wattage per module for limited roof area.
Specifications Table
| Specification | Data |
|---|---|
| Model | AA-530US-6x24GG |
| Cell / Layout | Monocrystalline PERC, 182 mm · 144 half-cells (6×24) |
| Rated Power (STC) | 530 W (0 ~ +5 W tolerance) |
| Module Efficiency | 20.5% |
| Vmp / Imp (STC) | 41.31 V / 12.83 A |
| Voc / Isc (STC) | 49.30 V / 13.72 A |
| Max Power (NMOT) | 400.8 W |
| Vmp / Imp (NMOT) | 39.18 V / 10.23 A |
| Voc / Isc (NMOT) | 46.75 V / 11.07 A |
| Max System Voltage | 1500 Vdc (IEC/UL) |
| Max Series Fuse | 25 A |
| Operating Temp | −40°C to +85°C |
| Temp Coefficients (Pmax / Voc / Isc) | −0.35%/°C · −0.26%/°C · +0.048%/°C |
| NMOT / NCOT | 42 ± 2°C / 45 ± 2°C |
| Front Glass | 3.2 mm low-iron, AR, semi-tempered |
| Frame | Anodized aluminum alloy |
| Backsheet | Polymer backsheet |
| Junction Box | IP68, 3 bypass diodes |
| Connector / Leads | MC4 or similar; 4 mm² / 12 AWG; +400 mm / −200 mm (std) |
| Mechanical Loads | Front 5400 Pa · Rear 2400 Pa |
| Fire Rating | UL Type 1 |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.18 in |
| Weight | 60.85 lb |
| Packing | 36 pcs/pallet · 576 pcs/53′ dry van |
| Certifications | UL 61730, UL 61215 |
| Warranty | 12-Year Product · 30-Year Linear Power |
About Bila Solar:
Bila Solar is a solar manufacturer focused on high-performance, sustainable photovoltaic solutions. The company produces reliable, durable, and efficient solar modules designed for residential, commercial, and utility-scale projects, emphasizing innovation, quality, and clean energy to support the global transition toward renewable power.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: Are AA-530US-6x24GG panels suitable for areas with low sunlight?
Yes, these panels are designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and during early mornings or late afternoons.
Q: What kind of warranty does AA offer for the AA-530US-6x24GG panel?
AA provides a 12-year product warranty and a 30-year linear power output warranty, ensuring reliable performance and long-term energy yield.
Q: Are these panels compatible with different mounting systems?
Yes, the AA-530US-6x24GG panels are compatible with a wide variety of standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted arrays.
Q: How durable are the AA-530US-6x24GG panels in harsh weather conditions?
These panels are built to withstand extreme environments, including heavy snow loads, strong winds, and high heat. Their design includes high-transmittance, anti-reflective glass, which boosts both durability and efficiency.
Q: Can the AA-530US-6x24GG panels help me save on energy costs?
Absolutely! With their high efficiency, the AA-530US-6x24GG panels generate more electricity per square foot, lowering your energy bills and reducing the payback period on your solar investment.
Q: How many AA-530US-6x24GG panels do I need for my home?
This depends on your energy usage and available roof space. As a general guide, for a household or business consuming around 10,000 kWh/year, you would need approximately 19–20 panels. Consult with a certified installer to determine the exact number for your system.
Q: How many AA-530US-6x24GG panels are in each pallet?
Each pallet includes 36 high-efficiency AA-530US-6x24GG panels.
