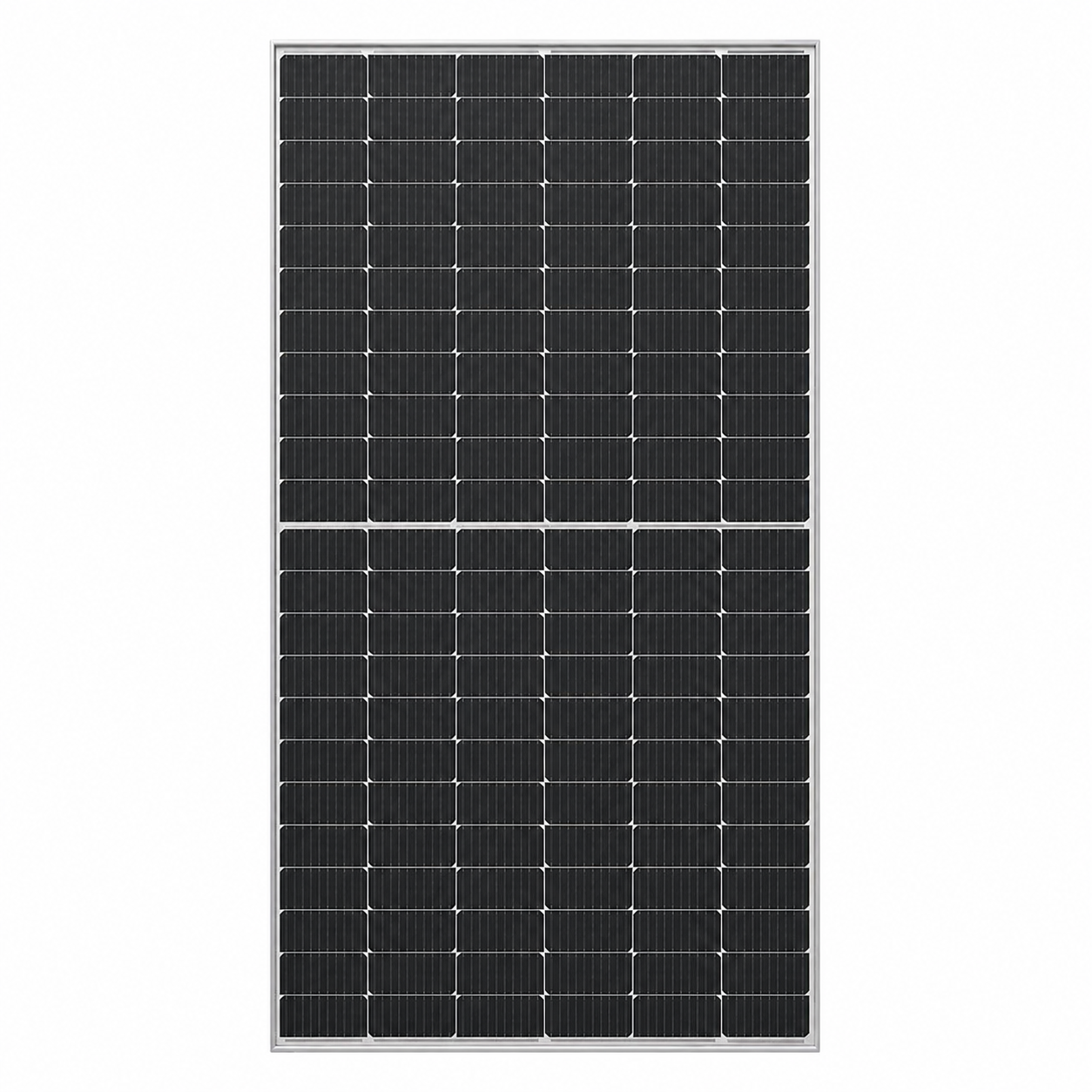

Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
MPN No: AC-590TGB/144TS
Contact us for Delivery Date
Out Of Stock
$352.25
Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
Regular price
$352.25
$0.59/watt
SOLD OUT
Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
Out Of Stock
MPN No: AC-590TGB/144TS
Regular price
$352.25
$0.59/watt
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$352.25
Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
MPN No:
AC-590TGB/144TS
Contact us for Delivery Date
Sold out
≥ 8
Axitec 590W GXXL TS Bifacial N-Type Solar Panel AC-590TGB/144TS
The AXITEC AC-590TGB/144TS is a high-performance bifacial solar module designed with advanced TOPCon N-Type technology and a durable glass/glass structure. Featuring 144 half-cut cells, this module delivers exceptional efficiency, strong mechanical performance, and long-term energy reliability.
Engineered to maximize energy production, the bifacial design enables additional rear-side power generation while maintaining low degradation rates and excellent performance across a wide range of environmental conditions.
Key Technology
-
TOPCon N-Type Cell Technology
Provides higher efficiency, lower degradation, and improved long-term energy yield. -
Bifacial Energy Generation
Captures rear-side irradiance for up to 30% additional power output depending on installation conditions. -
Glass/Glass Construction
Enhances durability, moisture resistance, and long-term reliability. -
144 Half-Cell Design
Reduces resistive losses and improves performance under partial shading. -
Low Degradation Rate
Maximum 1% degradation in the first year and 0.4% annually thereafter. -
PID Resistance
Minimizes potential-induced degradation through glass/glass technology. -
Enhanced Safety Design
Improved fire performance and structural reliability for safe installations. -
Positive Power Tolerance
Power sorting from 0 to +5 W ensures consistent output performance.
Best Uses
-
Residential Rooftop Systems
Ideal for installations requiring high-efficiency modules and long-term reliability. -
Ground-Mount Installations
Optimized for bifacial gain in open environments. -
High-Output Solar Projects
Designed for systems focused on maximizing energy production and durability.
Warranty
- Product Warranty: 30 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: ≤ 1%
- Annual Degradation: ≤ 0.40%
- 30-Year Output: 87.4% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | AXITEC |
| Model | AC-590TGB/144TS |
| Series | AXIworldbiperfect GXXL TS |
| Cell Technology | N-Type Bifacial (TOPCon), Glass/Glass |
| Cell Configuration | 144 Half-Cells |
| Maximum Power (Pmax) | 590 W |
| Module Efficiency | Up to 22.84% |
| Maximum Power Voltage (Vmp) | 43.50 V |
| Maximum Power Current (Imp) | 13.57 A |
| Open Circuit Voltage (Voc) | 52.60 V |
| Short Circuit Current (Isc) | 14.51 A |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.048% / °C |
| Nominal Operating Cell Temperature (NOCT) | 45°C ± 2°C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 89.69 × 44.65 × 1.38 in |
| Weight | 71.65 lb |
| Front Glass | 2.0 mm semi-tempered AR solar glass |
| Back Glass | 2.0 mm glass |
| Frame | Silver Aluminum Frame (35 mm) |
| Junction Box | IP68, 3 bypass diodes |
| Connector | IP68 Plug System (DS01) |
| Output Cable | ~0.4 m, 4 mm² |
| Mechanical Load | 3600 Pa / 1600 Pa (design) |
| Pallet Quantity | 36 modules per pallet |
About AXITEC:
AXITEC is a globally recognized solar manufacturer known for German-engineered photovoltaic modules that deliver high efficiency, durability, and long-term performance across a wide range of solar applications.
High-Power Bifacial Performance with Advanced N-Type Technology
The AXITEC AC-590TGB/144TS combines advanced TOPCon N-type cells, bifacial energy gain, and robust glass/glass construction—making it a powerful and reliable solution for modern solar installations focused on maximum energy output and long-term durability.
