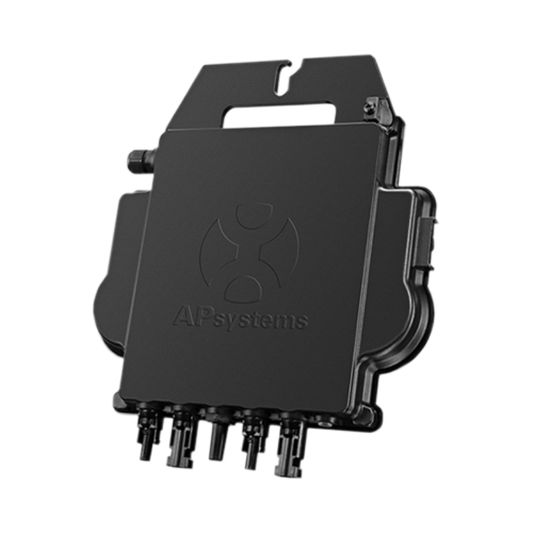

APSystems APSmart DS3-L-NA-768VA 118001 Single Phase Dual Module Microinverter
APSystems APSmart DS3-L-NA-768VA 118001 Single Phase Dual Module Microinverter
APSystems APSmart DS3-L-NA-768VA 118001 Single Phase Dual Module Microinverter
APSystems APSmart DS3-L-NA-768VA 118001 Single Phase Dual Module Microinverter
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience

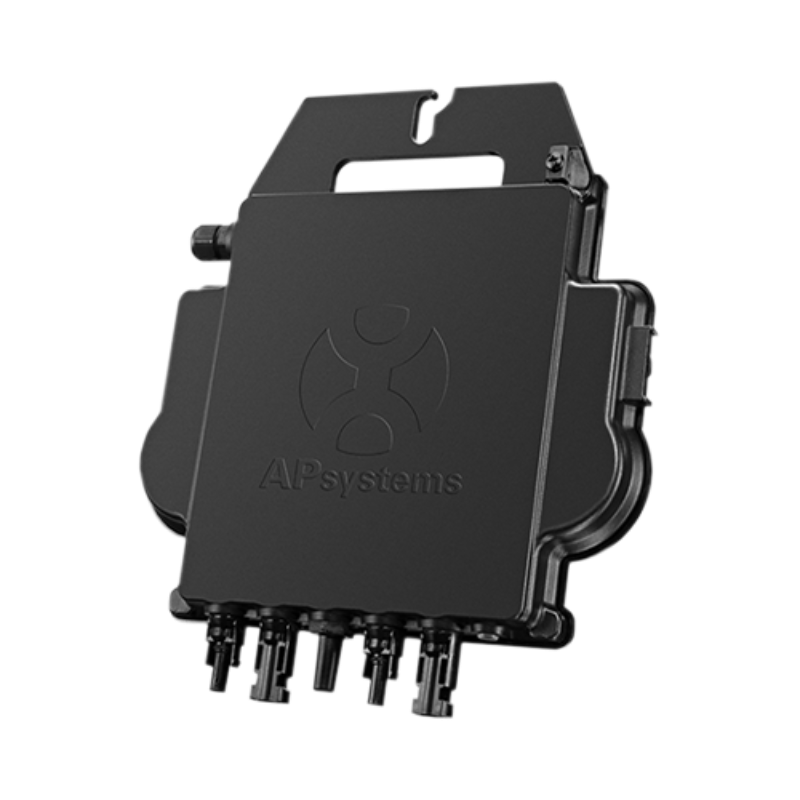

APSystems APSmart DS3-L-NA-768VA 118001 Single Phase Dual Module Microinverter
DS3-L-NA-768VA
Specifications
APSystems APSmart DS3-L-NA-768VA 118001 Single Phase Dual Module Microinverter
Features
The DS3-L microinverter is part of the APsystems DS3 series, providing reliable and efficient energy management for residential and commercial solar systems:
- Dual Input Channels: Independent MPPT (Maximum Power Point Tracking) for two connected modules.
- High Power Output: Up to 768 VA per microinverter, optimized for larger PV modules.
- Efficiency: 97% peak efficiency and 96.5% CEC weighted efficiency.
- Robust Communication: Encrypted ZigBee communication for secure and reliable data transfer.
- Durable Design: Encapsulated components for enhanced thermal dissipation, waterproofing, and long-term reliability.
- Compliance: Meets NEC 2020 690.12 Rapid Shutdown and CA Rule 21 (UL 1741 SA) requirements.T
Installation
- Compact and lightweight (5.7 lbs) with dimensions of 10.3 × 8.6 × 1.6 inches for easy installation.
- Stäubli MC4 connectors simplify wiring and provide secure DC connections.
- NEMA 6-rated enclosure for reliable performance in outdoor environments.
Applications
- Designed for residential and small commercial solar systems.
- Supports PV module power ranges of 300–660 W per panel, compatible with modern high-powered modules.
Specifications
| Category | Specification |
|---|---|
| Input Data (DC) | |
| Recommended PV Module Power | 300–660 W per panel |
| Peak Power Tracking Voltage | 32–55 V |
| Max Input Voltage | 60 V |
| Max Input Current | 20 A × 2 |
| Output Data (AC) | |
| Max Output Power | 768 VA |
| Nominal Voltage | 240 V (Range: 211–264 V) |
| Nominal Frequency | 60 Hz (Range: 59.3–60.5 Hz) |
| Max Output Current | 3.20 A |
| Power Factor | 0.99 (adjustable: 0.7 leading to 0.7 lagging) |
| Mechanical Data | |
| Dimensions (W×H×D) | 10.3 × 8.6 × 1.6 in |
| Weight | 5.7 lbs |
| Enclosure Rating | NEMA 6 (outdoor rated) |
| Operating Temperature | -40°F to +149°F (-40°C to +65°C) |
| Cooling | Natural convection |
| Compliance | |
| Standards | UL 1741 SA, CSA C22.2, FCC, NEC 2020 |
