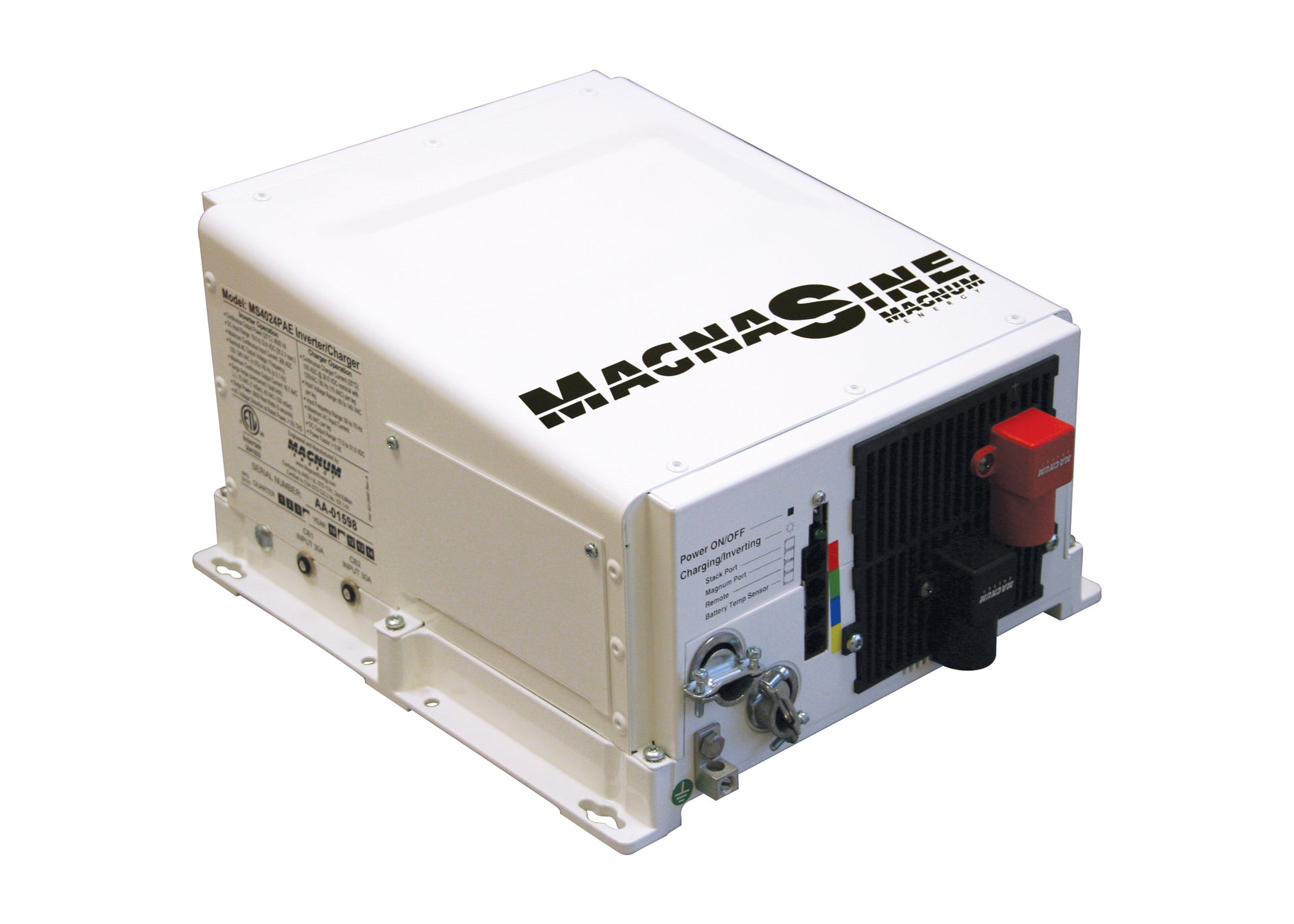

The Magnum Energy MS4024PAE is a premium 4,000-watt pure sine wave inverter/charger designed for off-grid, backup power, and renewable energy applications requiring reliable 120/240VAC split-phase power from a 24V battery bank. Built for residential, commercial, marine, and remote power systems, the MS4024PAE combines inverter, battery charger, and transfer switch functionality into a single compact package.
Delivering true split-phase 120/240VAC output from a single inverter, the MS4024PAE provides clean, utility-quality power capable of operating sensitive electronics, motors, pumps, compressors, and household appliances. Its advanced Power Factor Corrected (PFC) battery charger ensures efficient charging performance from generators or utility sources while reducing generator sizing requirements.
The MS4024PAE also supports parallel stacking of up to four identical units, allowing installers to expand system capacity as energy demands increase over time.
Key Technology
-
4,000W Pure Sine Wave Output
Provides utility-quality power suitable for sensitive electronics, appliances, and motor loads. -
120/240VAC Split-Phase Output
Produces both 120VAC and 240VAC power from a single inverter platform. -
Integrated Multi-Stage Battery Charger
Automatically charges battery banks using advanced power factor corrected charging technology. -
24V Battery Platform
Optimized for medium and large battery banks in off-grid and backup power systems. -
Parallel Expansion Capability
Supports up to four identical MS-PAE inverters operating together for increased output capacity. -
30A Pass-Through Per Leg
Automatically transfers utility or generator power to loads while charging batteries. -
Battery Temperature Compensation
Adjusts charging voltage automatically for improved battery life and charging performance. -
Comprehensive Protection Features
Includes overcurrent, over-temperature, low battery, and high battery voltage protection.
Best Uses
-
Off-Grid Homes and Cabins
Provides dependable split-phase power for complete off-grid electrical systems. -
Residential Backup Power Systems
Automatically supplies power during utility outages. -
Solar Energy Storage Systems
Pairs with photovoltaic arrays and battery banks for renewable energy installations. -
Agricultural and Remote Sites
Ideal for barns, pumps, workshops, and telecommunications locations. -
Marine and Specialty Applications
Suitable for large mobile and marine battery systems requiring 120/240VAC power.
Warranty
- Standard Warranty: 3 Years
- Output Waveform: Pure Sine Wave
- Battery Voltage: 24V DC
- Output Voltage: 120/240VAC Split Phase
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Magnum Energy |
| Part Number | MS4024PAE |
| Series | MS-PAE Series |
| Product Type | Pure Sine Wave Inverter/Charger |
| Continuous Power Output | 4,000W |
| Battery Voltage | 24V DC |
| AC Output Voltage | 120/240VAC Split Phase |
| Output Frequency | 60Hz |
| Waveform | Pure Sine Wave |
| Maximum Continuous DC Current | 222A |
| Recommended Battery Capacity | 200Ah Minimum (400Ah+ for heavy loads) |
| Maximum Parallel Units | 4 Inverters |
| AC Pass Through | 30A Per Leg |
| Communication Protocol | RS485 |
| Remote Compatibility | ME-RC, ME-ARC, ME-RTR |
| Battery Monitor Compatibility | ME-BMK |
| Generator Start Compatibility | ME-AGS-N |
| Battery Temperature Sensor | Included |
| Cooling Method | Forced Air Cooling |
| Installation Type | Indoor / Protected Compartment |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Maximum Battery Cable Length | 15 ft (4.6 m) |
| Dimensions | 13.3 × 12.5 × 8.0 in |
| Weight | 55 lbs |
| Certifications | UL1741, CSA C22.2 No.107.1-01, ETL Listed |
About Magnum Energy:
Magnum Energy, a Sensata Technologies brand, manufactures premium inverter and energy storage products for off-grid, backup power, marine, and renewable energy applications. Magnum products are widely recognized for their reliability, durability, and long-term performance in demanding environments.
Reliable Split-Phase Power for Off-Grid and Backup Applications
The Magnum Energy MS4024PAE combines pure sine wave performance, integrated charging, expandable power capability, and robust protection features into a dependable power conversion platform for residential and commercial energy storage systems.
