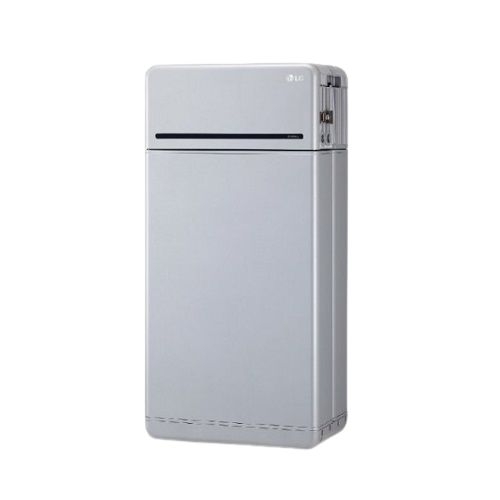

The LG Energy Solution RESU16H Prime HV Battery stands out as LG's most significant offering in its category, designed to potentially power an entire household. Addressing the modern needs of consumers, especially those working from home, the LG RESU Prime caters to the rising demand for dependable energy solutions amidst unreliable grid systems and increased power outages. It embodies a combination of self-reliance and adaptability.

A standalone RESU16H Prime delivers 16kWh of usable energy, boasting a continuous power output of 7kW and a peak of 11kW. Doubling up by connecting two RESU16H Prime batteries to one inverter boosts the usable energy to 32kWh (maintaining the 7kW power output).

For those requiring even more power, integrating a second inverter paired with one or two batteries can achieve a 14kW continuous output. This higher power rating now covers high-surge power appliances, including pumps and air-conditioners, provided the inverter also meets the demand during outages.

Ease of installation and maintenance is a notable attribute of the battery's modular design, which comprises three primary components: the connector plate, battery modules, and control unit. The design even incorporates handles on the battery modules for added portability. Given its weight, floor installation is recommended over wall mounting. In comparison to the original RESU batteries, the RESU16H Prime showcases a more compact design and more straightforward inverter connections.

Important: The RESU16H Prime is currently only compatible with specific inverters. However, integration with the SMA Sunny Boy Storage inverters is anticipated shortly. It's not directly compatible with the first-generation SolarEdge StorEdge inverters.

Key Features:

• 16kWh usable energy.
• 7kW continuous and 11kW peak power output.
• Extended 10-year warranty with a guarantee of 70% original capacity.
• Outdoor rating in compliance with NEMA 3R (IP55).
• Temperature ranges:
  • Charging: 14°F (-10°C) to 122°F (50°C).
  • Discharge: -4°F (-20°C) to 122°F (50°C).
• Recommended operating temperature for optimal longevity: 59°F (15°C) to 86°F (30°C).
• Maximum altitude: 6,562 ft (2000 m).

Certifications:

• Battery Cells: UL1642
• Battery: CE / RCM / IEC 62619 / UL1973
• Pack: IEC62477-1
• Hazardous Materials: Class 9
• Transportation: UN38.3
