ZNShine ZXM7-SHDB 120 Cell Mono 455W

ZNShine ZXM7-SHDB 120 Cell Mono 455W

Regular price $140
Sale price $140 Regular price $170.00
18% OFF
Leave a Review

MPN No: ZNShine ZXM7-SHDB 120 Cell Mono 455W

ZNShine ZXM7-SHDB 120 Cell Mono 455W

ZNShine ZXM7-SHDB 120 Cell Mono 455W

Leave a Review
Regular price $140
Sale price $140 Regular price $170.00


Enjoy 5% Off on 5+ Pallets (36 Panels/Pallet)

View full details
Znshine Solar
23 kg
LxWxH: 76.4 × 43.3 × 48.0 in

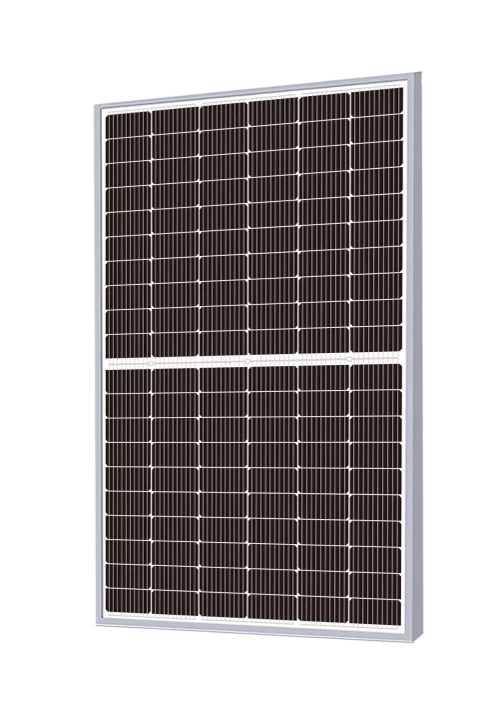

ZNShine ZXM7-SHDB120 Series 455W

10BB HALF-CELL Bifacial Monocrystalline PERC PV Module

455 Wp | 132 Cells

21.5 % Maximum Module Efficiency


Graph with increasing bars  Enhanced Efficiency and Performance

      • Excellent Cells Efficiency MBB technology reduces the distance between busbars and finger grid lines, which benefits power increase.

      • Bifacial Technology: Up to 25% additional power gain from the back side depending on albedo.

      • Better Weak Illumination Response More power output in weak light conditions, such as haze, cloudy, and early morning.

 Badge with a check showing quality  Unmatched Quality and Durability

      • TIER 1 Global: Tier 1 bankable brand, with independently certified advanced automated manufacturing.

      • Excellent Quality Management System Warranted reliability and stringent quality assurances well beyond certified requirements.


  A box with warranty in it saying 25 years  Comprehensive Warranty and Protection

      • 25-Year Performance Guarantee/12 Year Product Warranty

Elevate your solar installations with the cutting-edge ZN Shine ZXM7-SHDB120 Series 455W Solar Panel. Engineered for optimal performance and durability, this 10BB HALF-CELL Bifacial Monocrystalline PERC PV Module harnesses solar energy with unprecedented efficiency.

Perfect For:

Designed with solar installers in mind, the ZN Shine ZXM7-SHDB 455W Solar Panel is the prime selection for anyone seeking to install high-performing, durable, and reliable solar solutions. Whether for residential properties, commercial buildings, or large-scale solar farms, this panel's advanced features and robust warranty make it a superb choice for solar projects of any scale.


Product Specifications:

Product MPN
Wattage 455 W
Outer Dimensions (Include Pallet) 1903×1134×30mm
Approx. gross weight (full box) 828kg (1821 lbs)
Linear Performance Warranty 25 year output guarantee
Product Warranty 12 Years
Efficiency % 21.55%
Cell Type Mono-crystalline
Frame color (black, silver, etc.) Graphite
Brand  ZNShine
Application  Residential, Commercial, Industrial

IEC 61215/IEC 61730/IEC 61701/IEC 62716/UL 61730

ISO 9001: Quality Managerment System

ISO45001: Occupational Health and Safety Managerment System

ISO 14001: Environmental Managerment System

Open Circuit Voltage Voc(V) 39.00V
Short Circuit Current Isc(Amp) 11.17 A
Maximum Power Voltage Vmp(V) 32.30 V
Maximum Power Current Imp(A) 10.52 A
Maximum System Voltage VDC (IEC/UL)
Temperature coefficient of Power Pmax %/°C


Temperature coefficient of Voc %/°C


Temperature coefficient of Current Isc %/°C


Normal Module Operating Temperature (NMOT) °C


Output Cable [mm²-(IEC) / 12AWG (UL)]

4 mm² ,350 mm (With Connectors)

Cable Length
Connector Type


Piece per Pallet 36
