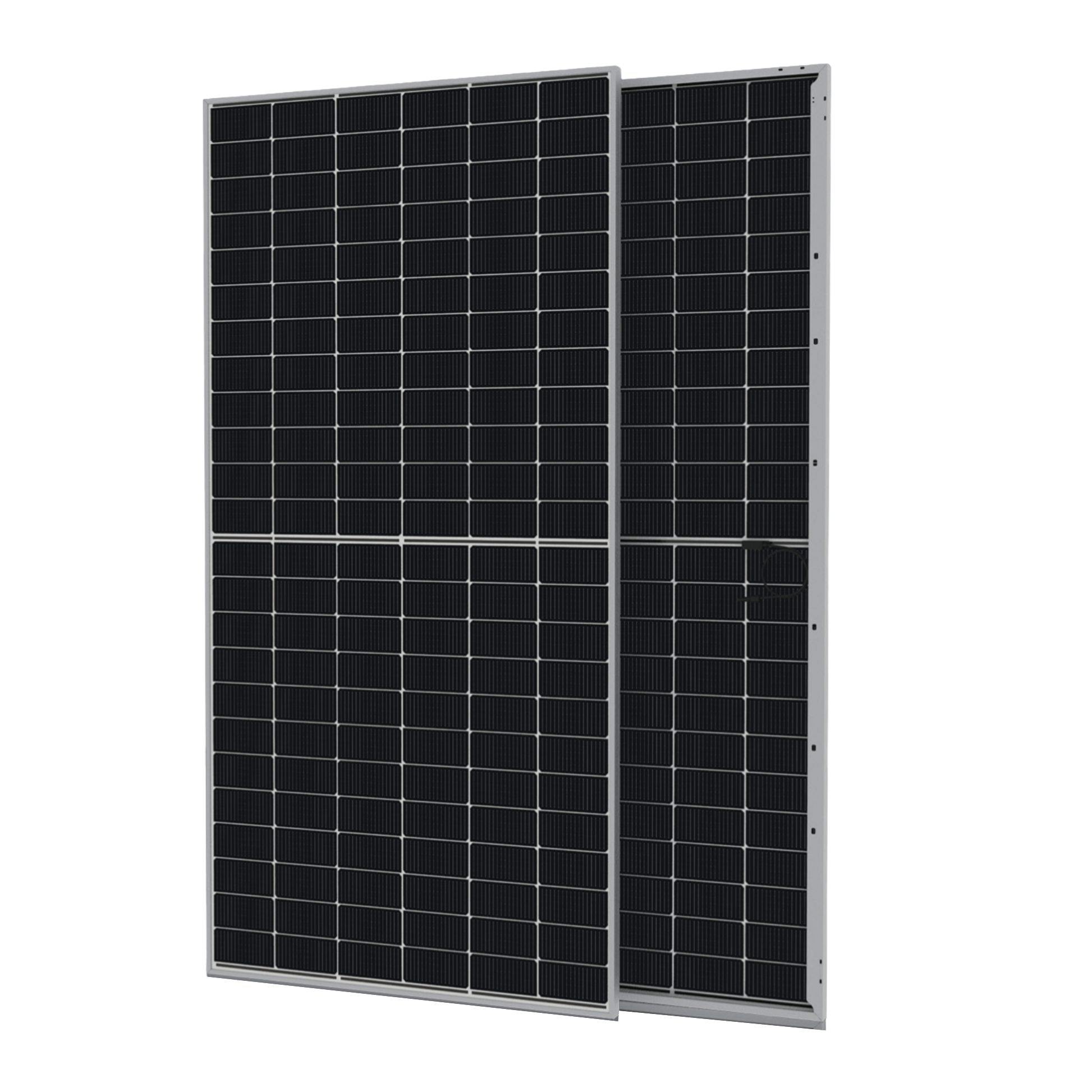

Talesun 590W BIPRO Bifacial Dual Glass N-Type Solar Panel – TM7G72M-590
The Talesun TM7G72M-590 is a high-output bifacial solar panel built with N-type TOPCon cell technology and a dual-glass design for long-term durability. Designed for larger residential, commercial, and ground-mount systems, this 590W module delivers strong front-side output with added rear-side generation potential depending on site conditions. Its dual-glass construction, 1500V system compatibility, and bifacial architecture make it a strong option for projects focused on long-term energy yield and system value.
Key Benefits
- 590W high-output module helps reduce total panel count
- Bifacial design allows rear-side power gain depending on albedo
- N-type cell technology supports lower degradation and strong low-light performance
- Dual-glass construction improves durability and weather resistance
- Excellent anti-PID performance
- IP68 junction box for improved environmental protection
- Suitable for high-humidity, windy, and dusty environments
Typical Applications
- Ground mount solar arrays
- Commercial rooftop systems
- Agricultural and open-area solar projects
- Large residential systems
- Installations where bifacial gain can improve total production
Warranty
- 12-Year Quality Assurance
- 30-Year Power Output Guarantee
Product Specifications
| Specification | Value |
|---|---|
| Manufacturer | Talesun |
| Model | TM7G72M-590 |
| Rated Power (Pmax) | 590W |
| Module Efficiency | 22.80% |
| Cell Type | N-type Mono-Crystalline (16 Busbar) |
| Module Format | 144 cells in series (6 × 24) |
| Module Type | Bifacial Dual Glass |
| Operating Voltage (Vmpp) | 44.43V |
| Operating Current (Impp) | 13.28A |
| Open-Circuit Voltage (Voc) | 52.38V |
| Short-Circuit Current (Isc) | 13.94A |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°C to +85°C |
| Maximum Series Fuse | 30A |
| Safety Protection Class | Class II |
| Front Glass | 3.2mm AR Coating Tempered Glass |
| Back Glass | 2.0mm Glazed Semi-tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68, 3 Bypass Diodes |
| Connectors | T01 / LJQ-3-CSY / MC4 / MC4-EVO2 |
| Output Cables | 4mm² (IEC), 12AWG (UL) |
| Cable Length | 350mm (+), 250mm (-) or customized |
| Dimensions (L x W x H) | 89.69 x 44.65 x 1.18 inches |
| Weight | 87.08 lbs |
| Mechanical Load | Front side 5400Pa, back side 2400Pa |
| Bifaciality Factor | 80% ± 5% |
| NMOT | 43 ± 2°C |
