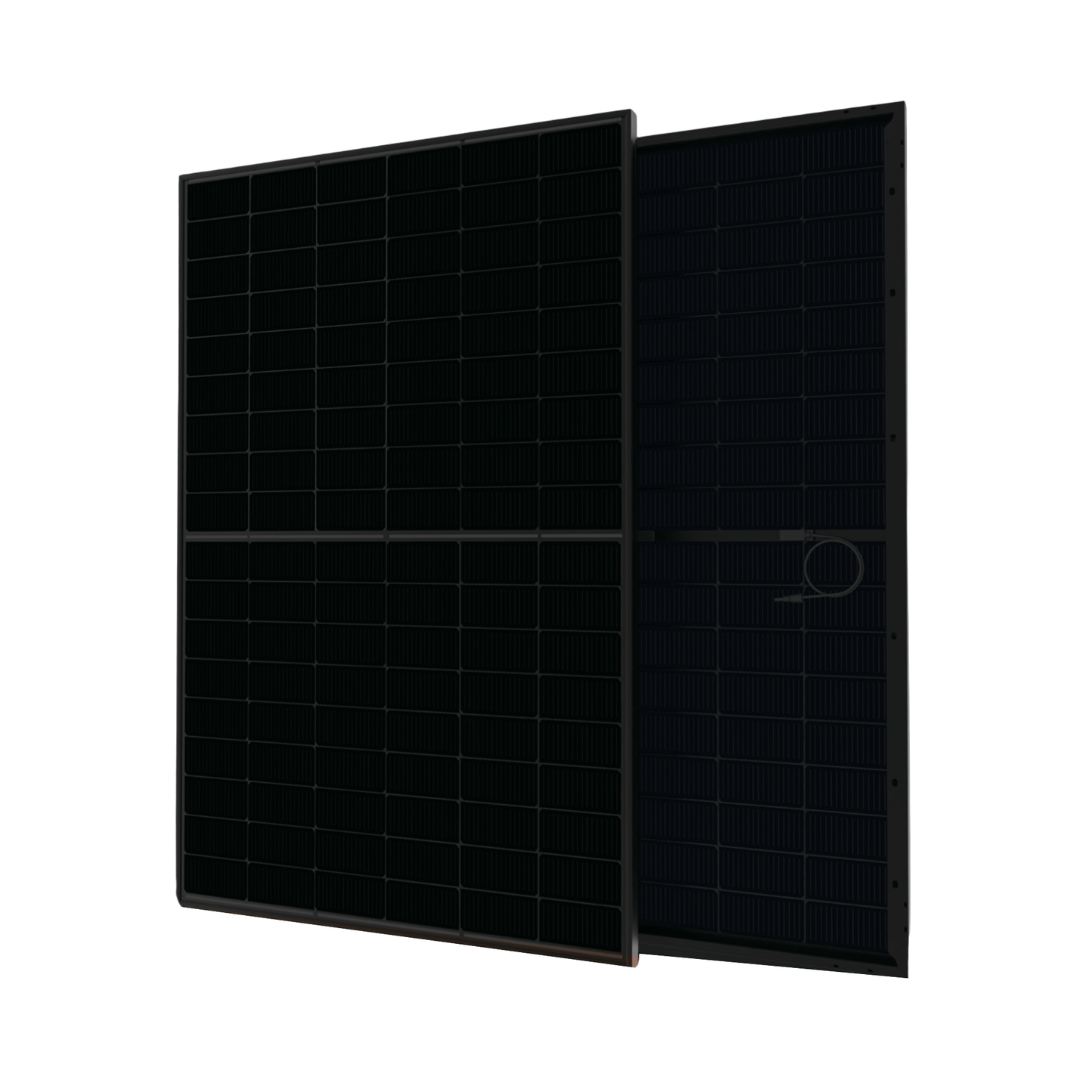

Talesun 445W BIPRO Bifacial Dual Glass N-Type All Black Solar Panel – TM7G54M-445
MPN No: TM7G54M-445
Expected ship date Jun 20 - 27
In Stock
191.06
-14%
$164.30
You will not be able to undo this action.

Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience

TM7G54M-445
MPN No: TM7G54M-445
Expected ship date Jun 20 - 27
In Stock
191.06
-14%
$164.30
Free Pickup in Houston or Dallas

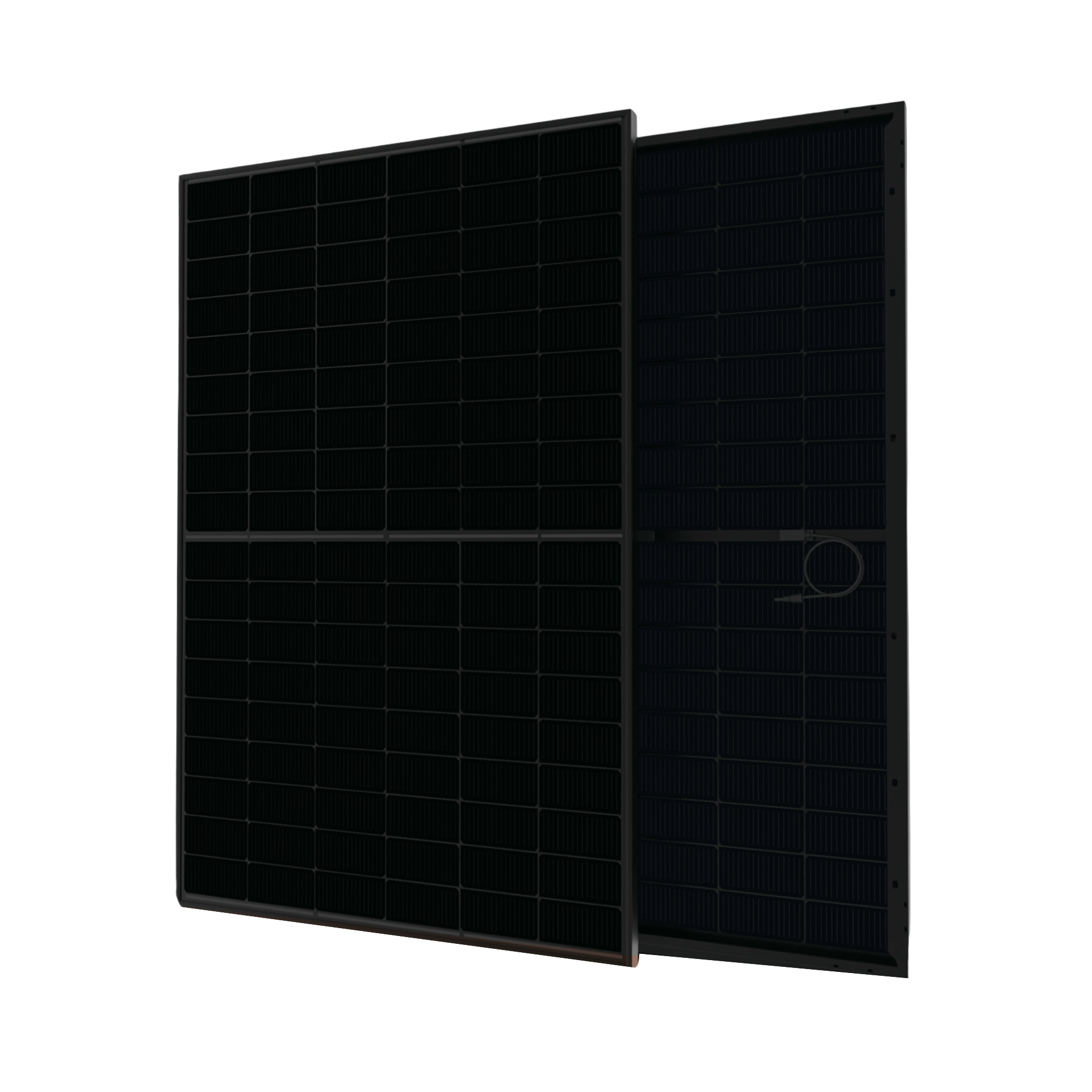

The Talesun TM7G54M-445 is a premium bifacial, dual-glass solar panel built with advanced N-type cell technology for higher efficiency, improved durability, and long-term performance. Designed with a sleek all-black aesthetic, this module delivers both strong energy output and clean visual appeal—making it a great fit for residential rooftops and high-end installations.
With bifacial energy generation, this panel captures sunlight from both the front and rear sides, increasing total energy yield—especially in reflective environments like light-colored roofs or ground mounts. Combined with N-type cell advantages like lower degradation and better temperature performance, this is a panel built for long-term reliability and higher lifetime production.
The dual-glass construction provides superior protection against moisture, UV exposure, and mechanical stress compared to traditional backsheet panels. This design improves longevity and makes the panel well-suited for harsher climates or installations where durability matters.
N-type cells offer a key advantage over conventional P-type panels by reducing common degradation issues such as light-induced degradation (LID). This means better performance year after year and a stronger return on investment.
Unlike standard monofacial panels, the TM7G54M-445 generates power from both sides. The rear side can contribute additional energy depending on installation conditions, such as:
This added production can significantly boost total system output without increasing system size.
| Specification | Value |
|---|---|
| Manufacturer | Talesun |
| Model | TM7G54M-445 |
| Rated Power (Pmax) | 445W |
| Module Efficiency | 22.80% |
| Cell Type | N-type Mono-Crystalline (16 Busbar) |
| Number of Cells | 108 cells (6 × 18) |
| Module Type | Bifacial Dual Glass (Full Black) |
| Operating Voltage (Vmpp) | 33.07V |
| Operating Current (Impp) | 13.46A |
| Open-Circuit Voltage (Voc) | 39.45V |
| Short-Circuit Current (Isc) | 13.82A |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°C to +85°C |
| Maximum Series Fuse | 30A |
| Safety Protection Class | Class II |
| Front Glass | 2.0mm AR Coating Semi-tempered Glass |
| Back Glass | 2.0mm Glazed Semi-tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68, 3 Bypass Diodes |
| Connectors | MC4 / MC4-EVO2 / Others |
| Output Cables | 4mm² (IEC), 12AWG (UL) |
| Cable Length | 350mm (+), 250mm (-) or customized |
| Dimensions (L x W x H) | 67.80 x 44.65 x 1.18 inches |
| Weight | 54.01 lbs |
| Mechanical Load | Front 5400Pa / Rear 2400Pa |
| Bifaciality Factor | 80% ± 5% |
| NMOT | 43 ± 2°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.24% / °C |
| Temperature Coefficient (Isc) | +0.043% / °C |
