S-5! VersaGard Bracket Side-Mount PV Rail Bracket for Trapezoidal Face-Attached Metal Roofs
(No L Foot Required)

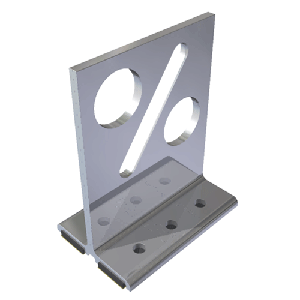

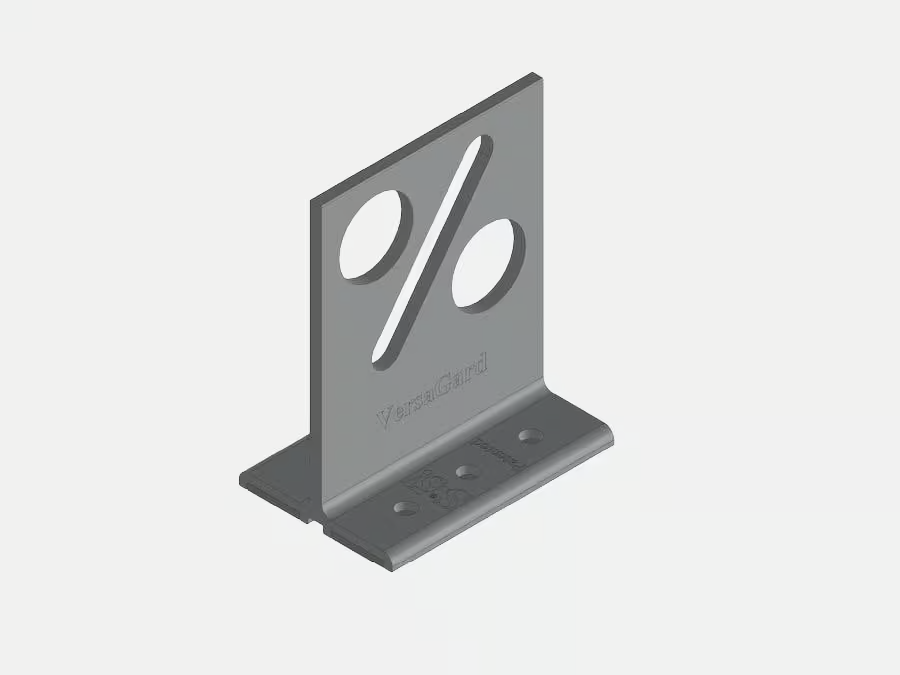

The S-5! VersaGard bracket is an engineered metal roof attachment solution that eliminates the need for a traditional L-foot when installing solar PV rails on exposed-fastener, trapezoidal metal roofs. VersaGard combines the functions of an L-foot and a base plate into a single precision-formed aluminum component, allowing side-mounted rail systems to secure directly to the roof deck or structure.
A factory-applied butyl sealant is integrated into the base and protected in the patented S-5! reservoir to prevent UV degradation, drying, and cracking over time—removing the need for messy field-applied caulking and reducing the risk of leaks.
Its diagonal adjustment slot provides up to 1.75″ (45 mm) of height adjustment for precise rail positioning.
At the same time, multiple pre-punched attachment points support secure fastening into wood decking, purlins, or structural members.
Best Uses
The VersaGard bracket is designed for versatile usage on exposed-fastened, trapezoidal metal roofing profiles, making it ideal for:
-
Solar PV installs on metal roofs without a separate L-foot
-
Portrait or landscape module orientation via side-mount rail systems
-
Residential and commercial solar projects needing reliable roof attachment
-
Retrofit installations and new construction
-
Applications where watertight long-term sealing is critical
Its compatibility with side-bolted rail systems and ease of installation make it a go-to solution for installers seeking efficient, dependable metal roof solar mounting.
Warranty
S-5! products, including VersaGard, are backed by the company’s industry-leading warranty program, providing peace of mind with manufacturer coverage against defects in materials and workmanship.
S-5! also offers technical support and documentation to assist with proper selection and installation. Warranty terms and durations may vary by region and distributor—review specific terms at time of purchase.

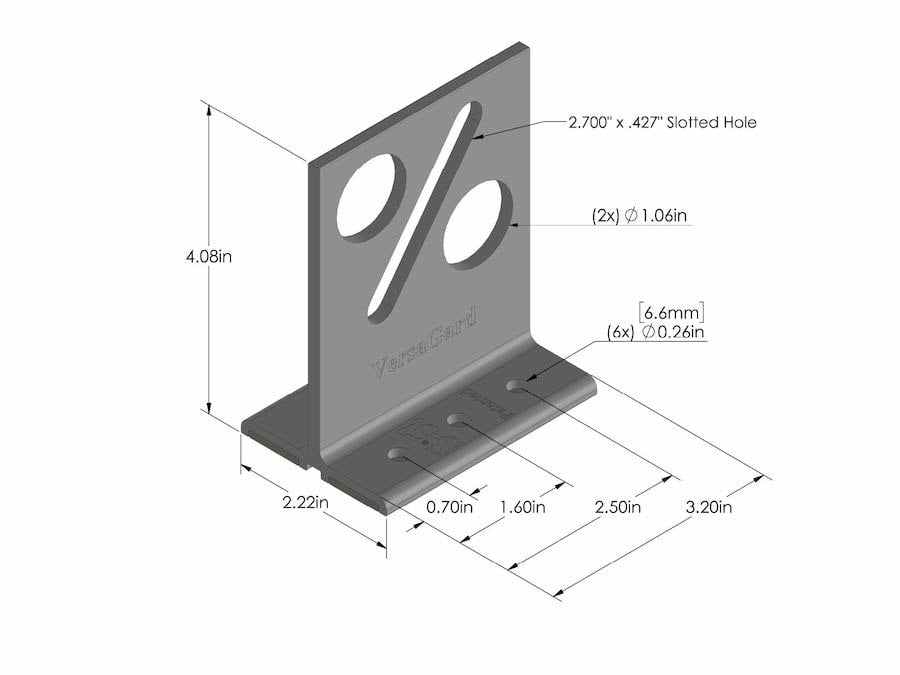

Product Specifications
| Specification | Detail |
|---|---|
| Product Type | Side-mount PV rail bracket |
| Roof Compatibility | Exposed-fastened, trapezoidal metal roofs |
| Use Case | Solar PV rail attachment (in lieu of L-foot) |
| Sealant | Factory-applied butyl sealant, UV-protected |
| Height Adjustability | Up to 1.75″ (45 mm) via diagonal slot |
| Attachment Points | Up to six points of attachment |
| Fastener Options | 3/8″ (9.5 mm), M8, M10 bolts (sold separately) |
| Mounting Orientation | Parallel or perpendicular to roof slope |
| Attachment Substrate | Wood decking, wood/steel purlins, or trusses |
| Installation | Mounts in flat of panel into supporting structure |
| Seal Protection | Butyl reservoir prevents over-compression and UV exposure |
| Fasteners Required | S-5! fasteners recommended (sold separately) |
