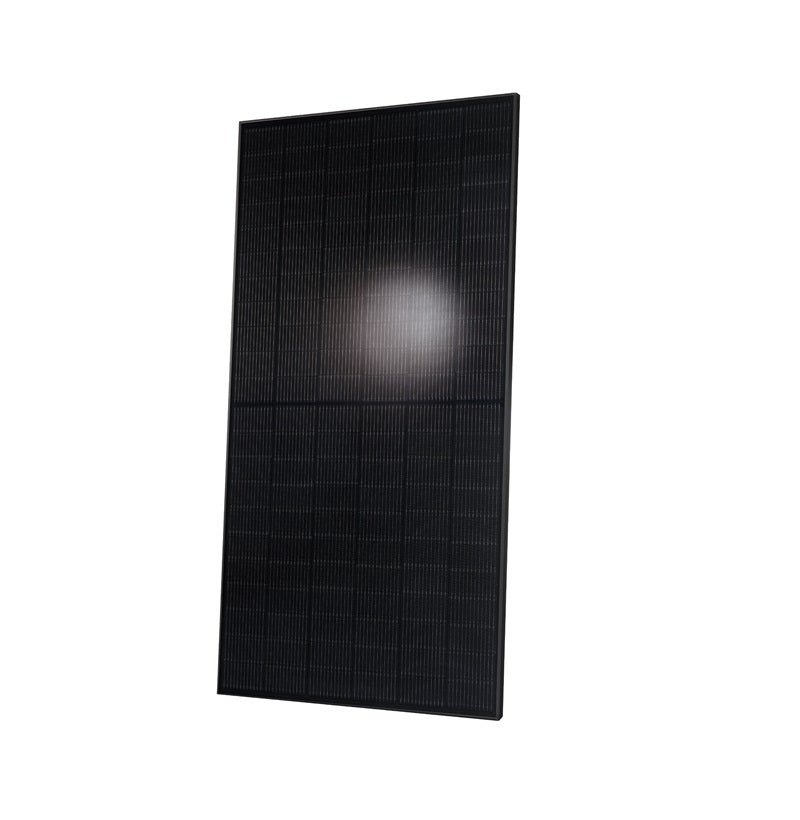

HANWHA QCELLS 400W Q.PEAK DUO BLACK ON TRANSPARENT ML-G10+ Monocrystalline Solar Panel

HANWHA QCELLS 400W Q.PEAK DUO BLACK ON TRANSPARENT ML-G10+ Monocrystalline Solar Panel

Regular price $300
Sale price $300 Regular price
SOLD OUT
Leave a Review

MPN No: Q.PEAKDUOBLKML-G10+400W

HANWHA QCELLS 400W Q.PEAK DUO BLACK ON TRANSPARENT ML-G10+ Monocrystalline Solar Panel

HANWHA QCELLS 400W Q.PEAK DUO BLACK ON TRANSPARENT ML-G10+ Monocrystalline Solar Panel

Regular price $300
Sale price $300 Regular price

($300 per panel)

Enjoy 5% Off on 5+ Pallets (32 Panels/Pallet)

View full details

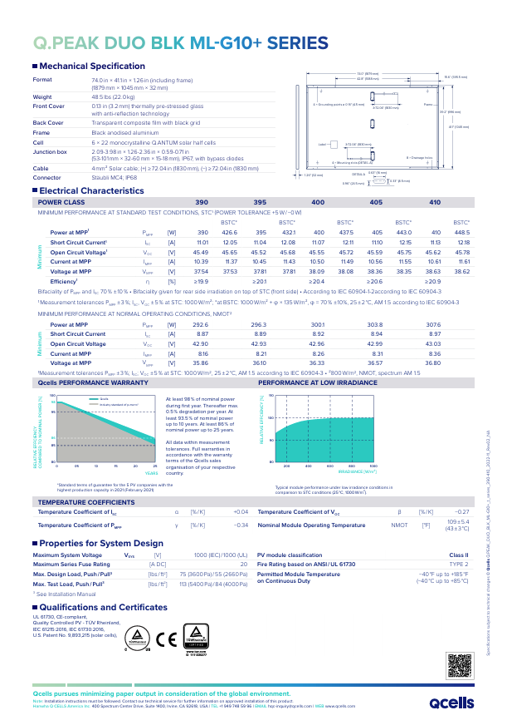

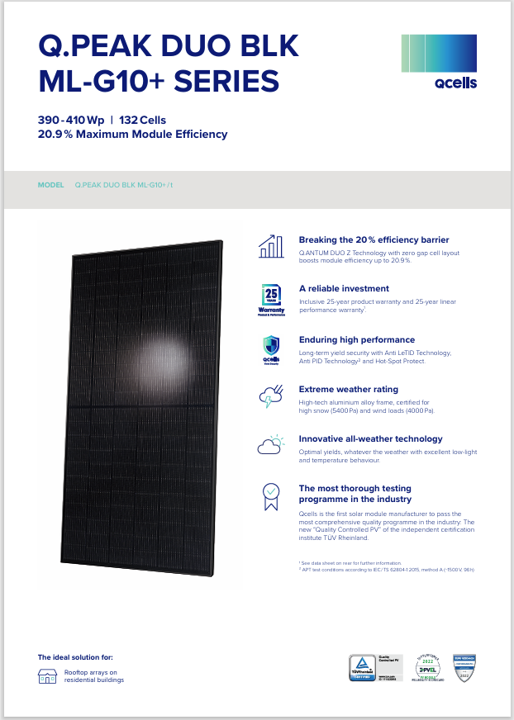

.PDF
Datasheet
Description
Questions
Reviews
Q CELLS
Manufacturer
Q CELLS
Weight
1656 lb
Dimension
LxWxH: 76.4 Ɨ 43.3 Ɨ 48.0 in

Hanwha's QCELLS Q.PEAK DUO BLK ML-G10+/t 400W

400 Wp | 132 Cells

20.9 % Maximum Module Efficiency

Elevate Your Solar Experience: Hanwha's QCELLS Q.PEAK DUO BLK ML-G10+/t 400W

Step into the future of solar energy with the Hanwha QCELLS Q.PEAK DUO BLK ML-G10+/t 400W Black on Transparent 132 Half-Cell Mono Solar Panel. This state-of-the-art 400W module sets a new standard in the solar industry, offering exceptional performance for both residential and commercial applications. Its sleek, black design not only enhances aesthetic appeal but also delivers groundbreaking efficiency and durability.

Graph with increasing barsĀ Ā Enhanced Efficiency and Performance

      • Revolutionary Q.ANTUM DUO Z Technology: Achieve peak module efficiency of 20.9%, a benchmark in solar technology. This panel excels in converting sunlight to energy efficiently, performing exceptionally even in low-light conditions.
      • Optimized Energy Yield: Engineered for superior performance in various weather conditions, ensuring consistent energy generation regardless of environmental challenges.

Ā Badge with a check showing qualityĀ Ā Unmatched Quality and Durability

      • Pioneering Quality Standards: Hanwha Q CELLS leads the industry as the first to exceed the stringent ā€œQuality Controlled PVā€ standards by TƜV Rheinland, offering unparalleled reliability and longevity.
      • Robust Build for Extreme Conditions: The panel's advanced aluminum alloy frame is designed to endure high snow (5400 Pa) and wind loads (4000 Pa), ensuring long-lasting stability and resilience.

Ā  A box with warranty in it saying 25 yearsĀ Ā Comprehensive Warranty and Protection

      • Advanced Protective Technologies: Equipped with Anti LID and Anti PID Technology, Hot-Spot Protect, and Tra.Qā„¢ for traceable quality, these panels guarantee sustained high performance.
      • 25-Year Performance Guarantee: Backed by a substantial 25-year product and linear performance warranty, promising a minimum of 86% nominal power capacity for up to 25 years.

The Q.PEAK DUO BLK ML-G10+/t 400W solar panel is more than just a product; it's a commitment to sustainable, high-efficiency energy solutions. Its innovative technology, coupled with Hanwha's dedication to excellence, positions it as the premier choice for those seeking a robust, effective, and dependable solar energy system.

Invest in the Q.PEAK DUO BLK ML-G10+/t 400W for unparalleled solar performance and join the movement towards a greener, more energy-independent future. This panel is not just an addition to your home or business; it's a step towards a smarter, eco-friendly lifestyle.Ā

Product Specifications:

Product MPN Q.PEAK DUO BLK ML-G10+/t 400W
Manufacturer Hanwha Q CELLSĀ
Wattage 400 W
Outer Dimensions (Include Pallet) 74 x 41.1 x 1.26 in
Approx. gross weight (full box) 48.5 lbs
Linear Performance Warranty 86% of Nominal Power upto 25 Years
Product Warranty 25 Years
Efficiency % 20.90%
Cell Type Mono-crystalline
Frame color (black, silver, etc.) Black
BrandĀ  Hanwha Q CELLSĀ
ApplicationĀ  Residential, Commercial, Industrial
CertificationĀ  UL 61730, CE-compliant, IEC 61215:2016, IEC 61730:2016
Open Circuit Voltage Voc(V) 45.55 V
Short Circuit Current Isc(Amp) 11.07 A
Minimum Power Voltage Vmp(V) 38.09 V
Minimum Power Current Imp(A) 10.50 A
Maximum System Voltage VDC (IEC/UL) 1000
Temperature coefficient of Power Pmax %/Ā°C -0.34%/Ā°C
Temperature coefficient of Voc %/Ā°C -0.27%/Ā°C
Temperature coefficient of Current Isc %/Ā°C +0.04%/Ā°C
Normal Module Operating Temperature (NMOT) Ā°C 43Ā°C Ā± (3Ā°C)
Output Cable [mmĀ²-(IEC) / 12AWG (UL)] 4 mmĀ² Solar cable
Cable Length 1830 mm (72.04 in)
Connector Type StƤubli MC4; IP68
Piece per Pallet 32
