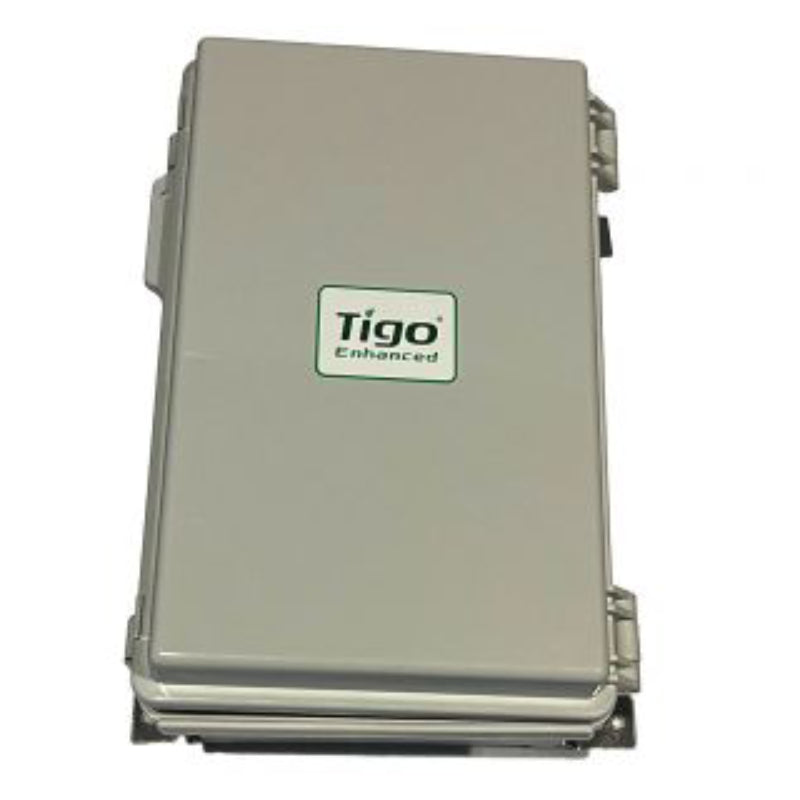

Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure

Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure

$142.28
$142.28 $149.77
5% OFF
5% OFF

Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure

Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure

No reviews
$142.28
$142.28 $149.77
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Tigo Energy
Weight
3.8 lb
Tigo Dual Core Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure

The Tigo RSS (Rapid Shutdown System) Transmitter completes the cost-effective rapid shutdown system architecture when paired with Tigo's UL-certified Fire Safety solutions - including the TS4-A-F (add-on), TS4-A-2F (add-on for two modules). The RSS Transmitter sends a signal via PLC (Power Line Communication) to the TS4-F units to keep PV modules connected while powered on. TS4-F units automatically enter rapid shutdown mode when the RSS Transmitter is switched off and resume energy production when power is restored to the RSS Transmitter. The RSS Transmitter with Pure Signal technology can link multiple RSS Transmitters together, enabling one coordinated keep-alive signal to the array to maximize signal integrity, even in large and complex solar installations.


SPECIFICATIONS

Model 492-00000-52
Series -
Manufacturer Tigo


GENERAL SPECIFICATION

Max String Voltage 1500 Volts DC
Max Number of Strings 10
Max Supported PV Modules per String 30


Warranty

  • 12 Years

* Refer to warranty document for terms and conditions
Documentation

Data Sheet

Detailed Information

TS4-F units automatically enter rapid shutdown mode when the RSS Transmitter is switched off and resume energy production when power is restored to the RSS Transmitter. This solution complies with NEC 690.12 specifications for 2014, 2017, and 2020 and uses PLC signaling for rapid shutdown.

The RSS Transmitter Outdoor Kit includes an RSS Transmitter, outdoor enclosure, 120/240VAC power supply, and one or two RSS Cores.
