Victron SmartSolar MPPT RS 450/100-MC4 SCC145110510 Charge Controller
SCC145110510
Victron SmartSolar MPPT RS 450/100-MC4 SCC145110510 Charge Controller

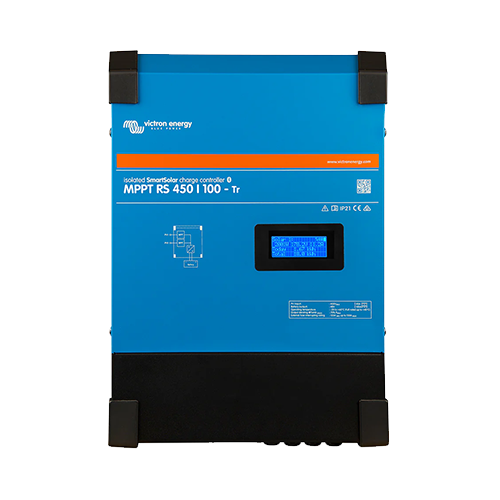

The Victron SmartSolar MPPT RS 450/100-MC4 (SCC145110510) is a high-voltage solar charge controller engineered to deliver exceptional performance in large-scale off-grid and hybrid power systems.
With a maximum 450V PV input and a 100A output current, it can support high-wattage solar arrays and efficiently charge 48V battery banks. Featuring advanced MPPT tracking, MC4-ready inputs, and multiple data communication options, the SmartSolar RS 450/100 is ideal for professional solar installations demanding power, safety, and precision control.
Key Benefits
Ultra-High PV Voltage Input: Accepts up to 450V DC, enabling longer string configurations and reduced cabling costs.
100A Charge Output: Supports large-capacity 48V battery banks with fast, efficient charging.
Integrated MC4 Connectors: Ensures quick, safe, and reliable PV input wiring with weather-resistant terminals.
Fan-Free Cooling Design: Passive cooling reduces maintenance and allows silent operation.
Remote Monitoring Ready: Built-in Bluetooth and VE.Can ports support VictronConnect and VRM Portal access.
Special Technology
Ultra-Fast MPPT Tracking: Increases energy harvest from solar panels by constantly optimizing power output—even in shading or partial sunlight conditions.
Dual Independent PV Inputs: Allows flexible configuration of multiple solar arrays with independent MPPT channels.
Galvanic Isolation: Enhanced safety and compatibility for large-scale installations with mixed equipment.
Wide Operating Range: Compatible with lithium, AGM, gel, and lead-acid batteries—fully programmable charging algorithms.
Professional Integration Support: VE.Can, VE.Direct, and digital inputs allow easy system expansion and automation.
Warranty
The Victron SCC145110510 SmartSolar MPPT RS 450/100-MC4 is backed by a 5-year limited warranty, guaranteeing long-lasting performance and system protection from a globally trusted solar brand.
Best Use
Off-Grid Solar Systems: Ideal for cabins, homes, and commercial setups requiring high PV input and fast battery charging.
Hybrid Energy Storage Systems: Works with inverter/chargers in solar + battery configurations.
Commercial Rooftop Installations: Supports large panel arrays with long string runs for cost-effective design.
Telecom, Industrial & Agricultural Applications: Reliable, programmable performance for demanding environments.
Specifications Table
| Specification | Data |
|---|---|
| Model | SCC145110510 |
| Product Name | SmartSolar MPPT RS 450/100-MC4 |
| Battery Voltage | 48V (nominal) |
| Max PV Open Circuit Voltage | 450V DC |
| Max PV Input Power | 5800W @ 48V |
| Max Charge Current | 100 Amps |
| Charge Stages | Bulk, Absorption, Float, Equalization |
| Battery Types Supported | LiFePO₄, Lead-acid (Gel, AGM, Flooded) |
| Number of MPPT Inputs | 2 (independent) |
| Communication Ports | VE.Can, VE.Direct, Bluetooth, Remote On/Off, Relay |
| PV Connections | MC4 (2 pairs) |
| Cooling | Passive (fan-free) |
| Protection Features | Overvoltage, Overtemp, Short Circuit, Reverse Polarity |
| Dimensions (L × W × H) | 20.6 × 10.0 × 5.5 in |
| Weight | ~17.4 lbs |
| Enclosure Rating | IP43 (electronics), IP22 (connections) |
| Certifications | CE, UL1741 SA, RoHS |
| Warranty | 5-Year Limited Warranty |
About Victron Energy:
Victron Energy, headquartered in the Netherlands, is a globally recognized leader in off-grid and battery-based power solutions.
The company specializes in high-efficiency inverters, solar charge controllers, battery monitors, and smart charging systems. Known for rugged design, field-proven reliability, and innovative connectivity features like Bluetooth Smart, Victron products are trusted in marine, automotive, RV, and renewable energy systems worldwide. Their commitment to performance, durability, and flexibility ensures optimal energy management for professional and personal energy needs.
